SDO HMI 2014-01-10 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.42 | 0.00 | 2.98 | -17.70 | 29.56 | -41.39 | 111.93 | 0.6812 | 642.0 | 555.6 | |
|
previous
or next observation for the same group /

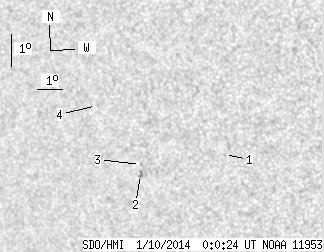

back to the solar disc SDO HMI 2014-01-10 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.55 | -17.62 | 32.58 | -38.37 | 112.88 | 0.6445 | 636.0 | 539.8 | |
| 0.00 | 2.55 | 0.00 | 1.73 | -18.07 | 29.04 | -41.91 | 112.26 | 0.6885 | 616.0 | 540.9 | |
| 0.00 | 0.51 | 0.00 | 0.35 | -17.77 | 29.13 | -41.82 | 111.86 | 0.6865 | 713.0 | 635.0 | |
| 0.00 | 0.51 | 0.00 | 0.35 | -15.92 | 27.80 | -43.14 | 108.84 | 0.6972 | 603.0 | 575.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
