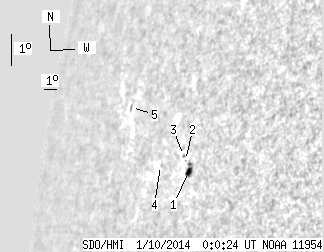

SDO HMI 2014-01-10 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.74 | 10.96 | 4.78 | 14.78 | 7.30 | 3.28 | -67.67 | 80.53 | 0.9311 | -258.2 | -207.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.40 | 7.14 | 4.34 | 9.11 | 6.80 | 4.48 | -66.47 | 80.90 | 0.9237 | -514.1 | -457.9 | |
| 0.00 | 0.59 | 0.00 | 0.77 | 7.15 | 4.15 | -66.79 | 80.57 | 0.9261 | -205.0 | -181.3 | |
| 0.34 | 1.19 | 0.44 | 1.56 | 7.31 | 3.95 | -66.99 | 80.42 | 0.9276 | -185.2 | -140.9 | |
| 0.00 | 0.51 | 0.00 | 0.72 | 7.13 | 2.17 | -68.78 | 80.85 | 0.9384 | 340.0 | 275.8 | |
| 0.00 | 1.53 | 0.00 | 2.62 | 9.10 | 358.74 | -72.21 | 79.22 | 0.9584 | 96.0 | 78.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
