SDO HMI 2014-01-10 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.50 | 64.82 | 22.98 | 48.94 | 16.78 | 24.96 | -44.89 | 63.56 | 0.7566 | 308.5 | 19.6 | |
|
previous
or next observation for the same group /

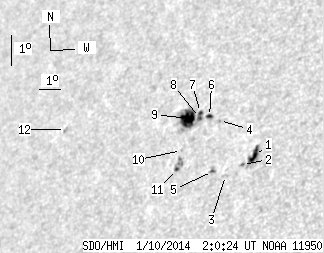

back to the solar disc SDO HMI 2014-01-10 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.54 | 11.39 | 4.70 | 8.18 | 16.00 | 27.56 | -42.29 | 63.32 | 0.7262 | -644.8 | -443.5 | |
| 0.34 | 1.36 | 0.25 | 0.98 | 15.74 | 27.13 | -42.72 | 63.86 | 0.7297 | -393.0 | -316.7 | |
| 0.00 | 1.02 | 0.00 | 0.74 | 15.43 | 26.49 | -43.36 | 64.56 | 0.7352 | -626.0 | -493.8 | |
| 0.00 | 1.02 | 0.00 | 0.76 | 17.19 | 25.74 | -44.11 | 62.70 | 0.7506 | 694.0 | 538.7 | |
| 0.68 | 2.46 | 0.50 | 1.81 | 15.59 | 25.90 | -43.95 | 64.64 | 0.7421 | -540.4 | -229.2 | |
| 1.70 | 2.55 | 1.28 | 1.92 | 17.34 | 25.26 | -44.59 | 62.74 | 0.7561 | 724.9 | 569.5 | |
| 1.19 | 35.26 | 0.90 | 27.01 | 17.49 | 24.82 | -45.03 | 62.76 | 0.7612 | 669.1 | 371.6 | |
| 1.19 | -7.00 | 0.90 | -7.00 | 17.34 | 24.83 | -45.02 | 62.96 | 0.7605 | 780.6 | 999999 | |
| 17.76 | -7.00 | 13.61 | -7.00 | 17.33 | 24.30 | -45.55 | 63.20 | 0.7658 | 770.3 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.45 | 16.33 | 24.35 | -45.50 | 64.42 | 0.7613 | -424.0 | -339.1 | |
| 1.10 | 7.90 | 0.84 | 5.99 | 15.73 | 24.30 | -45.55 | 65.17 | 0.7594 | -641.2 | -475.1 | |
| 0.00 | 1.27 | 0.00 | 1.10 | 17.30 | 18.61 | -51.24 | 65.54 | 0.8202 | 602.0 | 431.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
