SDO HMI 2014-01-10 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.43 | 31.02 | 3.01 | 17.08 | -12.89 | 44.61 | -24.69 | 111.48 | 0.4394 | -272.7 | -260.6 | |
|
previous
or next observation for the same group /

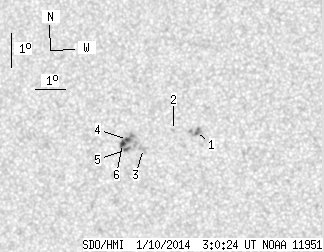

back to the solar disc SDO HMI 2014-01-10 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.46 | 0.00 | 3.51 | -12.65 | 46.34 | -22.97 | 112.16 | 0.4129 | 965.0 | 798.7 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -12.60 | 45.62 | -23.69 | 111.52 | 0.4233 | 691.0 | 541.9 | |
| 0.00 | 5.10 | 0.00 | 2.81 | -13.10 | 44.57 | -24.74 | 111.90 | 0.4411 | -654.0 | -555.2 | |
| 1.78 | 18.27 | 0.99 | 10.11 | -12.82 | 44.06 | -25.24 | 110.95 | 0.4471 | -1003.9 | -741.3 | |
| 1.02 | -4.00 | 0.56 | -4.00 | -13.12 | 44.00 | -25.31 | 111.54 | 0.4495 | -806.2 | 999999 | |
| 2.63 | -4.00 | 1.46 | -4.00 | -12.93 | 43.88 | -25.42 | 111.08 | 0.4503 | -819.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
