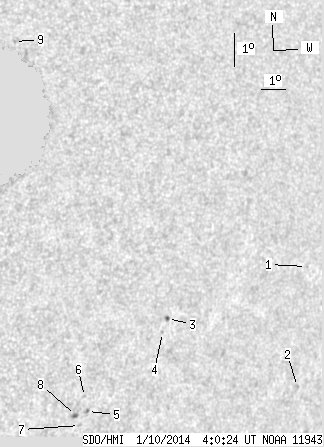

SDO HMI 2014-01-10 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 13.92 | 1.04 | 9.68 | -15.45 | 112.32 | 43.56 | 251.89 | 0.7004 | -232.3 | -241.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.85 | -12.34 | 118.44 | 49.68 | 257.25 | 0.7660 | 433.0 | 369.9 | |
| 0.00 | 1.87 | 0.00 | 1.47 | -15.93 | 119.09 | 50.33 | 252.71 | 0.7775 | 556.0 | 444.9 | |
| 0.76 | 1.78 | 0.53 | 1.24 | -14.19 | 112.72 | 43.96 | 253.82 | 0.7031 | -712.7 | -625.7 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -14.61 | 112.61 | 43.85 | 253.20 | 0.7027 | -556.0 | -420.7 | |
| 0.00 | 1.95 | 0.00 | 1.31 | -17.12 | 110.13 | 41.37 | 248.95 | 0.6792 | -632.0 | -566.7 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -16.68 | 109.89 | 41.13 | 249.52 | 0.6750 | -652.0 | -554.3 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -17.56 | 109.92 | 41.16 | 248.26 | 0.6779 | -614.0 | -454.2 | |
| 0.76 | 2.97 | 0.51 | 1.99 | -17.26 | 109.67 | 40.92 | 248.60 | 0.6741 | -792.9 | -638.7 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -6.26 | 105.46 | 36.70 | 264.95 | 0.5987 | 379.0 | 333.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
