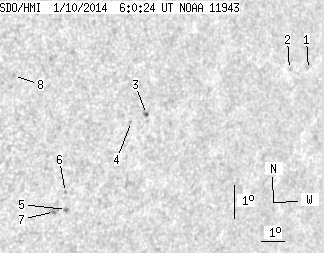

SDO HMI 2014-01-10 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.68 | 12.18 | 0.48 | 8.47 | -15.38 | 111.55 | 43.88 | 252.00 | 0.7042 | -459.5 | -444.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.34 | -12.46 | 119.74 | 52.08 | 257.36 | 0.7917 | 350.0 | 401.0 | |
| 0.00 | 1.19 | 0.00 | 0.94 | -12.51 | 118.83 | 51.16 | 257.20 | 0.7821 | 295.0 | 359.4 | |
| 0.68 | 2.30 | 0.48 | 1.62 | -14.17 | 112.74 | 45.07 | 254.09 | 0.7162 | -772.8 | -681.5 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -14.41 | 112.16 | 44.49 | 253.63 | 0.7097 | -708.0 | -624.5 | |
| 0.00 | 1.79 | 0.00 | 1.22 | -17.17 | 110.14 | 42.47 | 249.24 | 0.6923 | -689.0 | -558.0 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -16.66 | 109.96 | 42.29 | 249.91 | 0.6888 | -685.0 | -625.8 | |
| 0.00 | 3.91 | 0.00 | 2.66 | -17.25 | 109.66 | 41.99 | 248.97 | 0.6869 | -753.0 | -603.8 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -13.25 | 107.07 | 39.40 | 254.14 | 0.6446 | -563.0 | -526.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
