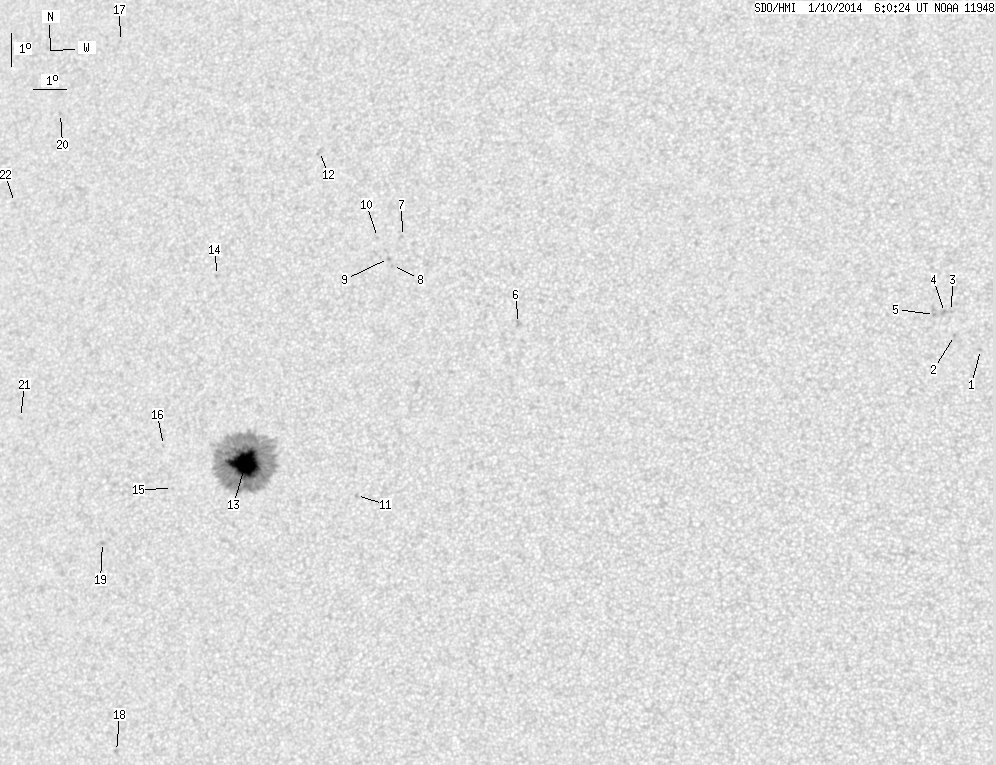

SDO HMI 2014-01-10 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.35 | 314.67 | 23.70 | 172.15 | 5.90 | 44.90 | -22.77 | 65.83 | 0.4244 | -919.2 | -392.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | 8.56 | 66.89 | -0.78 | 3.54 | 0.2199 | -877.0 | -615.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 8.99 | 66.11 | -1.56 | 6.79 | 0.2283 | -954.0 | -808.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.72 | 66.02 | -1.65 | 6.80 | 0.2408 | -896.0 | -678.3 | |
| 0.00 | 2.64 | 0.00 | 1.34 | 9.69 | 65.81 | -1.86 | 7.67 | 0.2408 | -1013.0 | -803.6 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 9.63 | 65.51 | -2.16 | 8.93 | 0.2405 | -992.0 | -824.9 | |
| 0.00 | 2.64 | 0.00 | 1.39 | 9.50 | 52.91 | -14.75 | 47.26 | 0.3436 | -950.0 | -721.4 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 12.24 | 49.12 | -18.55 | 48.29 | 0.4182 | -813.0 | -671.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 11.36 | 48.86 | -18.80 | 50.33 | 0.4123 | -805.0 | -656.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 11.58 | 48.72 | -18.95 | 50.13 | 0.4162 | -864.0 | -794.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 12.23 | 48.32 | -19.34 | 49.50 | 0.4276 | -773.0 | -602.2 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 4.45 | 48.06 | -19.61 | 66.75 | 0.3658 | -879.0 | -570.0 | |
| 0.00 | 3.15 | 0.00 | 1.77 | 14.95 | 46.20 | -21.47 | 47.78 | 0.4794 | -575.0 | -504.3 | |
| 43.35 | 283.07 | 23.70 | 154.81 | 5.50 | 44.49 | -23.18 | 67.75 | 0.4251 | -1454.8 | -411.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 11.21 | 43.21 | -24.46 | 57.66 | 0.4827 | -547.0 | -452.9 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 4.83 | 42.14 | -25.53 | 71.04 | 0.4559 | 706.0 | 596.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 6.12 | 41.79 | -25.88 | 68.65 | 0.4679 | -573.0 | -524.4 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 18.65 | 38.90 | -28.77 | 50.37 | 0.5944 | 594.0 | 536.9 | |
| 0.00 | 2.47 | 0.00 | 1.37 | -2.90 | 40.35 | -27.32 | 88.47 | 0.4605 | 661.0 | 484.5 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 3.29 | 39.88 | -27.79 | 75.57 | 0.4826 | 877.0 | 735.8 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 16.44 | 37.15 | -30.51 | 55.02 | 0.5966 | 737.0 | 538.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 7.13 | 36.89 | -30.77 | 70.06 | 0.5422 | 644.0 | 552.5 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 13.71 | 35.95 | -31.72 | 60.00 | 0.5920 | 684.0 | 527.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
