SDO HMI 2014-01-10 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 18.22 | 1.26 | 12.62 | -15.24 | 110.64 | 43.52 | 252.33 | 0.7011 | -417.0 | -293.5 | |
|
previous
or next observation for the same group /

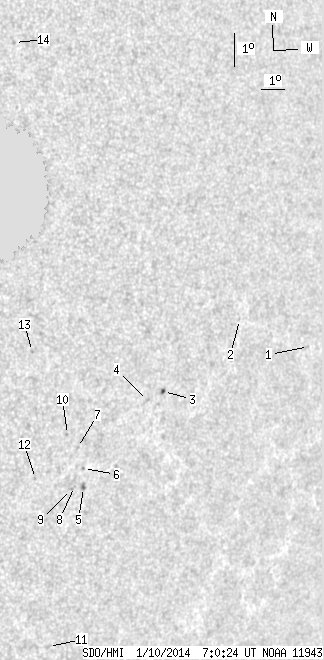

back to the solar disc SDO HMI 2014-01-10 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.68 | -12.50 | 119.02 | 51.89 | 257.29 | 0.7898 | 471.0 | 416.0 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -11.87 | 115.58 | 48.46 | 257.73 | 0.7520 | -551.0 | -477.8 | |
| 1.19 | 2.13 | 0.85 | 1.52 | -14.18 | 112.76 | 45.64 | 254.19 | 0.7228 | -726.5 | -651.5 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -14.48 | 112.15 | 45.02 | 253.65 | 0.7162 | -663.0 | -614.6 | |
| 0.60 | 2.72 | 0.41 | 1.88 | -17.21 | 110.15 | 43.03 | 249.35 | 0.6990 | -604.1 | -514.2 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -16.64 | 109.99 | 42.87 | 250.10 | 0.6956 | -654.0 | -572.9 | |
| 0.00 | 1.19 | 0.00 | 0.81 | -16.02 | 109.57 | 42.45 | 250.87 | 0.6891 | -559.0 | -470.8 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -17.20 | 109.77 | 42.65 | 249.25 | 0.6944 | -556.0 | -533.7 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -17.29 | 109.67 | 42.55 | 249.09 | 0.6935 | -735.0 | -633.3 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -15.65 | 109.06 | 41.94 | 251.26 | 0.6820 | -631.0 | -492.3 | |
| 0.00 | 2.21 | 0.00 | 1.56 | -22.11 | 110.29 | 43.16 | 242.67 | 0.7158 | 86.0 | 178.2 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -17.03 | 108.10 | 40.98 | 248.98 | 0.6741 | -640.0 | -494.8 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -13.24 | 107.11 | 39.99 | 254.32 | 0.6521 | -767.0 | -595.5 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -4.14 | 105.29 | 38.17 | 268.47 | 0.6189 | 722.0 | 516.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
