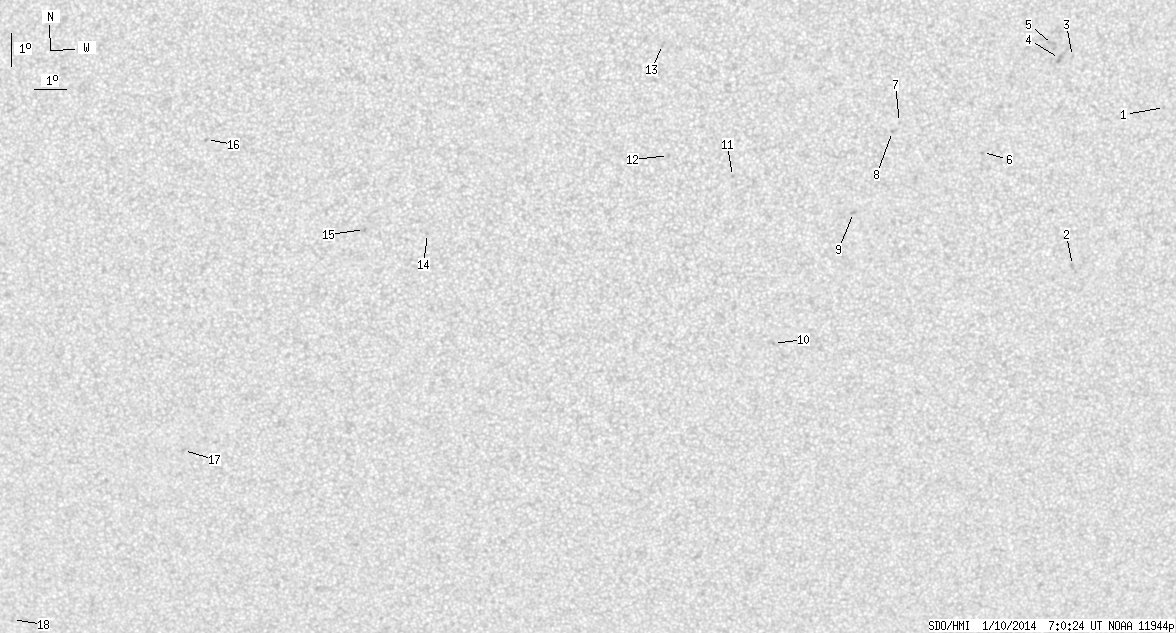

SDO HMI 2014-01-10 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.52 | 0.00 | 14.86 | -17.07 | 71.38 | 4.26 | 201.09 | 0.2987 | -187.3 | -261.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | -14.56 | 84.21 | 17.09 | 236.91 | 0.3410 | 695.0 | 593.3 | |
| 0.00 | 2.04 | 0.00 | 1.08 | -19.39 | 81.67 | 14.55 | 221.64 | 0.3582 | 818.0 | 631.9 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -13.09 | 81.21 | 14.09 | 236.15 | 0.2868 | -634.0 | -528.5 | |
| 0.00 | 2.98 | 0.00 | 1.54 | -13.15 | 80.81 | 13.69 | 235.22 | 0.2818 | -881.0 | -785.9 | |
| 0.00 | 4.25 | 0.00 | 2.19 | -12.74 | 80.57 | 13.44 | 236.03 | 0.2747 | -824.0 | -693.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -16.00 | 78.57 | 11.44 | 222.47 | 0.2837 | 456.0 | 449.5 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -15.13 | 75.94 | 8.82 | 217.51 | 0.2442 | 765.0 | 530.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -15.40 | 75.74 | 8.62 | 216.18 | 0.2458 | 835.0 | 626.2 | |
| 0.00 | 1.96 | 0.00 | 1.01 | -17.86 | 74.63 | 7.50 | 207.47 | 0.2707 | 903.0 | 697.3 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -21.89 | 72.26 | 5.14 | 195.17 | 0.3190 | 800.0 | 633.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -16.79 | 70.84 | 3.72 | 195.72 | 0.2301 | -861.0 | -628.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -16.16 | 68.86 | 1.74 | 187.92 | 0.2127 | -842.0 | -656.7 | |
| 0.00 | 2.38 | 0.00 | 1.19 | -12.83 | 68.66 | 1.54 | 189.73 | 0.1555 | -688.0 | -608.9 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -18.50 | 61.38 | -5.74 | 159.20 | 0.2683 | -764.0 | -633.2 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -18.36 | 59.42 | -7.71 | 152.79 | 0.2796 | -803.0 | -653.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -15.57 | 54.62 | -12.50 | 133.97 | 0.2910 | -914.0 | -713.8 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -25.12 | 53.02 | -14.10 | 148.59 | 0.4251 | -760.0 | -694.2 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -30.43 | 46.14 | -20.98 | 145.44 | 0.5464 | -672.0 | -593.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
