SDO HMI 2014-01-10 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.33 | 616.23 | 89.86 | 380.90 | 9.02 | 100.89 | 34.31 | 291.18 | 0.5986 | 151.5 | 128.9 | |
|
previous
or next observation for the same group /

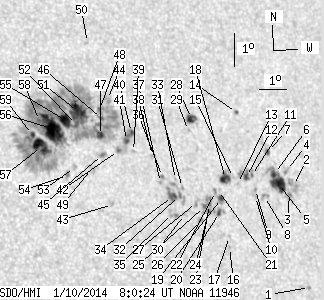

back to the solar disc SDO HMI 2014-01-10 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.91 | 5.01 | 107.99 | 41.41 | 282.00 | 0.6760 | -721.0 | -580.0 | |
| 0.00 | 8.76 | 0.00 | 5.90 | 8.05 | 107.67 | 41.09 | 286.48 | 0.6811 | -189.0 | -86.8 | |
| 0.60 | 4.00 | 0.40 | 2.68 | 7.77 | 107.48 | 40.90 | 286.16 | 0.6778 | -550.4 | -472.9 | |
| 0.00 | 2.47 | 0.00 | 1.66 | 8.49 | 107.45 | 40.87 | 287.20 | 0.6798 | -419.0 | -331.1 | |
| 15.13 | 27.46 | 10.11 | 18.35 | 8.08 | 107.08 | 40.50 | 286.75 | 0.6739 | -840.6 | -548.2 | |
| 4.08 | -5.00 | 2.73 | -5.00 | 8.38 | 106.96 | 40.38 | 287.23 | 0.6735 | -771.2 | 999999 | |
| 1.62 | 2.81 | 1.08 | 1.87 | 9.04 | 106.78 | 40.20 | 288.24 | 0.6735 | -655.9 | -509.4 | |
| 0.00 | 3.83 | 0.00 | 2.53 | 7.67 | 106.49 | 39.91 | 286.38 | 0.6651 | -829.0 | -704.1 | |
| 0.00 | 1.02 | 0.00 | 0.67 | 7.86 | 106.16 | 39.58 | 286.80 | 0.6616 | -634.0 | -561.9 | |
| 0.00 | 1.19 | 0.00 | 0.78 | 7.65 | 106.14 | 39.56 | 286.50 | 0.6606 | -325.0 | -433.1 | |
| 0.51 | 11.48 | 0.34 | 7.54 | 8.28 | 106.05 | 39.48 | 287.45 | 0.6618 | -649.0 | -630.8 | |
| 2.38 | -11.00 | 1.56 | -11.00 | 8.24 | 105.86 | 39.28 | 287.47 | 0.6592 | -859.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 8.01 | 105.48 | 38.90 | 287.29 | 0.6537 | -568.0 | -549.8 | |
| 0.68 | 1.70 | 0.45 | 1.12 | 10.17 | 105.73 | 39.15 | 290.32 | 0.6651 | -505.9 | -447.2 | |
| 0.00 | 1.53 | 0.00 | 1.00 | 8.19 | 105.35 | 38.77 | 287.61 | 0.6526 | -545.0 | -429.3 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 6.07 | 104.98 | 38.40 | 284.58 | 0.6406 | -622.0 | -546.0 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 6.40 | 105.01 | 38.43 | 285.07 | 0.6420 | -517.0 | -447.1 | |
| 6.89 | 10.80 | 4.47 | 7.01 | 8.14 | 105.04 | 38.46 | 287.67 | 0.6485 | -860.8 | -532.9 | |
| 2.30 | 5.02 | 1.48 | 3.24 | 7.53 | 104.82 | 38.24 | 286.85 | 0.6435 | -847.4 | -652.2 | |
| 1.79 | 6.38 | 1.15 | 4.10 | 7.10 | 104.70 | 38.12 | 286.26 | 0.6404 | -740.7 | -599.2 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 7.77 | 104.73 | 38.15 | 287.25 | 0.6432 | -308.0 | -426.2 | |
| 0.00 | 2.55 | 0.00 | 1.64 | 7.73 | 104.61 | 38.03 | 287.24 | 0.6416 | -750.0 | -570.0 | |
| 0.60 | 13.52 | 0.38 | 8.65 | 7.33 | 104.34 | 37.76 | 286.75 | 0.6366 | -917.9 | -775.0 | |
| 0.85 | -23.00 | 0.54 | -23.00 | 7.12 | 104.28 | 37.71 | 286.45 | 0.6351 | -815.8 | 999999 | |
| 1.02 | -23.00 | 0.65 | -23.00 | 7.26 | 104.15 | 37.57 | 286.73 | 0.6339 | -903.2 | 999999 | |
| 0.43 | 2.38 | 0.27 | 1.51 | 6.83 | 103.96 | 37.38 | 286.15 | 0.6298 | -774.6 | -682.7 | |
| 0.00 | 3.57 | 0.00 | 2.27 | 7.37 | 103.86 | 37.28 | 287.02 | 0.6305 | -801.0 | -663.1 | |
| 5.27 | 7.48 | 3.40 | 4.82 | 9.91 | 103.97 | 37.39 | 290.79 | 0.6422 | 798.6 | 526.4 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 9.54 | 103.81 | 37.23 | 290.32 | 0.6386 | 410.0 | 382.2 | |
| 0.00 | 2.04 | 0.00 | 1.29 | 6.99 | 103.37 | 36.79 | 286.64 | 0.6228 | -716.0 | -614.9 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 7.80 | 103.38 | 36.80 | 287.89 | 0.6260 | -586.0 | -433.1 | |
| 0.68 | 20.23 | 0.43 | 12.76 | 7.55 | 103.24 | 36.66 | 287.57 | 0.6232 | -782.6 | -709.5 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 8.03 | 103.14 | 36.57 | 288.35 | 0.6238 | -407.0 | -386.7 | |
| 4.51 | -32.00 | 2.84 | -32.00 | 7.51 | 102.98 | 36.40 | 287.63 | 0.6196 | -1006.7 | 999999 | |
| 0.00 | 5.19 | 0.00 | 3.26 | 7.00 | 102.93 | 36.35 | 286.85 | 0.6170 | -424.0 | -683.2 | |
| 0.00 | 1.79 | 0.00 | 1.12 | 8.10 | 102.67 | 36.09 | 288.69 | 0.6179 | -759.0 | -703.7 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 7.92 | 102.58 | 36.00 | 288.44 | 0.6160 | -905.0 | -722.8 | |
| 0.00 | 2.04 | 0.00 | 1.28 | 8.72 | 102.37 | 35.79 | 289.79 | 0.6167 | -685.0 | -606.8 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 8.81 | 101.68 | 35.10 | 290.29 | 0.6081 | -703.0 | -653.4 | |
| 1.45 | 14.88 | 0.90 | 9.25 | 9.39 | 101.67 | 35.10 | 291.19 | 0.6107 | -599.6 | -236.0 | |
| 1.79 | -40.00 | 1.11 | -40.00 | 9.14 | 101.46 | 34.88 | 290.91 | 0.6068 | -492.5 | 999999 | |
| 0.77 | -40.00 | 0.47 | -40.00 | 8.82 | 101.14 | 34.56 | 290.60 | 0.6011 | 610.4 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.09 | 7.18 | 100.76 | 34.18 | 288.16 | 0.5888 | -760.0 | -613.9 | |
| 0.00 | 4.76 | 0.00 | 2.96 | 10.36 | 100.92 | 34.34 | 293.12 | 0.6056 | -217.0 | -154.1 | |
| 0.51 | 3.15 | 0.31 | 1.93 | 8.68 | 100.54 | 33.96 | 290.69 | 0.5926 | 625.3 | 284.8 | |
| 0.60 | 420.29 | 0.37 | 254.82 | 9.77 | 100.63 | 34.05 | 292.37 | 0.5990 | 549.3 | 377.1 | |
| 4.00 | -46.00 | 2.46 | -46.00 | 9.25 | 100.53 | 33.95 | 291.61 | 0.5952 | 768.4 | 999999 | |
| 0.68 | -46.00 | 0.42 | -46.00 | 10.04 | 100.59 | 34.01 | 292.82 | 0.5998 | 549.4 | 999999 | |
| 0.00 | 4.59 | 0.00 | 2.80 | 8.24 | 100.10 | 33.52 | 290.22 | 0.5847 | 275.0 | 333.4 | |
| 0.00 | 1.28 | 0.00 | 0.79 | 12.08 | 100.43 | 33.85 | 296.05 | 0.6085 | 610.0 | 505.3 | |
| 20.15 | -46.00 | 12.32 | -46.00 | 9.95 | 99.78 | 33.21 | 293.16 | 0.5889 | 830.9 | 999999 | |
| 2.21 | -46.00 | 1.35 | -46.00 | 9.55 | 99.70 | 33.12 | 292.57 | 0.5858 | 837.0 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.65 | 8.24 | 99.50 | 32.92 | 290.58 | 0.5767 | 659.0 | 496.0 | |
| 0.00 | 3.06 | 0.00 | 1.84 | 7.99 | 99.22 | 32.65 | 290.32 | 0.5718 | 780.0 | 638.7 | |
| 10.29 | -46.00 | 6.25 | -46.00 | 9.66 | 99.32 | 32.74 | 292.98 | 0.5814 | 937.1 | 999999 | |
| 34.00 | -46.00 | 20.52 | -46.00 | 9.40 | 98.80 | 32.22 | 292.88 | 0.5731 | 1078.8 | 999999 | |
| 15.22 | -46.00 | 9.11 | -46.00 | 8.84 | 98.39 | 31.81 | 292.22 | 0.5648 | 1096.7 | 999999 | |
| 1.45 | -46.00 | 0.87 | -46.00 | 9.62 | 98.40 | 31.82 | 293.51 | 0.5691 | 1102.9 | 999999 | |
| 1.87 | -46.00 | 1.12 | -46.00 | 9.19 | 98.11 | 31.53 | 292.98 | 0.5629 | 1056.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
