SDO HMI 2014-01-10 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.90 | 0.00 | 10.57 | -14.02 | 111.15 | 45.12 | 254.42 | 0.7167 | -268.2 | -322.3 | |
|
previous
or next observation for the same group /

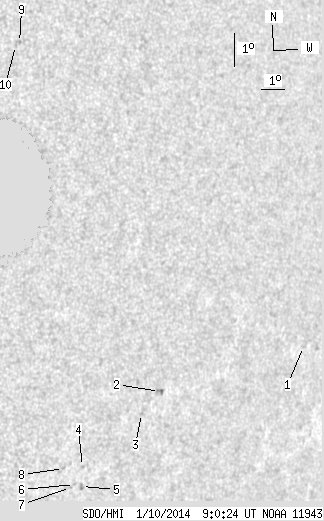

back to the solar disc SDO HMI 2014-01-10 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.19 | -12.51 | 119.02 | 52.99 | 257.39 | 0.8011 | 479.0 | 357.5 | |
| 0.00 | 3.49 | 0.00 | 2.54 | -14.19 | 112.69 | 46.66 | 254.36 | 0.7345 | -642.0 | -631.7 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -14.88 | 112.08 | 46.05 | 253.30 | 0.7287 | -362.0 | -360.0 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -16.59 | 109.99 | 43.96 | 250.47 | 0.7082 | -463.0 | -493.3 | |
| 0.00 | 2.55 | 0.00 | 1.79 | -17.19 | 110.13 | 44.09 | 249.67 | 0.7112 | -626.0 | -519.2 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -17.15 | 109.81 | 43.78 | 249.65 | 0.7075 | -663.0 | -595.5 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -17.25 | 109.67 | 43.64 | 249.48 | 0.7061 | -755.0 | -637.4 | |
| 0.00 | 1.19 | 0.00 | 0.82 | -16.69 | 109.21 | 43.18 | 250.13 | 0.6993 | -720.0 | -585.1 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -4.15 | 105.42 | 39.39 | 268.42 | 0.6354 | 490.0 | 512.5 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -4.24 | 105.27 | 39.24 | 268.27 | 0.6334 | 580.0 | 458.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
