SDO HMI 2014-01-10 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.21 | 0.00 | 9.49 | -14.94 | 111.31 | 45.82 | 253.19 | 0.7263 | -383.3 | -393.0 | |
|
previous
or next observation for the same group /

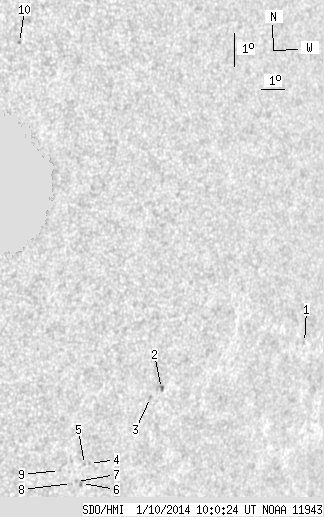

back to the solar disc SDO HMI 2014-01-10 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.92 | -12.47 | 119.13 | 53.64 | 257.50 | 0.8076 | 468.0 | 379.8 | |
| 0.00 | 2.55 | 0.00 | 1.88 | -14.19 | 112.77 | 47.28 | 254.48 | 0.7416 | -596.0 | -597.6 | |
| 0.00 | 1.28 | 0.00 | 0.93 | -14.48 | 112.36 | 46.87 | 254.01 | 0.7374 | -751.0 | -667.6 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -16.58 | 110.27 | 44.78 | 250.70 | 0.7177 | -490.0 | -426.8 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -16.62 | 110.06 | 44.57 | 250.59 | 0.7154 | -670.0 | -537.8 | |
| 0.00 | 2.21 | 0.00 | 1.57 | -17.20 | 110.10 | 44.62 | 249.81 | 0.7172 | -642.0 | -550.7 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -17.15 | 109.87 | 44.38 | 249.82 | 0.7145 | -634.0 | -536.2 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -17.22 | 109.68 | 44.19 | 249.67 | 0.7124 | -730.0 | -650.0 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -16.85 | 109.05 | 43.57 | 250.00 | 0.7043 | -589.0 | -519.9 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -4.24 | 105.34 | 39.85 | 268.25 | 0.6417 | 801.0 | 699.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
