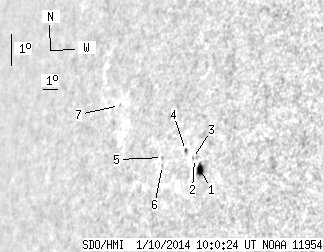

SDO HMI 2014-01-10 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.76 | 13.78 | 4.96 | 14.85 | 7.16 | 3.74 | -61.74 | 79.78 | 0.8894 | -225.9 | -133.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.25 | 8.33 | 4.41 | 8.65 | 6.76 | 4.86 | -60.63 | 80.04 | 0.8806 | -629.7 | -449.5 | |
| 0.00 | 0.34 | 0.00 | 0.36 | 7.12 | 4.41 | -61.08 | 79.72 | 0.8847 | -252.0 | -301.0 | |
| 0.00 | 0.60 | 0.00 | 0.63 | 7.12 | 4.29 | -61.20 | 79.73 | 0.8857 | -104.0 | -142.0 | |
| 0.51 | 1.79 | 0.55 | 1.92 | 7.40 | 3.78 | -61.71 | 79.51 | 0.8900 | -181.8 | -169.9 | |
| 0.00 | 0.85 | 0.00 | 0.96 | 7.28 | 2.32 | -63.17 | 79.87 | 0.9010 | 341.0 | 347.4 | |
| 0.00 | 0.68 | 0.00 | 0.77 | 7.04 | 2.38 | -63.11 | 80.13 | 0.9003 | 284.0 | 338.8 | |
| 0.00 | 1.19 | 0.00 | 1.56 | 9.08 | 358.69 | -66.79 | 78.48 | 0.9279 | 358.0 | 271.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
