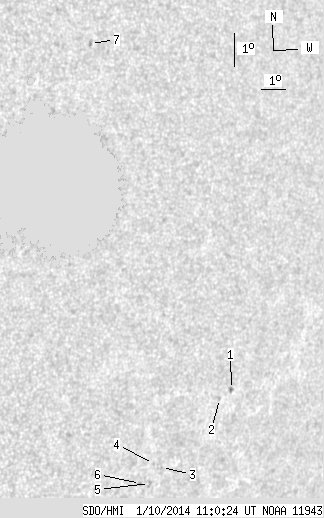

SDO HMI 2014-01-10 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.68 | 10.13 | 0.51 | 7.20 | -14.22 | 110.25 | 45.31 | 254.26 | 0.7200 | -379.1 | -378.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.68 | 1.79 | 0.51 | 1.33 | -14.19 | 112.85 | 47.91 | 254.59 | 0.7487 | -727.4 | -641.2 | |
| 0.00 | 1.53 | 0.00 | 1.13 | -14.48 | 112.39 | 47.45 | 254.11 | 0.7440 | -746.0 | -659.8 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -16.67 | 110.44 | 45.50 | 250.76 | 0.7261 | -440.0 | -417.1 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -16.56 | 110.06 | 45.12 | 250.81 | 0.7215 | -422.0 | -428.8 | |
| 0.00 | 2.30 | 0.00 | 1.64 | -17.17 | 110.07 | 45.13 | 249.98 | 0.7230 | -516.0 | -523.7 | |
| 0.00 | 1.19 | 0.00 | 0.84 | -17.19 | 109.68 | 44.74 | 249.85 | 0.7186 | -738.0 | -657.9 | |
| 0.00 | 1.62 | 0.00 | 1.05 | -4.25 | 105.37 | 40.43 | 268.23 | 0.6494 | 765.0 | 632.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
