SDO HMI 2014-01-10 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.14 | 0.00 | 13.91 | -19.90 | 65.78 | 0.84 | 192.06 | 0.3530 | -372.8 | -279.7 | |
|
previous
or next observation for the same group /

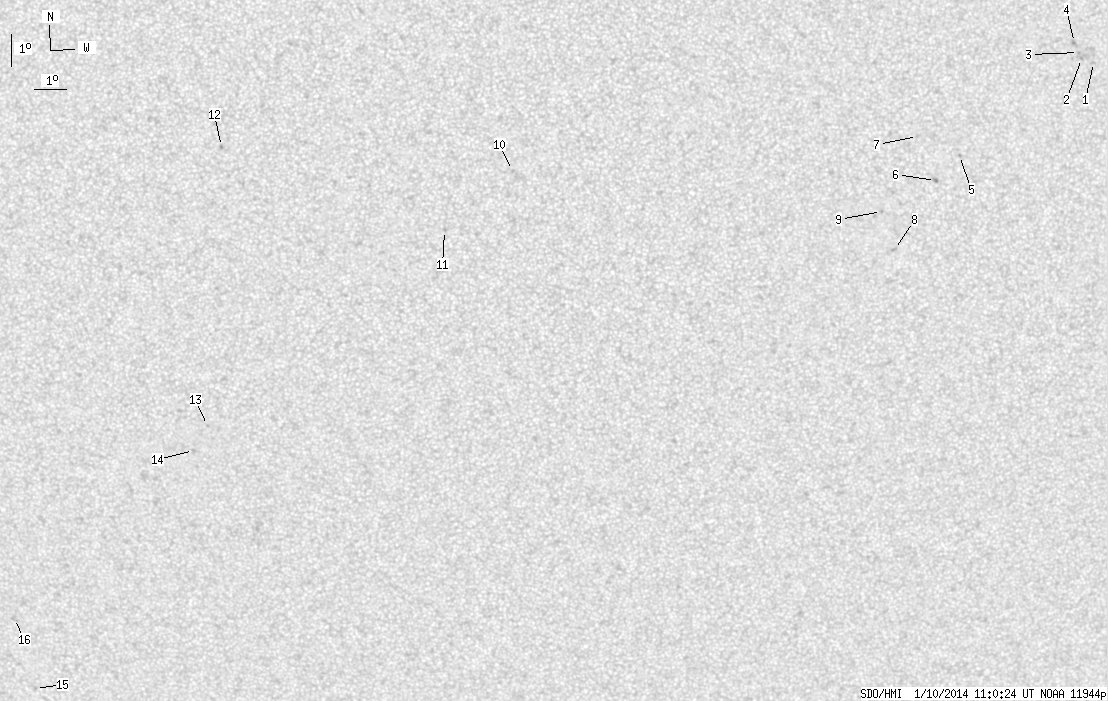

back to the solar disc SDO HMI 2014-01-10 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.02 | -13.20 | 81.32 | 16.38 | 239.53 | 0.3200 | -771.0 | -545.1 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -13.09 | 80.94 | 16.00 | 239.28 | 0.3136 | -869.0 | -683.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -12.91 | 80.83 | 15.89 | 239.63 | 0.3107 | -972.0 | -847.6 | |
| 0.00 | 1.79 | 0.00 | 0.93 | -12.62 | 80.69 | 15.75 | 240.27 | 0.3064 | -880.0 | -781.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -16.06 | 77.29 | 12.35 | 224.49 | 0.2947 | -744.0 | -579.8 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -16.82 | 76.59 | 11.65 | 221.02 | 0.2958 | 972.0 | 817.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -15.50 | 75.95 | 11.01 | 222.69 | 0.2726 | 840.0 | 649.1 | |
| 0.00 | 2.13 | 0.00 | 1.11 | -18.93 | 75.42 | 10.48 | 213.75 | 0.3112 | 647.0 | 554.6 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -17.78 | 74.95 | 10.01 | 214.80 | 0.2912 | 796.0 | 679.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -16.58 | 63.49 | -1.46 | 173.59 | 0.2191 | -724.0 | -564.4 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -18.39 | 61.35 | -3.59 | 166.51 | 0.2557 | -844.0 | -676.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.78 | 54.52 | -10.42 | 139.56 | 0.2695 | -1054.0 | -822.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -24.34 | 53.45 | -11.49 | 152.45 | 0.3940 | -837.0 | -712.8 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -25.12 | 52.91 | -12.03 | 152.38 | 0.4088 | -834.0 | -607.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -32.75 | 46.20 | -18.74 | 150.78 | 0.5558 | -32.0 | -47.2 | |
| 0.00 | 3.32 | 0.00 | 1.93 | -30.41 | 45.93 | -19.01 | 147.85 | 0.5302 | -658.0 | -549.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
