SDO HMI 2014-01-10 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.80 | 87.67 | 21.40 | 61.13 | 16.79 | 24.93 | -40.01 | 61.06 | 0.7054 | 88.9 | 174.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

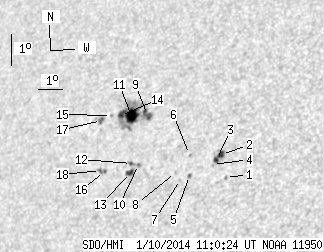

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.83 | 15.17 | 28.55 | -36.39 | 61.10 | 0.6564 | 512.0 | 394.6 | |
| 3.15 | 7.57 | 2.08 | 5.00 | 15.90 | 28.25 | -36.69 | 60.28 | 0.6641 | -836.6 | -654.6 | |
| 1.87 | -2.00 | 1.24 | -2.00 | 15.75 | 28.09 | -36.86 | 60.59 | 0.6650 | -865.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 15.60 | 27.96 | -36.98 | 60.87 | 0.6656 | -624.0 | -525.8 | |
| 0.51 | 1.62 | 0.34 | 1.08 | 15.30 | 27.14 | -37.80 | 61.78 | 0.6733 | -654.7 | -554.8 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 15.96 | 27.00 | -37.94 | 60.97 | 0.6785 | -519.0 | -378.6 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 15.19 | 26.81 | -38.13 | 62.12 | 0.6764 | -639.0 | -579.9 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 15.42 | 26.57 | -38.37 | 61.95 | 0.6804 | -539.0 | -474.1 | |
| 5.10 | 54.74 | 3.56 | 38.59 | 17.31 | 25.00 | -39.94 | 60.36 | 0.7075 | 864.4 | 425.2 | |
| 0.43 | 4.76 | 0.29 | 3.30 | 15.74 | 25.03 | -39.91 | 62.39 | 0.6992 | -657.6 | -491.5 | |
| 11.48 | -9.00 | 8.09 | -9.00 | 17.31 | 24.35 | -40.59 | 60.72 | 0.7145 | 908.1 | 999999 | |
| 0.77 | -10.00 | 0.53 | -10.00 | 15.79 | 24.74 | -40.20 | 62.49 | 0.7027 | -596.9 | 999999 | |
| 2.81 | 4.34 | 1.94 | 3.00 | 15.50 | 24.77 | -40.18 | 62.85 | 0.7010 | -761.1 | -574.7 | |
| 1.87 | -9.00 | 1.33 | -9.00 | 17.33 | 23.90 | -41.04 | 60.94 | 0.7194 | 546.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 17.35 | 23.52 | -41.42 | 61.12 | 0.7235 | 607.0 | 499.4 | |
| 0.51 | 3.91 | 0.36 | 2.76 | 15.59 | 23.69 | -41.25 | 63.30 | 0.7132 | -647.5 | -467.5 | |
| 1.62 | 4.25 | 1.16 | 3.06 | 17.21 | 23.14 | -41.80 | 61.50 | 0.7268 | 706.5 | 524.9 | |
| 0.68 | -16.00 | 0.48 | -16.00 | 15.63 | 23.52 | -41.42 | 63.34 | 0.7153 | -515.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
