groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11946 131.27 591.11 84.31 375.94 9.06 100.89 36.49 290.09 0.6270 158.5 128.5


previous   or   next   observation for the same group / back to the solar disc

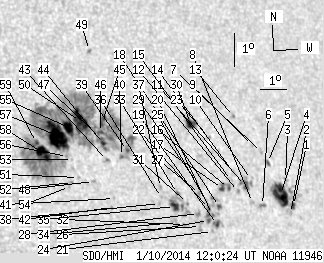

SDO HMI 2014-01-10 12:00:24 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 1.78 39.10 1.25 27.22 7.71 107.82 43.42 285.18 0.7082 -462.8 -223.0
2 0.00 1.19 0.00 0.83 7.46 107.66 43.27 284.89 0.7056 -155.0 -175.9
3 0.00 1.61 0.00 1.13 8.48 107.60 43.20 286.32 0.7079 -400.0 -311.7
4 20.91 -1.00 14.52 -1.00 8.02 107.33 42.93 285.77 0.7032 -829.1 999999
5 0.68 2.29 0.47 1.59 8.96 106.93 42.54 287.22 0.7015 -403.1 -325.5
6 0.00 3.23 0.00 2.21 7.65 106.55 42.16 285.53 0.6927 -742.0 -632.1
7 0.00 1.27 0.00 0.88 9.25 106.73 42.34 287.70 0.7001 -707.0 -539.2
8 0.00 2.04 0.00 1.39 7.72 106.16 41.76 285.77 0.6882 -702.0 -492.8
9 0.00 0.85 0.00 0.59 9.45 106.40 42.00 288.10 0.6968 -669.0 -550.7
10 0.00 1.78 0.00 1.22 8.41 106.21 41.81 286.73 0.6910 -403.0 -417.9
11 3.06 6.88 2.08 4.68 8.22 105.94 41.55 286.56 0.6872 -782.3 -613.6
12 0.00 1.53 0.00 1.03 8.03 105.64 41.24 286.40 0.6828 -686.0 -581.8
13 0.00 1.10 0.00 0.76 10.30 105.77 41.37 289.53 0.6924 -615.0 -528.6
14 0.00 0.25 0.00 0.17 8.65 105.48 41.09 287.34 0.6830 -383.0 -379.3
15 0.00 0.42 0.00 0.29 8.35 105.40 41.01 286.94 0.6810 -388.0 -413.8
16 0.51 7.05 0.34 4.73 8.10 105.25 40.86 286.65 0.6783 -735.5 -699.1
17 1.87 -16.00 1.25 -16.00 8.09 105.01 40.62 286.72 0.6753 -868.7 999999
18 1.02 2.63 0.68 1.75 7.54 104.83 40.43 286.00 0.6712 -815.2 -679.2
19 1.27 6.03 0.85 4.01 6.99 104.69 40.29 285.26 0.6677 -720.7 -519.3
20 0.34 14.36 0.23 9.52 7.28 104.53 40.13 285.74 0.6666 -805.5 -684.9
21 0.00 0.93 0.00 0.62 6.77 104.47 40.08 285.01 0.6643 -667.0 -540.4
22 0.59 -20.00 0.39 -20.00 7.46 104.43 40.03 286.04 0.6660 -919.3 999999
23 0.00 1.36 0.00 0.91 9.61 104.71 40.31 289.02 0.6771 471.0 358.8
24 0.85 -20.00 0.56 -20.00 7.09 104.35 39.96 285.54 0.6638 -852.1 999999
25 0.00 0.68 0.00 0.45 7.66 104.33 39.94 286.37 0.6655 -488.0 -432.1
26 0.00 3.99 0.00 2.62 6.90 104.02 39.62 285.37 0.6590 -658.0 -634.4
27 0.00 1.36 0.00 0.90 7.89 104.09 39.70 286.80 0.6632 -720.0 -557.4
28 0.00 2.72 0.00 1.79 7.29 103.98 39.59 285.96 0.6598 -784.0 -696.5
29 0.00 0.76 0.00 0.51 8.22 104.05 39.66 287.30 0.6639 -531.0 -415.2
30 5.95 8.75 3.96 5.83 10.01 104.02 39.63 289.88 0.6702 759.2 487.1
31 0.00 0.93 0.00 0.61 7.57 103.59 39.19 286.53 0.6558 -560.0 -515.3
32 0.00 1.19 0.00 0.77 6.93 103.41 39.01 285.65 0.6513 -646.0 -539.4
33 0.42 20.82 0.28 13.56 7.86 103.24 38.84 287.09 0.6524 -515.0 -638.3
34 0.00 4.08 0.00 2.64 6.98 103.07 38.67 285.85 0.6471 -663.0 -704.3
35 4.42 -33.00 2.87 -33.00 7.46 103.08 38.68 286.57 0.6489 -970.6 999999
36 0.00 0.85 0.00 0.55 7.71 102.61 38.22 287.14 0.6438 -692.0 -590.6
37 0.00 1.36 0.00 0.88 8.01 102.61 38.21 287.59 0.6449 -633.0 -579.3
38 0.00 1.02 0.00 0.66 7.52 102.51 38.12 286.90 0.6419 -639.0 -586.6
39 0.76 15.64 0.49 10.01 9.08 101.49 37.09 289.70 0.6349 -555.4 -278.2
40 0.34 -39.00 0.22 -39.00 8.88 101.24 36.84 289.53 0.6309 610.2 999999
41 0.00 1.02 0.00 0.64 7.60 100.84 36.44 287.75 0.6205 -618.0 -462.2
42 0.00 1.19 0.00 0.75 7.32 100.70 36.30 287.39 0.6176 -771.0 -634.4
43 0.00 2.12 0.00 1.34 8.74 100.70 36.31 289.57 0.6234 620.0 538.8
44 1.78 419.61 1.13 261.43 9.25 100.61 36.22 290.40 0.6245 730.5 341.9
45 3.40 -44.00 2.16 -44.00 9.92 100.66 36.26 291.38 0.6281 581.9 999999
46 1.53 -44.00 0.97 -44.00 9.58 100.54 36.15 290.93 0.6250 694.9 999999
47 0.85 -44.00 0.54 -44.00 9.40 100.52 36.12 290.67 0.6239 740.3 999999
48 0.00 1.27 0.00 0.80 8.08 100.11 35.72 288.85 0.6130 680.0 628.7
49 0.00 1.44 0.00 0.93 12.08 100.49 36.09 294.68 0.6363 711.0 574.5
50 20.31 -44.00 12.76 -44.00 9.88 99.84 35.45 291.77 0.6175 817.8 999999
51 0.00 0.68 0.00 0.42 8.18 99.57 35.18 289.27 0.6064 728.0 621.4
52 0.00 0.85 0.00 0.53 8.02 99.34 34.94 289.13 0.6026 735.0 658.6
53 0.00 0.51 0.00 0.32 8.72 99.41 35.01 290.19 0.6066 467.0 413.5
54 0.00 0.76 0.00 0.47 7.89 99.21 34.82 289.00 0.6004 707.0 563.1
55 9.77 -44.00 6.10 -44.00 9.68 99.37 34.98 291.72 0.6106 868.1 999999
56 0.00 1.61 0.00 1.00 8.80 99.24 34.84 290.42 0.6047 348.0 319.7
57 34.42 -44.00 21.33 -44.00 9.42 98.91 34.51 291.57 0.6033 1031.2 999999
58 13.34 -44.00 8.20 -44.00 8.86 98.37 33.98 290.98 0.5937 1107.9 999999
59 1.10 -44.00 0.68 -44.00 9.18 98.15 33.76 291.61 0.5924 1023.5 999999


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
