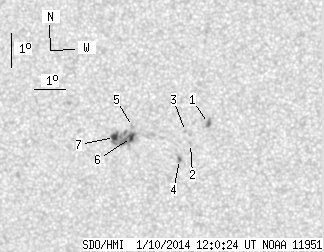

SDO HMI 2014-01-10 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.99 | 38.23 | 4.26 | 20.37 | -13.04 | 44.52 | -19.87 | 115.85 | 0.3694 | -43.7 | -347.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 3.99 | 0.27 | 2.10 | -12.69 | 46.77 | -17.62 | 117.41 | 0.3342 | 1087.8 | 853.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -13.27 | 46.15 | -18.24 | 118.21 | 0.3472 | 834.0 | 648.4 | |
| 0.00 | 0.76 | 0.00 | 0.40 | -12.91 | 46.02 | -18.37 | 117.11 | 0.3466 | 851.0 | 747.1 | |
| 0.51 | 2.38 | 0.27 | 1.26 | -13.74 | 45.76 | -18.63 | 118.95 | 0.3562 | 772.0 | 625.5 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -12.72 | 44.34 | -20.05 | 114.82 | 0.3701 | -874.0 | -758.4 | |
| 3.40 | 28.13 | 1.81 | 15.03 | -13.05 | 44.28 | -20.11 | 115.58 | 0.3730 | -1064.0 | -698.6 | |
| 3.57 | -6.00 | 1.91 | -6.00 | -13.04 | 43.73 | -20.66 | 115.00 | 0.3810 | -864.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
