SDO HMI 2014-01-10 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.30 | 15.88 | 7.37 | 16.19 | 6.90 | 4.37 | -60.02 | 79.78 | 0.8757 | -371.7 | -188.8 | |
|
previous
or next observation for the same group /

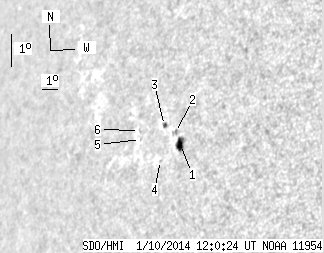

back to the solar disc SDO HMI 2014-01-10 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.20 | 9.09 | 6.22 | 9.11 | 6.71 | 4.92 | -59.47 | 79.90 | 0.8710 | -616.2 | -432.5 | |
| 0.00 | 2.38 | 0.00 | 2.41 | 7.10 | 4.55 | -59.85 | 79.53 | 0.8746 | -482.0 | -311.0 | |
| 1.10 | 2.21 | 1.15 | 2.29 | 7.35 | 3.83 | -60.57 | 79.36 | 0.8809 | -268.0 | -168.7 | |
| 0.00 | 0.42 | 0.00 | 0.44 | 6.30 | 3.80 | -60.59 | 80.55 | 0.8798 | -406.0 | -353.4 | |
| 0.00 | 0.85 | 0.00 | 0.92 | 7.02 | 2.40 | -61.99 | 79.97 | 0.8918 | 405.0 | 358.8 | |
| 0.00 | 0.93 | 0.00 | 1.02 | 7.30 | 2.27 | -62.12 | 79.68 | 0.8931 | 398.0 | 345.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
