Sunspot Group 11944

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11944	476.24	2798.44	297.39	1723.35	-9.73	99.72	35.87	258.49	0.5897	603.6	180.9

previous or next observation for the same group / back to the solar disc

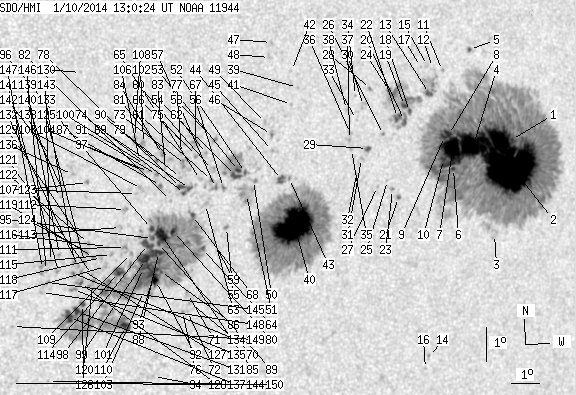

SDO HMI 2014-01-10 13:00:24 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.76	1369.19	0.50	891.30	-8.00	104.97	41.13	262.48	0.6593	945.9	345.6
2	188.24	-1.00	123.70	-1.00	-8.69	104.94	41.09	261.44	0.6594	1282.7	999999
3	0.00	5.01	0.00	3.29	-10.84	104.70	40.86	258.15	0.6589	-115.0	-120.0
4	49.89	-1.00	32.09	-1.00	-8.22	103.51	39.66	262.02	0.6402	1346.0	999999
5	0.93	1.95	0.60	1.25	-5.43	103.08	39.24	266.40	0.6333	-728.2	-571.3
6	1.27	-1.00	0.81	-1.00	-8.96	102.83	38.98	260.78	0.6318	885.2	999999
7	34.76	-1.00	22.11	-1.00	-8.43	102.72	38.88	261.61	0.6299	1383.7	999999
8	3.31	-1.00	2.10	-1.00	-7.96	102.52	38.67	262.33	0.6267	1287.7	999999
9	2.38	-1.00	1.50	-1.00	-8.03	102.37	38.52	262.21	0.6248	1370.3	999999
10	2.89	-1.00	1.83	-1.00	-8.71	102.41	38.57	261.13	0.6260	1195.7	999999
11	0.00	1.10	0.00	0.70	-6.09	102.11	38.26	265.32	0.6201	-225.0	-284.4
12	0.00	0.25	0.00	0.16	-6.02	101.72	37.88	265.43	0.6148	352.0	430.7
13	2.80	21.08	1.76	13.20	-6.79	101.68	37.83	264.17	0.6145	943.2	603.2
14	0.00	1.95	0.00	1.26	-14.57	102.83	38.99	252.02	0.6425	692.0	548.9
15	0.00	1.95	0.00	1.22	-5.97	101.53	37.68	265.50	0.6122	543.0	380.0
16	0.00	0.76	0.00	0.49	-14.94	102.75	38.91	251.44	0.6425	654.0	529.8
17	0.00	0.68	0.00	0.42	-6.01	101.27	37.43	265.43	0.6086	635.0	587.5
18	1.36	81.93	0.84	50.62	-7.35	100.98	37.13	263.19	0.6052	855.1	549.2
19	2.46	-18.00	1.53	-18.00	-7.18	100.77	36.93	263.46	0.6023	960.3	999999
20	2.63	-18.00	1.63	-18.00	-7.62	100.82	36.97	262.73	0.6032	840.9	999999
21	0.76	1.61	0.48	1.00	-9.90	100.86	37.01	258.96	0.6065	-677.7	-569.4
22	3.74	-18.00	2.31	-18.00	-7.54	100.55	36.70	262.83	0.5994	983.4	999999
23	0.00	1.27	0.00	0.79	-9.68	100.60	36.76	259.29	0.6026	-613.0	-442.9
24	1.02	-18.00	0.63	-18.00	-6.76	100.18	36.34	264.12	0.5938	-635.8	999999
25	0.00	0.76	0.00	0.47	-9.42	100.38	36.54	259.68	0.5993	-385.0	-291.9
26	0.00	1.27	0.00	0.78	-8.07	100.08	36.24	261.90	0.5934	855.0	776.7
27	0.00	1.27	0.00	0.78	-9.61	100.03	36.19	259.30	0.5947	-309.0	-310.4
28	0.00	1.53	0.00	0.93	-6.73	99.48	35.63	264.12	0.5839	-704.0	-532.1
29	1.53	3.31	0.93	2.02	-8.50	99.54	35.69	261.09	0.5863	890.6	747.4
30	0.00	3.74	0.00	2.27	-7.24	99.27	35.42	263.22	0.5813	620.0	680.5
31	0.00	0.93	0.00	0.57	-8.81	99.35	35.50	260.54	0.5841	765.0	661.2
32	0.00	1.27	0.00	0.78	-9.26	99.22	35.37	259.75	0.5828	799.0	639.5
33	0.00	1.19	0.00	0.72	-7.66	99.05	35.21	262.47	0.5786	570.0	469.2
34	0.00	0.85	0.00	0.51	-6.96	98.95	35.11	263.68	0.5766	-340.0	-278.4
35	0.00	1.27	0.00	0.77	-8.56	98.96	35.11	260.91	0.5782	834.0	622.0
36	0.00	2.04	0.00	1.23	-8.08	98.87	35.03	261.72	0.5765	788.0	621.2
37	0.00	1.44	0.00	0.87	-8.26	98.85	35.01	261.40	0.5764	835.0	716.4
38	0.00	1.44	0.00	0.87	-7.38	98.66	34.82	262.91	0.5728	766.0	616.1
39	0.00	1.02	0.00	0.60	-6.80	96.86	33.01	263.77	0.5463	332.0	280.8
40	85.07	465.29	50.63	276.87	-10.88	97.16	33.31	256.44	0.5570	1437.5	363.3
41	0.00	1.02	0.00	0.60	-7.31	96.68	32.84	262.82	0.5443	700.0	528.2
42	0.00	1.02	0.00	0.60	-6.31	96.61	32.76	264.66	0.5424	-652.0	-542.6
43	0.00	1.10	0.00	0.65	-9.50	96.82	32.97	258.84	0.5493	804.0	732.9
44	3.23	5.69	1.90	3.36	-9.54	96.54	32.69	258.71	0.5453	983.3	810.3
45	0.00	1.27	0.00	0.75	-8.69	96.13	32.29	260.18	0.5380	749.0	613.3
46	0.34	2.63	0.20	1.54	-8.22	96.05	32.21	261.04	0.5362	565.5	332.7
47	0.00	1.44	0.00	0.84	-5.51	95.85	32.01	266.11	0.5309	-474.0	-417.3
48	0.00	2.55	0.00	1.49	-5.95	95.81	31.96	265.27	0.5305	-843.0	-640.9
49	0.00	1.78	0.00	1.04	-7.87	95.81	31.97	261.65	0.5322	291.0	255.4
50	0.00	3.91	0.00	2.28	-9.60	95.55	31.71	258.35	0.5313	677.0	534.4
51	0.00	22.44	0.00	13.07	-10.03	95.35	31.51	257.50	0.5292	460.0	382.5
52	0.85	41.39	0.49	23.97	-9.38	95.25	31.40	258.70	0.5264	-652.6	-497.6
53	1.78	-52.00	1.04	-52.00	-9.33	95.00	31.15	258.73	0.5226	-966.9	999999
54	3.74	-52.00	2.17	-52.00	-9.48	94.91	31.06	258.42	0.5216	-970.3	999999
55	0.00	2.04	0.00	1.18	-11.03	94.76	30.92	255.44	0.5231	865.0	703.4
56	0.34	14.87	0.20	8.56	-9.85	94.53	30.68	257.61	0.5168	-701.2	-676.1
57	0.51	-56.00	0.29	-56.00	-9.86	94.25	30.41	257.51	0.5128	-889.5	999999
58	0.00	2.55	0.00	1.46	-8.44	94.08	30.24	260.24	0.5075	-771.0	-629.3
59	0.00	1.27	0.00	0.74	-11.49	94.39	30.55	254.44	0.5192	753.0	551.4
60	0.00	4.33	0.00	2.49	-9.33	94.09	30.25	258.50	0.5094	-568.0	-550.3
61	0.34	-56.00	0.20	-56.00	-9.65	94.09	30.25	257.86	0.5100	-914.5	999999
62	0.00	1.10	0.00	0.63	-8.86	93.84	30.00	259.35	0.5047	-686.0	-588.5
63	0.00	2.63	0.00	1.51	-10.37	93.96	30.11	256.42	0.5097	113.0	136.4
64	1.44	564.30	0.83	320.04	-11.68	94.00	30.15	253.92	0.5140	779.6	-163.6
65	0.00	1.78	0.00	1.02	-9.64	93.71	29.86	257.78	0.5044	-857.0	-699.5
66	0.00	2.55	0.00	1.46	-8.93	93.51	29.66	259.12	0.4999	-670.0	-603.5
67	0.00	6.63	0.00	3.78	-8.58	93.44	29.60	259.81	0.4982	-713.0	-636.6
68	1.27	-64.00	0.73	-64.00	-10.71	93.54	29.70	255.62	0.5046	-730.7	999999
69	1.27	11.22	0.73	6.40	-9.92	93.36	29.51	257.12	0.4998	-853.9	-744.0
70	0.00	1.87	0.00	1.08	-13.30	93.75	29.91	250.73	0.5161	806.0	662.5
71	0.00	2.29	0.00	1.32	-13.03	93.64	29.80	251.18	0.5136	808.0	666.0
72	0.00	1.10	0.00	0.64	-13.57	93.72	29.87	250.21	0.5166	774.0	593.2
73	0.00	7.39	0.00	4.21	-9.21	93.15	29.31	258.47	0.4952	-788.0	-796.6
74	1.10	-69.00	0.63	-69.00	-10.07	93.20	29.35	256.77	0.4979	-886.6	999999
75	0.00	1.27	0.00	0.72	-8.62	93.07	29.22	259.64	0.4927	-798.0	-641.8
76	0.00	1.27	0.00	0.74	-13.58	93.54	29.70	250.11	0.5142	826.0	739.3
77	0.00	2.12	0.00	1.21	-8.89	92.99	29.14	259.07	0.4921	-713.0	-610.6
78	2.38	-69.00	1.35	-69.00	-9.90	93.05	29.20	257.06	0.4952	-1042.4	999999
79	0.00	1.44	0.00	0.82	-9.60	93.02	29.17	257.65	0.4940	-900.0	-760.1
80	3.06	-64.00	1.74	-64.00	-11.21	92.94	29.09	254.41	0.4972	-930.6	999999
81	0.00	2.04	0.00	1.16	-9.08	92.63	28.78	258.59	0.4871	-852.0	-763.4
82	0.00	1.19	0.00	0.68	-10.29	92.74	28.90	256.17	0.4917	-649.0	-538.4
83	0.00	0.51	0.00	0.29	-9.38	92.48	28.64	257.93	0.4856	-924.0	-786.7
84	0.00	2.21	0.00	1.25	-8.94	92.34	28.50	258.79	0.4825	-975.0	-798.9
85	11.05	-64.00	6.28	-64.00	-11.31	92.54	28.69	254.05	0.4917	-1092.1	999999
86	0.93	-64.00	0.53	-64.00	-12.41	92.63	28.78	251.91	0.4968	-653.4	999999
87	0.59	2.63	0.34	1.49	-9.86	92.36	28.51	256.91	0.4849	-994.3	-846.5
88	3.74	-64.00	2.13	-64.00	-11.85	92.50	28.65	252.96	0.4928	-740.8	999999
89	1.53	-64.00	0.87	-64.00	-11.58	92.47	28.62	253.48	0.4915	-886.9	999999
90	0.42	1.27	0.24	0.72	-9.12	92.16	28.31	258.36	0.4801	-928.2	-825.9
91	0.00	2.29	0.00	1.30	-9.54	92.19	28.35	257.51	0.4816	-973.0	-862.8
92	3.65	-64.00	2.08	-64.00	-12.68	92.49	28.65	251.31	0.4958	1034.7	999999
93	1.53	-64.00	0.87	-64.00	-12.36	92.45	28.61	251.93	0.4940	-627.4	999999
94	0.00	1.19	0.00	0.69	-15.55	92.82	28.97	246.01	0.5128	759.0	579.7
95	1.53	-64.00	0.87	-64.00	-11.44	92.24	28.40	253.66	0.4878	-1065.5	999999
96	2.12	-64.00	1.20	-64.00	-11.14	92.18	28.33	254.23	0.4859	-1037.2	999999
97	0.00	1.61	0.00	0.91	-9.46	91.91	28.07	257.59	0.4772	-892.0	-714.1
98	6.63	-64.00	3.75	-64.00	-11.62	92.09	28.25	253.23	0.4862	-946.2	999999
99	7.48	-64.00	4.24	-64.00	-12.07	92.07	28.23	252.32	0.4875	-952.6	999999
100	0.00	1.10	0.00	0.62	-9.26	91.76	27.92	257.96	0.4744	-922.0	-778.2
101	0.59	-64.00	0.34	-64.00	-12.34	92.04	28.19	251.76	0.4879	-781.9	999999
102	0.00	3.31	0.00	1.86	-8.64	91.68	27.83	259.24	0.4718	-894.0	-822.7
103	0.00	0.93	0.00	0.53	-13.02	92.12	28.27	250.45	0.4918	106.0	94.6
104	0.00	1.53	0.00	0.86	-9.44	91.71	27.86	257.57	0.4741	-834.0	-768.4
105	0.00	2.55	0.00	1.43	-9.97	91.72	27.88	256.46	0.4757	-782.0	-759.9
106	0.00	1.02	0.00	0.57	-9.14	91.58	27.74	258.14	0.4715	-840.0	-742.2
107	0.00	1.02	0.00	0.57	-10.12	91.57	27.72	256.08	0.4738	-785.0	-581.4
108	0.00	3.91	0.00	2.19	-8.53	91.36	27.52	259.38	0.4668	-816.0	-778.4
109	0.00	2.04	0.00	1.15	-11.91	91.58	27.73	252.41	0.4797	-857.0	-759.6
110	5.69	-64.00	3.23	-64.00	-14.09	91.64	27.79	248.09	0.4894	1003.4	999999
111	0.00	2.46	0.00	1.39	-11.73	91.35	27.51	252.66	0.4758	-941.0	-788.1
112	0.00	2.97	0.00	1.67	-10.61	91.24	27.40	254.94	0.4703	-972.0	-839.7
113	0.00	1.95	0.00	1.10	-11.15	91.12	27.28	253.76	0.4703	-808.0	-727.0
114	6.12	-64.00	3.44	-64.00	-12.49	91.20	27.35	251.04	0.4763	-946.8	999999
115	0.00	1.87	0.00	1.05	-11.96	90.90	27.06	251.97	0.4700	-852.0	-681.1
116	0.00	1.36	0.00	0.76	-11.72	90.74	26.90	252.38	0.4667	-848.0	-722.0
117	0.00	3.65	0.00	2.05	-12.32	90.74	26.89	251.14	0.4690	-757.0	-679.9
118	0.00	2.12	0.00	1.19	-12.06	90.58	26.73	251.60	0.4655	-864.0	-812.8
119	0.00	1.70	0.00	0.95	-12.06	90.31	26.46	251.43	0.4616	-1031.0	-917.5
120	0.00	4.50	0.00	2.52	-12.87	90.36	26.52	249.79	0.4657	-835.0	-797.0
121	0.00	1.44	0.00	0.81	-12.57	90.33	26.48	250.39	0.4640	-910.0	-739.0
122	0.00	1.61	0.00	0.90	-11.65	90.10	26.25	252.19	0.4569	-887.0	-730.6
123	0.00	1.27	0.00	0.71	-9.85	89.90	26.05	256.02	0.4478	-900.0	-831.7
124	0.00	2.89	0.00	1.61	-11.89	90.02	26.17	251.64	0.4567	-859.0	-799.0
125	0.00	1.44	0.00	0.80	-12.19	90.02	26.17	251.00	0.4579	-1011.0	-807.7
126	1.61	-64.00	0.90	-64.00	-13.48	90.09	26.25	248.37	0.4646	-900.5	999999
127	0.00	2.46	0.00	1.37	-12.46	89.98	26.13	250.41	0.4584	-950.0	-819.9
128	0.76	5.27	0.43	2.93	-12.85	89.95	26.11	249.58	0.4597	-854.7	-776.9
129	0.00	0.59	0.00	0.33	-11.48	89.81	25.97	252.41	0.4520	-707.0	-715.9
130	0.00	1.02	0.00	0.56	-6.61	89.44	25.60	263.20	0.4340	-747.0	-590.1
131	5.52	-64.00	3.09	-64.00	-13.72	89.99	26.14	247.80	0.4642	-976.3	999999
132	0.00	1.44	0.00	0.80	-12.35	89.83	25.99	250.57	0.4558	-986.0	-806.8
133	0.00	1.44	0.00	0.80	-12.20	89.68	25.84	250.79	0.4530	-978.0	-884.9
134	0.42	2.72	0.24	1.51	-12.56	89.69	25.84	250.03	0.4546	-1014.4	-818.3
135	0.00	2.97	0.00	1.65	-13.04	89.74	25.89	249.06	0.4575	-911.0	-781.3
136	0.00	1.10	0.00	0.61	-9.62	89.38	25.53	256.30	0.4393	-824.0	-655.6
137	6.88	-64.00	3.84	-64.00	-13.88	89.70	25.85	247.29	0.4609	-1100.4	999999
138	0.00	0.42	0.00	0.23	-10.11	89.12	25.27	255.10	0.4368	-834.0	-699.4
139	0.00	1.27	0.00	0.70	-12.01	89.16	25.32	250.91	0.4445	-1039.0	-843.9
140	0.00	0.76	0.00	0.42	-10.32	89.01	25.16	254.57	0.4358	-705.0	-650.3
141	0.00	2.04	0.00	1.13	-12.52	89.18	25.33	249.82	0.4469	-1006.0	-809.5
142	0.00	1.19	0.00	0.65	-9.11	88.65	24.80	257.17	0.4266	-754.0	-669.8
143	0.00	1.36	0.00	0.75	-12.23	88.88	25.04	250.26	0.4413	-785.0	-677.8
144	0.00	0.85	0.00	0.47	-15.81	89.23	25.39	243.01	0.4649	-657.0	-522.9
145	0.00	1.78	0.00	0.99	-12.85	88.85	25.00	248.88	0.4436	-1038.0	-849.4
146	0.00	1.10	0.00	0.61	-12.50	88.78	24.93	249.60	0.4409	-906.0	-709.8
147	0.00	4.67	0.00	2.57	-12.44	88.64	24.79	249.64	0.4386	-744.0	-866.4
148	0.00	1.10	0.00	0.61	-13.16	88.68	24.83	248.11	0.4426	-750.0	-655.9
149	0.00	1.02	0.00	0.56	-14.20	87.83	23.98	245.23	0.4358	-793.0	-603.2
150	0.00	0.68	0.00	0.38	-15.91	88.00	24.15	241.78	0.4484	-849.0	-735.6

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
