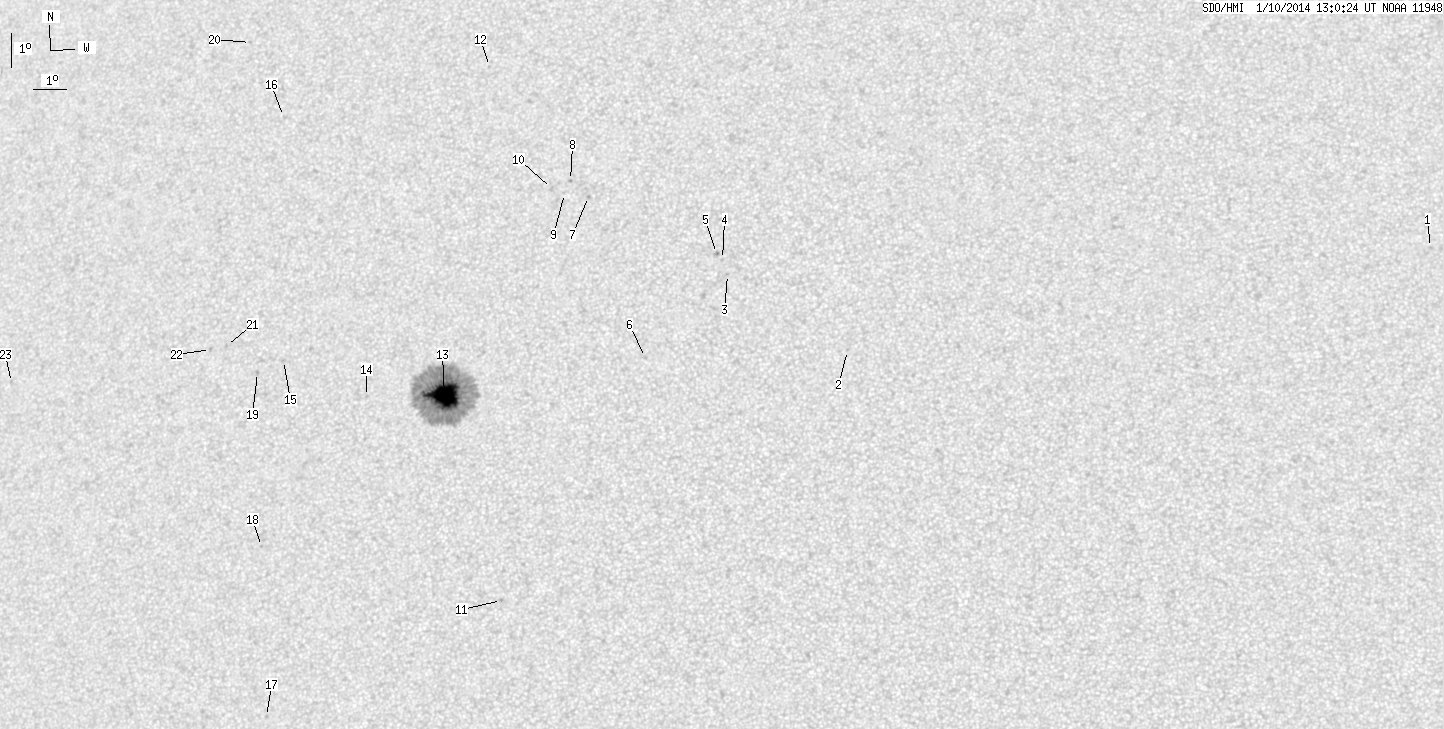

SDO HMI 2014-01-10 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.11 | 306.65 | 23.47 | 163.56 | 5.70 | 44.64 | -19.20 | 70.47 | 0.3705 | -728.4 | -370.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.48 | 9.72 | 74.30 | 10.46 | 322.98 | 0.2985 | -756.0 | -539.9 | |
| 0.00 | 1.10 | 0.00 | 0.56 | 6.60 | 56.85 | -7.00 | 33.25 | 0.2217 | -769.0 | -629.0 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 8.93 | 53.19 | -10.66 | 39.23 | 0.2902 | -853.0 | -657.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 9.39 | 53.02 | -10.82 | 38.67 | 0.2979 | -735.0 | -542.8 | |
| 0.00 | 2.12 | 0.00 | 1.10 | 9.57 | 52.83 | -11.01 | 38.77 | 0.3022 | -932.0 | -810.4 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 6.47 | 50.76 | -13.08 | 51.16 | 0.2901 | -770.0 | -613.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 11.38 | 48.82 | -15.03 | 43.92 | 0.3681 | -1014.0 | -795.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 11.88 | 48.23 | -15.62 | 44.06 | 0.3805 | -837.0 | -664.0 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 11.49 | 48.06 | -15.78 | 45.11 | 0.3779 | -603.0 | -404.5 | |
| 0.00 | 2.12 | 0.00 | 1.14 | 11.65 | 47.65 | -16.20 | 45.54 | 0.3845 | -583.0 | -520.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -0.66 | 46.44 | -17.41 | 79.36 | 0.3058 | 925.0 | 739.2 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 15.47 | 45.39 | -18.46 | 42.67 | 0.4521 | 609.0 | 484.5 | |
| 44.11 | 279.77 | 23.47 | 148.93 | 5.47 | 44.58 | -19.26 | 63.78 | 0.3677 | -1395.2 | -412.6 | |
| 0.00 | 1.10 | 0.00 | 0.60 | 5.50 | 42.11 | -21.73 | 66.37 | 0.4040 | 847.0 | 631.9 | |
| 0.00 | 1.61 | 0.00 | 0.90 | 6.66 | 39.38 | -24.46 | 66.38 | 0.4508 | 648.0 | 545.8 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 14.11 | 38.76 | -25.09 | 53.39 | 0.5143 | -632.0 | -486.5 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -3.88 | 38.94 | -24.91 | 90.45 | 0.4220 | 756.0 | 623.4 | |
| 0.00 | 0.93 | 0.00 | 0.51 | 1.14 | 38.83 | -25.01 | 78.74 | 0.4328 | 731.0 | 624.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 6.33 | 38.55 | -25.29 | 67.75 | 0.4608 | 871.0 | 692.8 | |
| 0.00 | 1.10 | 0.00 | 0.65 | 16.46 | 37.33 | -26.52 | 51.25 | 0.5512 | 733.0 | 634.1 | |
| 0.00 | 0.93 | 0.00 | 0.53 | 7.17 | 37.48 | -26.37 | 66.93 | 0.4809 | 735.0 | 606.3 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 7.07 | 36.95 | -26.89 | 67.54 | 0.4877 | 735.0 | 649.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 6.34 | 30.15 | -33.70 | 72.98 | 0.5789 | 520.0 | 474.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
