SDO HMI 2014-01-10 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.72 | 0.00 | 2.41 | -6.75 | 24.38 | -39.46 | 96.32 | 0.6350 | 342.0 | 220.3 | |
|
previous
or next observation for the same group /

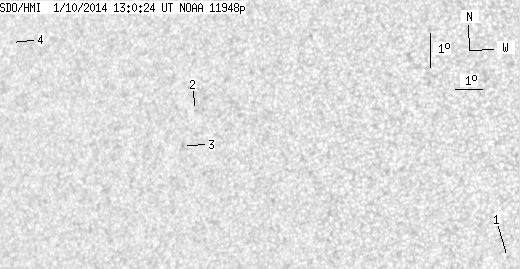

back to the solar disc SDO HMI 2014-01-10 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.76 | 0.00 | 0.43 | -11.04 | 35.42 | -28.43 | 105.53 | 0.4870 | 649.0 | 538.1 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -6.26 | 24.66 | -39.18 | 94.92 | 0.6327 | 613.0 | 458.6 | |
| 0.00 | 1.10 | 0.00 | 0.71 | -7.26 | 24.06 | -39.78 | 96.47 | 0.6412 | 666.0 | 509.6 | |
| 0.00 | 0.93 | 0.00 | 0.67 | -3.89 | 17.40 | -46.44 | 91.50 | 0.7256 | -560.0 | -503.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
