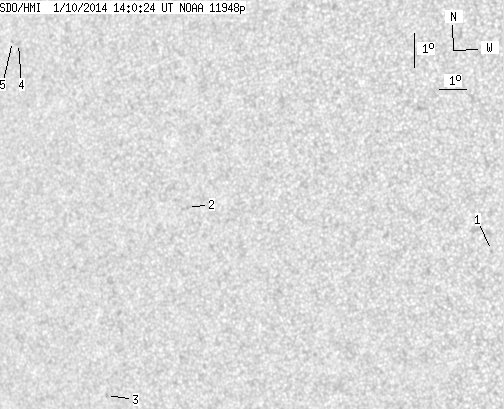

SDO HMI 2014-01-10 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.37 | 0.00 | 4.32 | -7.97 | 20.60 | -42.69 | 97.71 | 0.6800 | 179.0 | 33.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.39 | -10.86 | 34.75 | -28.54 | 105.11 | 0.4881 | 511.0 | 426.5 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -9.15 | 23.95 | -39.35 | 99.47 | 0.6370 | 592.0 | 463.2 | |
| 0.00 | 1.53 | 0.00 | 1.06 | -14.57 | 19.65 | -43.64 | 106.76 | 0.7000 | 596.0 | 416.2 | |
| 0.00 | 2.21 | 0.00 | 1.56 | -3.99 | 17.66 | -45.63 | 91.60 | 0.7158 | -180.0 | -255.7 | |
| 0.00 | 0.93 | 0.00 | 0.66 | -3.92 | 17.41 | -45.88 | 91.51 | 0.7188 | -624.0 | -544.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
