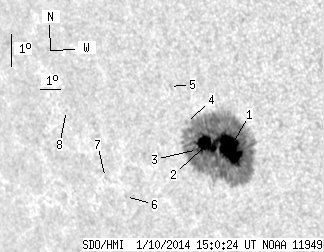

SDO HMI 2014-01-10 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.83 | 368.83 | 49.13 | 280.24 | -16.06 | 14.09 | -48.65 | 107.75 | 0.7598 | 873.5 | 235.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.99 | 364.17 | 32.37 | 276.40 | -16.12 | 14.50 | -48.24 | 107.91 | 0.7555 | 1096.0 | 242.4 | |
| 20.82 | -1.00 | 15.97 | -1.00 | -15.95 | 13.48 | -49.26 | 107.49 | 0.7661 | 786.7 | 999999 | |
| 1.02 | -1.00 | 0.79 | -1.00 | -16.08 | 13.01 | -49.73 | 107.57 | 0.7714 | 302.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.12 | -15.24 | 12.77 | -49.98 | 106.45 | 0.7727 | -89.0 | -87.9 | |
| 0.00 | 0.76 | 0.00 | 0.60 | -14.13 | 12.31 | -50.43 | 104.95 | 0.7761 | 591.0 | 495.7 | |
| 0.00 | 0.93 | 0.00 | 0.79 | -17.29 | 8.95 | -53.80 | 108.40 | 0.8143 | -500.0 | -441.6 | |
| 0.00 | 0.85 | 0.00 | 0.73 | -16.66 | 8.15 | -54.59 | 107.52 | 0.8210 | -488.0 | -477.4 | |
| 0.00 | 0.68 | 0.00 | 0.60 | -14.55 | 6.91 | -55.84 | 104.83 | 0.8307 | -514.0 | -432.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
