SDO HMI 2014-01-10 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.80 | 50.29 | 15.22 | 26.53 | -13.20 | 44.60 | -18.14 | 118.18 | 0.3453 | -403.0 | 0.8 | |
|
previous
or next observation for the same group /

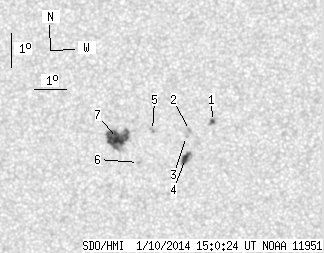

back to the solar disc SDO HMI 2014-01-10 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 3.14 | 0.62 | 1.64 | -12.67 | 46.92 | -15.82 | 119.76 | 0.3078 | 984.5 | 807.4 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -12.92 | 46.18 | -16.56 | 119.42 | 0.3204 | 986.0 | 766.9 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -13.10 | 46.08 | -16.67 | 119.76 | 0.3233 | 741.0 | 622.6 | |
| 4.67 | 8.75 | 2.45 | 4.59 | -13.76 | 46.00 | -16.75 | 121.43 | 0.3295 | 986.9 | 786.8 | |
| 0.00 | 2.04 | 0.00 | 1.07 | -12.90 | 45.01 | -17.73 | 117.82 | 0.3372 | -915.0 | -710.2 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -13.84 | 44.49 | -18.25 | 119.65 | 0.3515 | 798.0 | 585.1 | |
| 22.94 | 32.80 | 12.15 | 17.37 | -13.11 | 43.88 | -18.86 | 117.05 | 0.3551 | -1019.2 | -574.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
