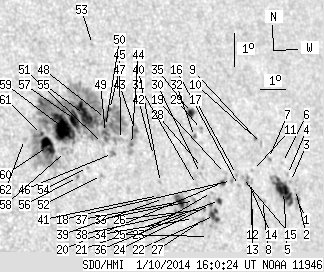

SDO HMI 2014-01-10 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.13 | 527.18 | 86.22 | 346.44 | 9.03 | 101.01 | 38.82 | 288.97 | 0.6562 | 105.6 | 116.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.02 | 7.39 | 0.75 | 5.40 | 7.71 | 108.12 | 45.93 | 284.40 | 0.7375 | -399.6 | -137.6 | |
| 0.00 | 0.76 | 0.00 | 0.56 | 8.01 | 108.08 | 45.89 | 284.81 | 0.7378 | -256.0 | -194.1 | |
| 0.00 | 0.93 | 0.00 | 0.68 | 8.24 | 107.90 | 45.71 | 285.17 | 0.7363 | -348.0 | -258.8 | |
| 0.00 | 1.10 | 0.00 | 0.80 | 8.44 | 107.81 | 45.61 | 285.47 | 0.7358 | -417.0 | -317.5 | |
| 21.75 | 30.84 | 15.75 | 22.31 | 7.92 | 107.56 | 45.36 | 284.85 | 0.7315 | -779.8 | -496.4 | |
| 0.00 | 1.19 | 0.00 | 0.87 | 8.80 | 107.65 | 45.45 | 285.99 | 0.7350 | -458.0 | -387.6 | |
| 0.00 | 2.46 | 0.00 | 1.78 | 8.89 | 107.07 | 44.87 | 286.30 | 0.7286 | -436.0 | -351.8 | |
| 0.00 | 2.80 | 0.00 | 1.99 | 7.60 | 106.63 | 44.43 | 284.72 | 0.7198 | -689.0 | -577.6 | |
| 0.00 | 1.10 | 0.00 | 0.79 | 9.33 | 106.84 | 44.65 | 286.97 | 0.7274 | -535.0 | -425.8 | |
| 0.51 | 1.70 | 0.37 | 1.22 | 9.47 | 106.61 | 44.42 | 287.24 | 0.7252 | -667.0 | -559.4 | |
| 0.00 | 1.10 | 0.00 | 0.78 | 8.49 | 106.33 | 44.14 | 286.02 | 0.7190 | -509.0 | -383.5 | |
| 0.00 | 1.44 | 0.00 | 1.02 | 8.12 | 106.24 | 44.05 | 285.55 | 0.7168 | -559.0 | -490.1 | |
| 0.00 | 1.10 | 0.00 | 0.78 | 7.58 | 106.17 | 43.97 | 284.83 | 0.7143 | -584.0 | -556.0 | |
| 0.00 | 3.40 | 0.00 | 2.40 | 8.18 | 106.08 | 43.89 | 285.68 | 0.7151 | -874.0 | -695.3 | |
| 0.00 | 1.10 | 0.00 | 0.78 | 8.26 | 105.89 | 43.69 | 285.85 | 0.7130 | -619.0 | -479.2 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 8.01 | 105.69 | 43.49 | 285.58 | 0.7099 | -651.0 | -570.0 | |
| 0.00 | 1.02 | 0.00 | 0.71 | 8.34 | 105.65 | 43.46 | 286.04 | 0.7105 | -581.0 | -499.0 | |
| 0.00 | 1.70 | 0.00 | 1.19 | 8.14 | 105.42 | 43.22 | 285.86 | 0.7071 | -781.0 | -670.8 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 8.34 | 105.20 | 43.01 | 286.21 | 0.7052 | -561.0 | -506.3 | |
| 1.61 | 3.74 | 1.12 | 2.59 | 8.06 | 105.04 | 42.84 | 285.88 | 0.7024 | -804.5 | -606.4 | |
| 1.95 | 3.91 | 1.35 | 2.69 | 7.51 | 104.84 | 42.65 | 285.18 | 0.6984 | -728.7 | -531.4 | |
| 5.78 | 15.63 | 3.96 | 10.71 | 7.05 | 104.59 | 42.39 | 284.62 | 0.6939 | -781.0 | -619.0 | |
| 0.00 | 1.02 | 0.00 | 0.70 | 7.74 | 104.55 | 42.36 | 285.60 | 0.6955 | -519.0 | -493.5 | |
| 0.59 | -22.00 | 0.41 | -22.00 | 7.38 | 104.46 | 42.27 | 285.12 | 0.6933 | -862.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 6.41 | 104.27 | 42.08 | 283.81 | 0.6882 | -111.0 | -145.3 | |
| 0.00 | 1.95 | 0.00 | 1.33 | 7.21 | 104.16 | 41.97 | 284.99 | 0.6892 | -820.0 | -790.7 | |
| 0.00 | 3.40 | 0.00 | 2.31 | 6.88 | 104.08 | 41.89 | 284.54 | 0.6872 | -790.0 | -667.3 | |
| 0.00 | 1.19 | 0.00 | 0.82 | 8.48 | 104.28 | 42.09 | 286.73 | 0.6946 | -499.0 | -412.3 | |
| 0.00 | 2.38 | 0.00 | 1.64 | 9.63 | 104.41 | 42.22 | 288.28 | 0.7001 | 506.0 | 318.4 | |
| 0.00 | 0.93 | 0.00 | 0.64 | 8.29 | 104.18 | 41.98 | 286.51 | 0.6928 | -615.0 | -529.0 | |
| 0.00 | 0.76 | 0.00 | 0.52 | 7.95 | 103.97 | 41.78 | 286.10 | 0.6892 | -523.0 | -424.6 | |
| 0.51 | 1.78 | 0.35 | 1.23 | 9.41 | 104.10 | 41.90 | 288.09 | 0.6955 | 659.0 | 568.8 | |
| 0.00 | 2.29 | 0.00 | 1.56 | 7.47 | 103.83 | 41.64 | 285.47 | 0.6859 | -622.0 | -533.5 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 6.92 | 103.73 | 41.54 | 284.73 | 0.6830 | -622.0 | -532.2 | |
| 3.65 | 5.78 | 2.52 | 3.98 | 10.13 | 104.09 | 41.90 | 289.10 | 0.6980 | 749.8 | 459.8 | |
| 0.00 | 1.44 | 0.00 | 0.98 | 7.10 | 103.63 | 41.44 | 285.01 | 0.6823 | -798.0 | -709.1 | |
| 6.71 | 11.72 | 4.51 | 7.89 | 7.41 | 103.27 | 41.08 | 285.59 | 0.6788 | -883.1 | -704.9 | |
| 0.00 | 3.74 | 0.00 | 2.50 | 7.04 | 103.11 | 40.92 | 285.12 | 0.6757 | -654.0 | -692.9 | |
| 0.00 | 0.93 | 0.00 | 0.62 | 7.47 | 102.61 | 40.41 | 285.92 | 0.6708 | -754.0 | -673.6 | |
| 0.00 | 1.19 | 0.00 | 0.79 | 7.95 | 102.55 | 40.35 | 286.63 | 0.6716 | -558.0 | -451.7 | |
| 0.00 | 1.10 | 0.00 | 0.73 | 7.55 | 102.42 | 40.23 | 286.11 | 0.6687 | -781.0 | -646.8 | |
| 0.00 | 1.10 | 0.00 | 0.74 | 8.75 | 102.37 | 40.18 | 287.86 | 0.6723 | -584.0 | -427.3 | |
| 0.93 | 14.02 | 0.62 | 9.27 | 9.48 | 101.77 | 39.58 | 289.16 | 0.6676 | -549.1 | -344.4 | |
| 0.51 | -43.00 | 0.34 | -43.00 | 9.05 | 101.56 | 39.36 | 288.63 | 0.6633 | -453.8 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.23 | 9.18 | 101.15 | 38.96 | 289.00 | 0.6588 | -87.0 | -65.1 | |
| 0.00 | 3.14 | 0.00 | 2.05 | 8.74 | 100.79 | 38.59 | 288.52 | 0.6525 | 512.0 | 432.3 | |
| 1.02 | 359.80 | 0.67 | 231.06 | 10.07 | 100.85 | 38.66 | 290.43 | 0.6587 | 438.6 | 316.8 | |
| 1.87 | -47.00 | 1.22 | -47.00 | 9.79 | 100.66 | 38.46 | 290.12 | 0.6551 | 568.4 | 999999 | |
| 1.44 | -47.00 | 0.94 | -47.00 | 9.37 | 100.60 | 38.41 | 289.52 | 0.6527 | 691.4 | 999999 | |
| 0.59 | -47.00 | 0.39 | -47.00 | 9.55 | 100.62 | 38.43 | 289.78 | 0.6537 | 583.9 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.32 | 9.03 | 100.44 | 38.25 | 289.09 | 0.6493 | 205.0 | 265.8 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 8.06 | 100.29 | 38.09 | 287.72 | 0.6436 | 570.0 | 442.5 | |
| 0.00 | 1.10 | 0.00 | 0.73 | 12.04 | 100.51 | 38.31 | 293.42 | 0.6631 | 680.0 | 488.1 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 8.27 | 99.78 | 37.59 | 288.27 | 0.6380 | -368.0 | -367.8 | |
| 18.61 | -47.00 | 12.04 | -47.00 | 9.88 | 99.87 | 37.68 | 290.62 | 0.6457 | 779.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 7.96 | 99.37 | 37.18 | 287.97 | 0.6315 | 753.0 | 670.8 | |
| 10.87 | -47.00 | 6.99 | -47.00 | 9.71 | 99.47 | 37.28 | 290.57 | 0.6399 | 830.1 | 999999 | |
| 0.00 | 7.14 | 0.00 | 4.54 | 8.72 | 99.01 | 36.81 | 289.31 | 0.6299 | 434.0 | 553.9 | |
| 33.98 | -47.00 | 21.68 | -47.00 | 9.45 | 98.98 | 36.79 | 290.42 | 0.6327 | 1012.4 | 999999 | |
| 15.21 | -47.00 | 9.60 | -47.00 | 8.85 | 98.35 | 36.16 | 289.82 | 0.6220 | 1063.7 | 999999 | |
| 1.02 | -47.00 | 0.64 | -47.00 | 9.20 | 98.17 | 35.98 | 290.45 | 0.6213 | 938.4 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.43 | 9.02 | 97.53 | 35.33 | 290.52 | 0.6121 | 301.0 | 296.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
