SDO HMI 2014-01-10 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.65 | 374.47 | 41.76 | 281.78 | -16.09 | 14.04 | -48.15 | 107.88 | 0.7543 | 887.7 | 262.6 | |
|
previous
or next observation for the same group /

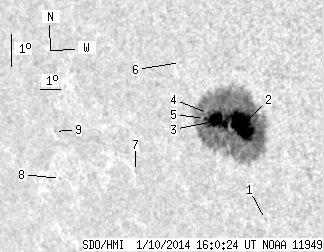

back to the solar disc SDO HMI 2014-01-10 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.83 | -19.04 | 14.59 | -47.60 | 111.86 | 0.7545 | 493.0 | 344.8 | |
| 35.85 | 370.33 | 26.71 | 278.32 | -16.16 | 14.50 | -47.70 | 108.06 | 0.7495 | 1135.7 | 267.3 | |
| 17.42 | -2.00 | 13.23 | -2.00 | -15.95 | 13.45 | -48.74 | 107.58 | 0.7605 | 822.2 | 999999 | |
| 1.36 | -2.00 | 1.04 | -2.00 | -15.72 | 13.11 | -49.09 | 107.22 | 0.7639 | 380.2 | 999999 | |
| 1.02 | -2.00 | 0.78 | -2.00 | -15.86 | 12.92 | -49.27 | 107.37 | 0.7661 | 251.7 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.59 | -14.13 | 12.29 | -49.91 | 105.03 | 0.7704 | 535.0 | 513.8 | |
| 0.00 | 0.76 | 0.00 | 0.64 | -17.26 | 8.93 | -53.26 | 108.45 | 0.8090 | -572.0 | -516.4 | |
| 0.00 | 0.59 | 0.00 | 0.55 | -17.24 | 4.85 | -57.35 | 107.85 | 0.8469 | -373.0 | -360.1 | |
| 0.00 | 0.93 | 0.00 | 0.85 | -15.82 | 5.16 | -57.03 | 106.21 | 0.8427 | -379.0 | -309.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
