SDO HMI 2014-01-10 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.33 | 0.00 | 3.24 | -13.74 | 109.72 | 48.07 | 255.41 | 0.7508 | -355.0 | -310.0 | |
|
previous
or next observation for the same group /

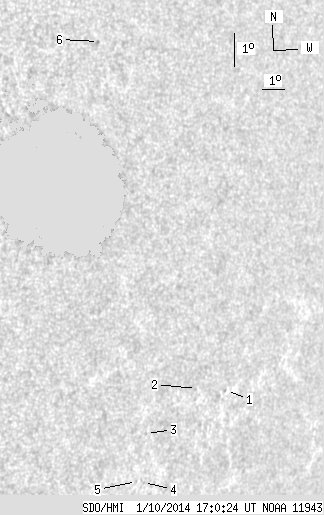

back to the solar disc SDO HMI 2014-01-10 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.41 | -14.19 | 113.03 | 51.39 | 255.11 | 0.7862 | -632.0 | -590.7 | |
| 0.00 | 0.59 | 0.00 | 0.46 | -14.21 | 111.59 | 49.95 | 254.89 | 0.7710 | -508.0 | -454.0 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -15.66 | 109.70 | 48.06 | 252.67 | 0.7526 | -499.0 | -467.6 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -17.14 | 110.05 | 48.40 | 250.81 | 0.7591 | -539.0 | -514.1 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -17.12 | 109.72 | 48.07 | 250.76 | 0.7555 | -556.0 | -502.9 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -4.18 | 105.54 | 43.90 | 268.21 | 0.6942 | 604.0 | 566.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
