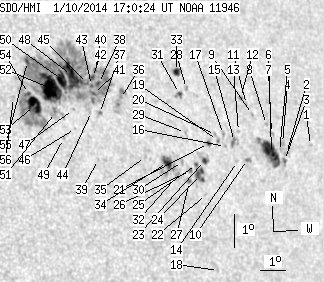

SDO HMI 2014-01-10 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.72 | 520.03 | 91.38 | 344.51 | 9.04 | 101.04 | 39.40 | 288.73 | 0.6634 | 169.6 | 134.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.84 | 8.20 | 109.44 | 47.80 | 284.49 | 0.7597 | -205.0 | -270.0 | |
| 0.00 | 2.29 | 0.00 | 1.70 | 7.90 | 108.34 | 46.69 | 284.42 | 0.7466 | 260.0 | 167.4 | |
| 0.76 | 3.23 | 0.57 | 2.39 | 7.68 | 108.22 | 46.58 | 284.17 | 0.7447 | -383.0 | -216.6 | |
| 0.00 | 1.78 | 0.00 | 1.32 | 8.19 | 108.21 | 46.56 | 284.85 | 0.7459 | 251.0 | 207.2 | |
| 0.00 | 1.36 | 0.00 | 1.00 | 7.94 | 108.04 | 46.40 | 284.57 | 0.7434 | 6.0 | -100.6 | |
| 22.17 | 32.28 | 16.24 | 23.62 | 7.86 | 107.68 | 46.04 | 284.57 | 0.7391 | -764.9 | -464.3 | |
| 0.00 | 1.95 | 0.00 | 1.44 | 8.47 | 107.77 | 46.13 | 285.35 | 0.7418 | -391.0 | -305.3 | |
| 0.00 | 1.10 | 0.00 | 0.81 | 8.73 | 107.60 | 45.96 | 285.75 | 0.7406 | -481.0 | -419.5 | |
| 0.00 | 0.85 | 0.00 | 0.62 | 9.00 | 107.04 | 45.40 | 286.29 | 0.7350 | -408.0 | -371.6 | |
| 0.42 | 2.72 | 0.30 | 1.95 | 7.63 | 106.62 | 44.98 | 284.58 | 0.7263 | -708.8 | -557.5 | |
| 0.00 | 1.19 | 0.00 | 0.86 | 9.30 | 106.84 | 45.19 | 286.74 | 0.7335 | -533.0 | -423.1 | |
| 0.42 | 1.44 | 0.31 | 1.05 | 9.50 | 106.61 | 44.97 | 287.08 | 0.7316 | -679.4 | -536.6 | |
| 0.00 | 1.02 | 0.00 | 0.73 | 8.46 | 106.36 | 44.72 | 285.78 | 0.7257 | -462.0 | -359.6 | |
| 0.00 | 1.44 | 0.00 | 1.03 | 7.55 | 106.19 | 44.55 | 284.61 | 0.7211 | -659.0 | -506.7 | |
| 0.00 | 5.10 | 0.00 | 3.64 | 8.15 | 106.15 | 44.51 | 285.43 | 0.7223 | -819.0 | -619.1 | |
| 0.00 | 1.02 | 0.00 | 0.72 | 7.98 | 105.75 | 44.11 | 285.33 | 0.7171 | -701.0 | -587.7 | |
| 0.00 | 2.55 | 0.00 | 1.81 | 8.33 | 105.72 | 44.08 | 285.83 | 0.7178 | -553.0 | -470.8 | |
| 0.00 | 0.59 | 0.00 | 0.41 | 4.23 | 105.07 | 43.43 | 280.34 | 0.6992 | -523.0 | -395.3 | |
| 0.34 | 1.36 | 0.24 | 0.96 | 8.14 | 105.44 | 43.80 | 285.66 | 0.7140 | -773.8 | -635.7 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 8.32 | 105.38 | 43.74 | 285.92 | 0.7138 | -649.0 | -522.9 | |
| 1.44 | 2.63 | 1.01 | 1.84 | 8.03 | 105.05 | 43.41 | 285.64 | 0.7091 | -730.1 | -543.1 | |
| 0.00 | 0.59 | 0.00 | 0.41 | 6.49 | 104.78 | 43.14 | 283.59 | 0.7014 | -545.0 | -440.0 | |
| 2.29 | 7.31 | 1.60 | 5.08 | 7.51 | 104.82 | 43.18 | 285.00 | 0.7047 | -715.8 | -481.3 | |
| 6.29 | 12.49 | 4.35 | 8.64 | 7.08 | 104.61 | 42.96 | 284.47 | 0.7009 | -781.0 | -598.5 | |
| 0.76 | -24.00 | 0.53 | -24.00 | 7.37 | 104.48 | 42.84 | 284.92 | 0.7002 | -838.6 | 999999 | |
| 0.59 | 1.44 | 0.41 | 0.99 | 7.18 | 104.21 | 42.57 | 284.74 | 0.6964 | -878.7 | -782.9 | |
| 0.59 | 2.04 | 0.41 | 1.40 | 6.84 | 104.13 | 42.49 | 284.30 | 0.6945 | -725.7 | -675.9 | |
| 0.00 | 1.78 | 0.00 | 1.24 | 9.66 | 104.39 | 42.75 | 288.11 | 0.7065 | 510.0 | 407.1 | |
| 0.00 | 0.85 | 0.00 | 0.59 | 8.32 | 104.15 | 42.51 | 286.35 | 0.6992 | -518.0 | -451.5 | |
| 0.00 | 2.29 | 0.00 | 1.57 | 7.43 | 103.92 | 42.28 | 285.20 | 0.6936 | -611.0 | -526.5 | |
| 1.10 | 3.91 | 0.77 | 2.71 | 9.49 | 104.08 | 42.44 | 288.00 | 0.7022 | 641.2 | 485.0 | |
| 0.00 | 2.89 | 0.00 | 1.97 | 7.00 | 103.67 | 42.03 | 284.68 | 0.6893 | -696.0 | -620.7 | |
| 3.74 | 5.52 | 2.60 | 3.84 | 10.16 | 104.07 | 42.43 | 288.92 | 0.7044 | 641.9 | 408.9 | |
| 6.20 | 16.06 | 4.21 | 10.90 | 7.38 | 103.31 | 41.67 | 285.33 | 0.6860 | -861.4 | -700.3 | |
| 0.00 | 1.02 | 0.00 | 0.68 | 7.52 | 102.45 | 40.81 | 285.84 | 0.6759 | -360.0 | -388.0 | |
| 0.00 | 9.77 | 0.00 | 6.52 | 9.23 | 101.69 | 40.05 | 288.60 | 0.6725 | -318.0 | -415.6 | |
| 0.00 | 1.87 | 0.00 | 1.23 | 8.74 | 100.81 | 39.17 | 288.26 | 0.6597 | 516.0 | 450.5 | |
| 1.27 | 363.76 | 0.84 | 235.42 | 9.65 | 100.89 | 39.25 | 289.55 | 0.6643 | 211.4 | 306.0 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 7.34 | 100.61 | 38.97 | 286.29 | 0.6522 | -627.0 | -516.9 | |
| 0.68 | -38.00 | 0.45 | -38.00 | 10.04 | 100.83 | 39.19 | 290.14 | 0.6651 | 477.8 | 999999 | |
| 0.76 | -38.00 | 0.50 | -38.00 | 9.33 | 100.66 | 39.02 | 289.20 | 0.6601 | 627.4 | 999999 | |
| 1.53 | -38.00 | 1.01 | -38.00 | 9.82 | 100.69 | 39.04 | 289.89 | 0.6624 | 559.0 | 999999 | |
| 0.51 | -38.00 | 0.34 | -38.00 | 9.57 | 100.61 | 38.97 | 289.57 | 0.6605 | 595.7 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.50 | 8.78 | 100.51 | 38.87 | 288.46 | 0.6561 | 352.0 | 342.4 | |
| 0.25 | -38.00 | 0.17 | -38.00 | 9.63 | 100.47 | 38.82 | 289.71 | 0.6589 | 655.0 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.33 | 8.24 | 99.83 | 38.19 | 287.96 | 0.6455 | -451.0 | -407.7 | |
| 0.00 | 0.93 | 0.00 | 0.61 | 8.81 | 99.82 | 38.18 | 288.81 | 0.6477 | 512.0 | 491.6 | |
| 21.75 | -38.00 | 14.18 | -38.00 | 9.84 | 99.88 | 38.24 | 290.30 | 0.6526 | 761.0 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 7.92 | 99.34 | 37.70 | 287.69 | 0.6381 | 610.0 | 546.9 | |
| 10.36 | -38.00 | 6.72 | -38.00 | 9.70 | 99.48 | 37.84 | 290.29 | 0.6470 | 850.6 | 999999 | |
| 0.00 | 12.74 | 0.00 | 8.18 | 8.69 | 99.13 | 37.49 | 288.95 | 0.6384 | 681.0 | 443.3 | |
| 34.41 | -38.00 | 22.12 | -38.00 | 9.41 | 99.03 | 37.39 | 290.07 | 0.6401 | 1010.6 | 999999 | |
| 15.80 | -38.00 | 10.04 | -38.00 | 8.87 | 98.36 | 36.72 | 289.58 | 0.6293 | 1071.1 | 999999 | |
| 0.85 | -38.00 | 0.54 | -38.00 | 9.22 | 98.18 | 36.54 | 290.21 | 0.6285 | 973.9 | 999999 | |
| 1.44 | -38.00 | 0.92 | -38.00 | 10.20 | 98.27 | 36.63 | 291.63 | 0.6340 | -269.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 9.08 | 97.61 | 35.96 | 290.28 | 0.6205 | 413.0 | 384.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
