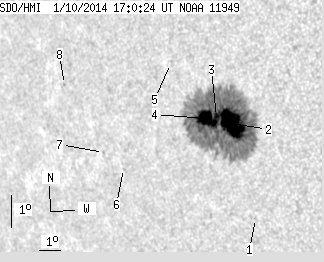

SDO HMI 2014-01-10 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.06 | 382.36 | 44.59 | 284.68 | -16.08 | 14.08 | -47.56 | 107.98 | 0.7479 | 927.7 | 252.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.63 | -19.06 | 14.59 | -47.05 | 112.03 | 0.7487 | 399.0 | 335.2 | |
| 37.80 | 378.97 | 27.88 | 281.92 | -16.15 | 14.50 | -47.14 | 108.17 | 0.7434 | 1169.3 | 258.4 | |
| 3.40 | -2.00 | 2.53 | -2.00 | -15.91 | 13.89 | -47.75 | 107.72 | 0.7497 | 913.5 | 999999 | |
| 18.86 | -2.00 | 14.18 | -2.00 | -15.95 | 13.42 | -48.22 | 107.67 | 0.7549 | 835.6 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.26 | -14.22 | 12.28 | -49.36 | 105.22 | 0.7647 | 461.0 | 465.2 | |
| 0.00 | 0.42 | 0.00 | 0.35 | -17.23 | 8.92 | -52.72 | 108.50 | 0.8037 | -544.0 | -495.4 | |
| 0.00 | 1.02 | 0.00 | 0.86 | -16.69 | 8.10 | -53.54 | 107.71 | 0.8109 | -591.0 | -525.0 | |
| 0.00 | 0.76 | 0.00 | 0.66 | -14.56 | 6.89 | -54.75 | 104.94 | 0.8203 | -479.0 | -497.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
