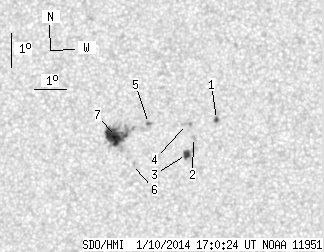

SDO HMI 2014-01-10 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.56 | 58.52 | 13.44 | 30.68 | -13.18 | 44.47 | -17.17 | 119.36 | 0.3311 | -472.8 | -160.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.02 | 2.21 | 0.53 | 1.14 | -12.70 | 47.01 | -14.63 | 121.68 | 0.2909 | 1061.1 | 889.9 | |
| 0.00 | 2.12 | 0.00 | 1.10 | -13.22 | 46.26 | -15.38 | 121.99 | 0.3059 | 838.0 | 533.0 | |
| 3.48 | 7.90 | 1.82 | 4.12 | -13.72 | 46.00 | -15.64 | 123.00 | 0.3136 | 1007.5 | 769.1 | |
| 0.00 | 3.57 | 0.00 | 1.85 | -12.83 | 46.06 | -15.58 | 120.57 | 0.3055 | 723.0 | 706.3 | |
| 0.42 | 1.61 | 0.22 | 0.84 | -12.77 | 44.87 | -16.77 | 118.71 | 0.3223 | -1014.2 | -886.6 | |
| 0.00 | 0.25 | 0.00 | 0.13 | -13.99 | 44.27 | -17.37 | 121.17 | 0.3400 | 373.0 | 368.0 | |
| 20.64 | 40.86 | 10.87 | 21.50 | -13.14 | 43.80 | -17.84 | 118.32 | 0.3404 | -1043.1 | -610.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
