group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

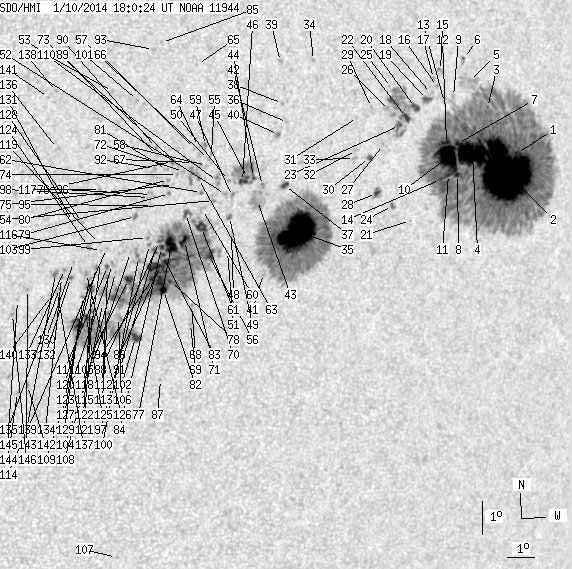

11944	464.20	2676.95	301.03	1710.61	-9.71	99.80	38.72	259.14	0.6279	535.4	171.3

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-01-10 18:00:24 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	2.04	1313.42	1.41	893.13	-8.16	105.36	44.27	262.49	0.6993	849.0	316.7
2	180.34	-1.00	123.89	-1.00	-8.74	104.98	43.89	261.63	0.6950	1243.0	999999
3	0.76	-1.00	0.52	-1.00	-6.86	104.00	42.91	264.31	0.6817	692.9	999999
4	51.31	-1.00	34.42	-1.00	-8.25	103.56	42.47	262.24	0.6768	1288.4	999999
5	0.00	16.82	0.00	11.20	-6.13	103.20	42.11	265.37	0.6713	420.0	407.3
6	0.42	2.72	0.28	1.80	-5.47	102.90	41.81	266.36	0.6673	-543.2	-434.5
7	1.78	-1.00	1.18	-1.00	-7.98	102.92	41.83	262.59	0.6684	1243.1	999999
8	2.29	-1.00	1.53	-1.00	-8.89	103.04	41.95	261.23	0.6707	923.9	999999
9	0.00	2.04	0.00	1.35	-6.60	102.61	41.52	264.65	0.6637	222.0	214.6
10	33.64	-1.00	22.24	-1.00	-8.38	102.61	41.52	261.96	0.6647	1340.3	999999
11	1.02	-1.00	0.68	-1.00	-8.91	102.68	41.59	261.17	0.6661	921.2	999999
12	3.57	-1.00	2.35	-1.00	-7.97	102.48	41.39	262.57	0.6627	1212.3	999999
13	0.00	1.36	0.00	0.89	-6.80	102.27	41.18	264.34	0.6594	443.0	486.0
14	1.27	-1.00	0.84	-1.00	-9.07	102.39	41.30	260.90	0.6624	722.0	999999
15	0.00	2.12	0.00	1.39	-5.86	102.02	40.93	265.76	0.6559	-559.0	-431.0
16	0.00	1.70	0.00	1.11	-6.34	101.95	40.86	265.03	0.6550	433.0	401.9
17	0.00	1.27	0.00	0.83	-6.11	101.77	40.68	265.37	0.6526	600.0	471.1
18	0.00	1.78	0.00	1.16	-6.55	101.73	40.64	264.69	0.6522	828.0	739.8
19	2.72	5.52	1.77	3.59	-6.74	101.59	40.51	264.40	0.6505	922.4	807.0
20	3.74	57.34	2.42	36.78	-6.99	101.15	40.06	263.98	0.6447	885.8	542.8
21	0.00	0.76	0.00	0.50	-10.34	101.38	40.29	258.84	0.6508	-394.0	-347.0
22	3.48	-20.00	2.24	-20.00	-7.30	100.83	39.75	263.48	0.6407	963.9	999999
23	1.87	-20.00	1.20	-20.00	-7.55	100.59	39.50	263.07	0.6375	989.9	999999
24	0.59	3.40	0.38	2.19	-9.92	100.62	39.53	259.36	0.6402	-493.6	-353.5
25	0.00	0.59	0.00	0.38	-6.45	100.17	39.08	264.80	0.6314	-49.0	-85.4
26	0.00	6.54	0.00	4.17	-7.13	100.16	39.07	263.72	0.6315	435.0	435.3
27	0.00	0.68	0.00	0.43	-8.14	100.04	38.95	262.10	0.6306	762.0	630.6
28	1.78	7.31	1.14	4.65	-9.60	99.95	38.86	259.78	0.6310	-537.3	-286.7
29	0.00	1.36	0.00	0.86	-7.07	99.47	38.38	263.76	0.6221	628.0	526.3
30	1.53	2.97	0.97	1.88	-8.55	99.55	38.46	261.40	0.6244	830.1	682.0
31	0.00	0.51	0.00	0.32	-7.39	98.97	37.88	263.21	0.6155	759.0	699.0
32	0.00	1.36	0.00	0.85	-8.36	99.03	37.95	261.64	0.6172	802.0	636.1
33	0.00	2.21	0.00	1.39	-8.60	98.99	37.90	261.24	0.6168	743.0	635.1
34	0.00	1.19	0.00	0.73	-5.77	97.19	36.10	265.80	0.5901	-518.0	-425.2
35	70.16	437.89	43.15	269.15	-10.84	97.13	36.05	257.22	0.5949	1450.1	392.9
36	0.00	1.27	0.00	0.77	-7.64	96.39	35.31	262.54	0.5799	676.0	507.1
37	2.72	4.50	1.65	2.74	-9.50	96.48	35.39	259.35	0.5835	913.3	744.9
38	0.00	0.93	0.00	0.57	-7.09	96.16	35.07	263.48	0.5762	-612.0	-509.4
39	0.00	2.12	0.00	1.28	-5.85	95.99	34.90	265.62	0.5731	-799.0	-653.1
40	0.34	3.48	0.21	2.11	-8.01	96.10	35.01	261.87	0.5762	451.5	186.4
41	0.00	2.72	0.00	1.65	-12.14	96.06	34.97	254.76	0.5830	227.0	266.3
42	0.00	1.95	0.00	1.18	-9.53	95.68	34.59	259.14	0.5723	870.0	718.8
43	0.00	23.27	0.00	14.02	-9.98	95.55	34.46	258.33	0.5713	435.0	346.5
44	1.19	42.90	0.71	25.65	-9.31	95.33	34.24	259.47	0.5670	-680.7	-472.9
45	0.76	-44.00	0.46	-44.00	-9.32	95.11	34.02	259.41	0.5639	-1005.4	999999
46	2.89	-44.00	1.73	-44.00	-9.44	94.95	33.86	259.15	0.5618	-989.5	999999
47	0.00	2.63	0.00	1.57	-9.90	94.64	33.55	258.27	0.5582	-830.0	-588.1
48	0.00	3.31	0.00	1.98	-11.03	94.74	33.65	256.30	0.5620	594.0	455.7
49	0.00	3.14	0.00	1.87	-10.50	94.60	33.51	257.20	0.5589	442.0	570.2
50	0.00	1.53	0.00	0.91	-9.43	94.44	33.35	259.07	0.5546	-807.0	-690.0
51	0.00	0.93	0.00	0.56	-11.54	94.66	33.57	255.38	0.5621	466.0	366.7
52	0.00	2.55	0.00	1.51	-9.85	94.38	33.29	258.30	0.5545	-861.0	-562.9
53	0.00	7.65	0.00	4.52	-9.48	94.05	32.96	258.90	0.5491	-748.0	-592.6
54	0.00	1.61	0.00	0.95	-10.04	93.97	32.88	257.86	0.5490	257.0	69.3
55	0.00	1.36	0.00	0.80	-8.66	93.76	32.67	260.34	0.5435	-590.0	-476.7
56	6.03	429.40	3.58	251.47	-11.68	94.03	32.94	254.93	0.5537	399.4	-148.9
57	0.00	1.19	0.00	0.70	-8.84	93.67	32.58	259.99	0.5425	-605.0	-493.9
58	0.00	1.19	0.00	0.70	-9.02	93.61	32.53	259.64	0.5420	-608.0	-452.1
59	0.00	3.57	0.00	2.10	-8.43	93.52	32.43	260.71	0.5397	-712.0	-591.4
60	0.00	2.97	0.00	1.75	-10.32	93.61	32.52	257.25	0.5445	-108.0	-233.7
61	7.48	-56.00	4.41	-56.00	-10.86	93.64	32.55	256.29	0.5461	-742.2	999999
62	0.00	2.04	0.00	1.20	-9.82	93.52	32.43	258.15	0.5421	-828.0	-621.1
63	0.34	15.80	0.20	9.26	-9.41	93.37	32.28	258.86	0.5392	-849.5	-791.8
64	0.00	0.85	0.00	0.50	-8.47	93.28	32.19	260.60	0.5362	-568.0	-599.3
65	0.00	0.76	0.00	0.45	-6.05	93.05	31.97	265.11	0.5305	-625.0	-526.7
66	0.00	1.02	0.00	0.60	-8.53	93.14	32.06	260.45	0.5344	-679.0	-576.2
67	0.00	1.10	0.00	0.65	-8.95	93.15	32.06	259.68	0.5351	-764.0	-634.8
68	0.00	1.19	0.00	0.71	-13.16	93.59	32.50	252.14	0.5519	704.0	690.4
69	0.00	1.78	0.00	1.06	-13.73	93.64	32.55	251.16	0.5545	777.0	637.2
70	1.70	6.63	1.00	3.89	-10.46	93.03	31.94	256.83	0.5364	-904.0	-622.5
71	6.37	-56.00	3.74	-56.00	-11.27	93.09	32.00	255.37	0.5392	-868.2	999999
72	0.00	1.61	0.00	0.94	-9.23	92.82	31.73	259.09	0.5309	-731.0	-708.1
73	0.00	1.10	0.00	0.64	-9.05	92.63	31.54	259.36	0.5278	-824.0	-635.0
74	0.00	1.19	0.00	0.69	-9.32	92.62	31.53	258.86	0.5281	-933.0	-757.2
75	0.00	0.85	0.00	0.49	-9.62	92.51	31.42	258.26	0.5271	-750.0	-601.4
76	0.59	1.87	0.35	1.09	-8.94	92.41	31.32	259.52	0.5243	-852.7	-737.7
77	16.99	-56.00	9.93	-56.00	-11.40	92.64	31.55	254.98	0.5333	-998.3	999999
78	1.19	-56.00	0.70	-56.00	-12.50	92.75	31.66	253.00	0.5380	-450.4	999999
79	0.00	1.44	0.00	0.84	-9.89	92.40	31.31	257.72	0.5261	-980.0	-783.9
80	0.00	1.70	0.00	0.99	-9.48	92.32	31.23	258.48	0.5241	-907.0	-805.1
81	0.00	2.04	0.00	1.18	-9.19	92.22	31.13	259.02	0.5221	-685.0	-591.2
82	3.91	-56.00	2.29	-56.00	-12.78	92.54	31.45	252.41	0.5359	982.5	999999
83	1.87	-56.00	1.09	-56.00	-11.74	92.37	31.28	254.26	0.5303	-819.6	999999
84	1.95	-56.00	1.14	-56.00	-11.50	92.30	31.21	254.67	0.5287	-1034.2	999999
85	0.00	0.93	0.00	0.54	-5.45	91.77	30.68	266.20	0.5111	-682.0	-500.9
86	17.58	-56.00	10.26	-56.00	-12.04	92.33	31.24	253.69	0.5307	-812.1	999999
87	0.00	0.93	0.00	0.55	-15.44	92.84	31.75	247.79	0.5501	748.0	567.0
88	0.51	-56.00	0.30	-56.00	-11.33	92.21	31.12	254.97	0.5269	-1046.3	999999
89	0.00	0.59	0.00	0.34	-8.78	91.87	30.78	259.71	0.5162	-653.0	-596.1
90	0.00	1.19	0.00	0.69	-8.55	91.82	30.73	260.15	0.5149	-897.0	-748.4
91	1.53	-56.00	0.89	-56.00	-11.63	92.07	30.98	254.35	0.5257	-1016.2	999999
92	0.00	1.36	0.00	0.78	-9.17	91.80	30.72	258.94	0.5159	-807.0	-718.4
93	0.00	1.61	0.00	0.93	-5.66	91.50	30.42	265.76	0.5072	-758.0	-619.3
94	2.46	-56.00	1.43	-56.00	-12.43	92.10	31.01	252.86	0.5287	-670.1	999999
95	0.00	1.10	0.00	0.64	-10.27	91.84	30.76	256.85	0.5188	-820.0	-657.8
96	0.00	3.14	0.00	1.82	-9.94	91.78	30.69	257.45	0.5171	-568.0	-728.8
97	0.00	1.87	0.00	1.08	-11.43	91.87	30.78	254.66	0.5223	-1043.0	-775.3
98	0.00	1.02	0.00	0.59	-10.04	91.72	30.63	257.26	0.5164	-888.0	-739.2
99	0.00	1.19	0.00	0.69	-11.22	91.78	30.69	255.01	0.5203	-813.0	-772.9
100	0.00	9.17	0.00	5.31	-11.83	91.53	30.45	253.78	0.5186	-843.0	-761.2
101	0.00	0.93	0.00	0.53	-7.19	91.05	29.96	262.69	0.5016	-812.0	-681.1
102	4.93	37.38	2.87	21.69	-14.21	91.75	30.66	249.43	0.5302	980.7	244.8
103	0.00	2.80	0.00	1.61	-10.61	91.29	30.20	256.01	0.5116	-965.0	-784.2
104	0.00	0.93	0.00	0.54	-11.69	91.24	30.15	253.92	0.5139	-751.0	-703.5
105	4.50	-56.00	2.60	-56.00	-12.49	91.27	30.18	252.41	0.5170	-919.3	999999
106	0.00	5.61	0.00	3.24	-13.64	91.07	29.98	250.16	0.5184	125.0	49.7
107	0.00	0.85	0.00	0.51	-20.89	92.33	31.24	238.35	0.5714	-471.0	-438.4
108	0.00	0.93	0.00	0.54	-12.30	90.79	29.70	252.57	0.5095	-786.0	-670.5
109	0.00	2.38	0.00	1.36	-12.07	90.66	29.57	252.96	0.5068	-746.0	-683.2
110	0.00	1.87	0.00	1.06	-6.95	90.18	29.09	263.04	0.4882	-732.0	-594.6
111	0.59	2.89	0.34	1.65	-12.13	90.49	29.40	252.76	0.5046	-1010.1	-833.7
112	0.34	2.04	0.19	1.17	-12.43	90.53	29.44	252.20	0.5062	-999.5	-832.6
113	0.00	1.53	0.00	0.88	-13.53	90.67	29.58	250.17	0.5123	-662.0	-577.7
114	0.00	0.85	0.00	0.49	-11.60	90.39	29.31	253.76	0.5015	-760.0	-654.7
115	0.00	0.68	0.00	0.39	-13.24	90.46	29.37	250.62	0.5081	-598.0	-538.4
116	0.00	1.19	0.00	0.68	-11.66	90.23	29.14	253.56	0.4993	-936.0	-728.6
117	0.00	1.78	0.00	1.01	-9.86	90.01	28.92	257.08	0.4908	-850.0	-646.6
118	0.00	1.19	0.00	0.68	-12.02	90.24	29.15	252.87	0.5006	-657.0	-563.6
119	0.00	0.85	0.00	0.48	-11.46	90.14	29.05	253.93	0.4973	-550.0	-495.4
120	0.00	2.12	0.00	1.21	-12.17	90.12	29.03	252.51	0.4993	-931.0	-802.9
121	0.00	2.72	0.00	1.56	-13.49	90.14	29.05	249.98	0.5047	-866.0	-696.4
122	0.85	6.54	0.49	3.73	-12.86	90.03	28.94	251.13	0.5006	-916.4	-851.9
123	0.00	1.36	0.00	0.78	-12.54	89.92	28.83	251.71	0.4978	-931.0	-823.5
124	0.00	2.63	0.00	1.50	-11.56	89.77	28.68	253.57	0.4922	-896.0	-796.8
125	2.21	75.86	1.26	43.48	-13.67	89.96	28.87	249.53	0.5028	-998.6	-234.7
126	0.00	2.12	0.00	1.21	-12.36	89.79	28.70	251.99	0.4954	-994.0	-838.5
127	0.00	2.21	0.00	1.26	-13.05	89.77	28.69	250.64	0.4977	-914.0	-721.1
128	0.00	1.78	0.00	1.01	-10.85	89.49	28.40	254.87	0.4859	-811.0	-712.0
129	7.73	-125.00	4.41	-125.00	-13.89	89.71	28.62	248.97	0.5002	-1044.2	999999
130	0.00	1.27	0.00	0.72	-12.05	89.31	28.22	252.38	0.4872	-784.0	-662.3
131	0.00	0.93	0.00	0.53	-10.83	89.15	28.06	254.77	0.4808	-708.0	-540.8
132	0.34	1.87	0.19	1.06	-12.50	89.26	28.17	251.46	0.4882	-925.2	-742.7
133	0.00	1.36	0.00	0.77	-12.27	89.03	27.94	251.81	0.4839	-877.0	-724.2
134	0.00	1.27	0.00	0.72	-12.51	88.95	27.86	251.29	0.4838	-910.0	-762.1
135	0.00	1.53	0.00	0.86	-12.84	88.92	27.83	250.61	0.4846	-1036.0	-740.2
136	0.00	2.21	0.00	1.23	-8.69	88.45	27.36	259.02	0.4647	-759.0	-642.2
137	0.00	3.06	0.00	1.73	-12.96	88.87	27.78	250.34	0.4843	-747.0	-543.4
138	0.00	1.36	0.00	0.76	-7.01	88.30	27.21	262.61	0.4595	-764.0	-612.4
139	0.00	3.40	0.00	1.92	-12.40	88.73	27.65	251.40	0.4802	-1053.0	-802.5
140	0.00	1.02	0.00	0.58	-13.05	88.68	27.59	250.04	0.4819	-891.0	-737.9
141	0.00	0.93	0.00	0.52	-7.20	88.04	26.95	262.16	0.4558	-775.0	-549.5
142	0.00	1.53	0.00	0.87	-15.77	88.21	27.12	244.41	0.4885	-724.0	-590.8
143	0.00	1.27	0.00	0.71	-12.90	87.84	26.75	249.89	0.4692	-798.0	-645.4
144	0.00	1.27	0.00	0.72	-15.99	87.90	26.81	243.76	0.4854	-735.0	-642.8
145	0.00	1.19	0.00	0.67	-13.24	87.54	26.45	249.01	0.4664	-801.0	-596.9
146	0.00	1.36	0.00	0.76	-13.66	87.42	26.33	248.07	0.4666	-858.0	-715.9

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
