SDO HMI 2014-01-10 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.49 | 483.29 | 85.84 | 329.67 | 9.00 | 101.25 | 41.27 | 287.92 | 0.6860 | 135.2 | 137.8 | |
|
previous
or next observation for the same group /

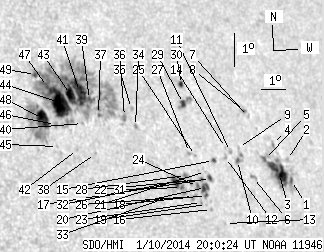

back to the solar disc SDO HMI 2014-01-10 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 48.42 | 1.04 | 36.78 | 7.55 | 108.44 | 48.46 | 283.50 | 0.7654 | -224.4 | -263.5 | |
| 0.00 | 1.78 | 0.00 | 1.37 | 8.18 | 108.36 | 48.38 | 284.32 | 0.7660 | 147.0 | 110.8 | |
| 22.68 | -1.00 | 17.21 | -1.00 | 7.74 | 107.93 | 47.95 | 283.87 | 0.7602 | -728.9 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.55 | 8.60 | 107.76 | 47.77 | 285.03 | 0.7605 | -144.0 | -271.5 | |
| 1.27 | -1.00 | 0.96 | -1.00 | 8.13 | 107.32 | 47.34 | 284.55 | 0.7545 | -727.7 | 999999 | |
| 0.00 | 2.89 | 0.00 | 2.14 | 7.56 | 106.76 | 46.77 | 283.97 | 0.7467 | -629.0 | -489.9 | |
| 0.00 | 1.10 | 0.00 | 0.83 | 9.40 | 106.84 | 46.85 | 286.34 | 0.7525 | -422.0 | -362.2 | |
| 0.59 | 1.44 | 0.44 | 1.08 | 9.54 | 106.69 | 46.70 | 286.58 | 0.7512 | -657.0 | -595.0 | |
| 0.00 | 1.02 | 0.00 | 0.75 | 8.43 | 106.24 | 46.25 | 285.27 | 0.7431 | -471.0 | -395.2 | |
| 1.27 | 5.44 | 0.94 | 4.00 | 8.03 | 106.13 | 46.15 | 284.78 | 0.7409 | -747.0 | -511.4 | |
| 0.00 | 2.12 | 0.00 | 1.55 | 8.29 | 105.87 | 45.89 | 285.20 | 0.7386 | -523.0 | -450.3 | |
| 0.00 | 1.53 | 0.00 | 1.11 | 8.10 | 105.63 | 45.64 | 285.02 | 0.7353 | -900.0 | -736.2 | |
| 0.00 | 1.02 | 0.00 | 0.73 | 6.11 | 105.37 | 45.38 | 282.43 | 0.7271 | -529.0 | -466.2 | |
| 0.00 | 0.25 | 0.00 | 0.19 | 8.40 | 105.67 | 45.69 | 285.41 | 0.7366 | -540.0 | -502.3 | |
| 1.02 | 2.12 | 0.73 | 1.53 | 7.98 | 105.10 | 45.12 | 285.03 | 0.7289 | -699.8 | -551.6 | |
| 0.00 | 1.02 | 0.00 | 0.73 | 6.50 | 104.82 | 44.84 | 283.11 | 0.7217 | -539.0 | -450.5 | |
| 1.44 | 3.06 | 1.03 | 2.19 | 7.43 | 104.90 | 44.91 | 284.35 | 0.7250 | -659.6 | -491.7 | |
| 0.93 | 10.79 | 0.67 | 7.68 | 6.91 | 104.66 | 44.68 | 283.72 | 0.7209 | -611.0 | -586.5 | |
| 0.00 | 0.85 | 0.00 | 0.60 | 6.64 | 104.63 | 44.64 | 283.36 | 0.7198 | -476.0 | -416.0 | |
| 4.16 | -18.00 | 2.97 | -18.00 | 7.15 | 104.65 | 44.67 | 284.05 | 0.7214 | -760.1 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.03 | 7.63 | 104.71 | 44.73 | 284.68 | 0.7234 | -489.0 | -401.3 | |
| 0.68 | -18.00 | 0.48 | -18.00 | 7.38 | 104.51 | 44.53 | 284.41 | 0.7204 | -838.4 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.78 | 6.69 | 104.42 | 44.44 | 283.49 | 0.7175 | -650.0 | -578.5 | |
| 0.00 | 2.63 | 0.00 | 1.87 | 7.16 | 104.32 | 44.33 | 284.17 | 0.7175 | -860.0 | -774.8 | |
| 0.00 | 1.02 | 0.00 | 0.73 | 8.09 | 104.36 | 44.37 | 285.42 | 0.7206 | -516.0 | -465.6 | |
| 0.00 | 3.06 | 0.00 | 2.16 | 6.85 | 104.11 | 44.13 | 283.81 | 0.7142 | -701.0 | -627.0 | |
| 0.00 | 0.42 | 0.00 | 0.30 | 8.17 | 104.12 | 44.13 | 285.61 | 0.7180 | -603.0 | -561.8 | |
| 0.59 | 5.44 | 0.42 | 3.83 | 7.47 | 103.86 | 43.87 | 284.73 | 0.7129 | -597.7 | -525.8 | |
| 2.72 | 9.68 | 1.94 | 6.92 | 9.65 | 104.10 | 44.11 | 287.61 | 0.7223 | 681.1 | 413.8 | |
| 1.78 | 2.89 | 1.28 | 2.07 | 10.23 | 104.11 | 44.13 | 288.37 | 0.7244 | 628.0 | 536.8 | |
| 0.85 | 14.86 | 0.60 | 10.40 | 7.10 | 103.64 | 43.66 | 284.29 | 0.7094 | -864.8 | -665.9 | |
| 5.44 | -31.00 | 3.80 | -31.00 | 7.27 | 103.42 | 43.44 | 284.60 | 0.7071 | -891.7 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.53 | 6.80 | 103.12 | 43.13 | 284.05 | 0.7022 | -688.0 | -589.1 | |
| 0.00 | 1.53 | 0.00 | 1.05 | 8.85 | 102.00 | 42.02 | 287.29 | 0.6951 | -553.0 | -537.4 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 9.39 | 101.92 | 41.94 | 288.08 | 0.6960 | -540.0 | -525.1 | |
| 0.00 | 4.25 | 0.00 | 2.90 | 9.14 | 101.60 | 41.62 | 287.84 | 0.6913 | -245.0 | -259.0 | |
| 0.34 | 284.64 | 0.23 | 189.52 | 9.15 | 100.57 | 40.59 | 288.28 | 0.6788 | 563.8 | 266.9 | |
| 0.00 | 0.85 | 0.00 | 0.57 | 7.96 | 100.30 | 40.31 | 286.68 | 0.6713 | 568.0 | 480.8 | |
| 1.44 | -37.00 | 0.97 | -37.00 | 9.59 | 100.28 | 40.30 | 289.02 | 0.6769 | 639.5 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.68 | 8.84 | 99.90 | 39.92 | 288.12 | 0.6695 | 479.0 | 394.6 | |
| 19.28 | -37.00 | 12.88 | -37.00 | 9.81 | 99.92 | 39.94 | 289.50 | 0.6734 | 729.5 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.62 | 8.05 | 99.61 | 39.62 | 287.09 | 0.6630 | 589.0 | 416.4 | |
| 8.58 | -37.00 | 5.70 | -37.00 | 9.71 | 99.55 | 39.57 | 289.51 | 0.6685 | 864.7 | 999999 | |
| 32.19 | -37.00 | 21.21 | -37.00 | 9.44 | 99.09 | 39.11 | 289.33 | 0.6618 | 1010.6 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.61 | 8.10 | 98.84 | 38.86 | 287.48 | 0.6536 | 398.0 | 284.0 | |
| 0.00 | 2.29 | 0.00 | 1.50 | 8.77 | 98.85 | 38.86 | 288.46 | 0.6561 | 715.0 | 607.5 | |
| 1.10 | -37.00 | 0.72 | -37.00 | 9.91 | 98.69 | 38.71 | 290.19 | 0.6587 | 933.5 | 999999 | |
| 13.51 | 55.30 | 8.79 | 35.86 | 8.93 | 98.37 | 38.39 | 288.90 | 0.6507 | 1029.0 | 598.6 | |
| 1.27 | -37.00 | 0.83 | -37.00 | 10.25 | 98.28 | 38.30 | 290.89 | 0.6551 | -182.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
