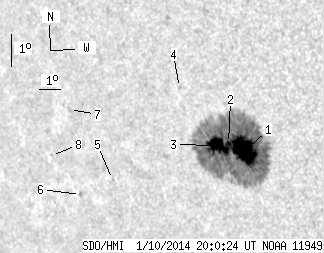

SDO HMI 2014-01-10 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.97 | 396.84 | 43.25 | 287.35 | -16.11 | 13.98 | -46.00 | 108.34 | 0.7303 | 966.8 | 265.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.99 | 390.48 | 27.94 | 282.15 | -16.19 | 14.48 | -45.50 | 108.56 | 0.7249 | 1230.4 | 278.3 | |
| 1.78 | -1.00 | 1.29 | -1.00 | -15.95 | 13.85 | -46.13 | 108.09 | 0.7316 | 1030.0 | 999999 | |
| 19.20 | -1.00 | 14.02 | -1.00 | -15.98 | 13.35 | -46.63 | 108.03 | 0.7373 | 909.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -14.17 | 12.17 | -47.82 | 105.38 | 0.7475 | 565.0 | 500.9 | |
| 0.00 | 0.93 | 0.00 | 0.76 | -16.74 | 8.12 | -51.86 | 108.02 | 0.7943 | -663.0 | -520.2 | |
| 0.00 | 1.53 | 0.00 | 1.29 | -17.09 | 6.34 | -53.65 | 108.17 | 0.8125 | -554.0 | -510.0 | |
| 0.00 | 1.78 | 0.00 | 1.48 | -14.53 | 6.76 | -53.23 | 105.08 | 0.8053 | -694.0 | -568.9 | |
| 0.00 | 0.76 | 0.00 | 0.66 | -15.85 | 5.32 | -54.66 | 106.51 | 0.8207 | -462.0 | -364.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
