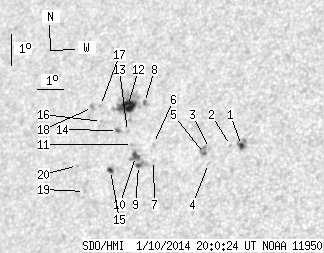

SDO HMI 2014-01-10 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.64 | 89.86 | 16.68 | 58.33 | 16.53 | 25.03 | -34.96 | 58.23 | 0.6481 | 201.4 | 49.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.12 | 7.90 | 1.31 | 4.88 | 15.82 | 28.80 | -31.18 | 56.41 | 0.6002 | -963.3 | -672.4 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 15.84 | 28.40 | -31.58 | 56.71 | 0.6050 | -528.0 | -458.7 | |
| 0.00 | 0.93 | 0.00 | 0.58 | 15.78 | 27.66 | -32.33 | 57.39 | 0.6132 | -630.0 | -448.3 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 15.31 | 27.70 | -32.28 | 58.03 | 0.6095 | -785.0 | -639.6 | |
| 0.51 | 5.86 | 0.32 | 3.67 | 15.63 | 27.50 | -32.48 | 57.72 | 0.6140 | -876.3 | -625.9 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 16.02 | 25.55 | -34.43 | 58.59 | 0.6392 | 687.0 | 603.6 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 15.49 | 25.65 | -34.33 | 59.26 | 0.6346 | -440.0 | -309.7 | |
| 0.93 | 2.97 | 0.61 | 1.94 | 17.34 | 24.94 | -35.04 | 57.21 | 0.6543 | 886.5 | 733.1 | |
| 1.53 | 12.91 | 0.98 | 8.31 | 15.35 | 25.12 | -34.86 | 59.82 | 0.6400 | -813.0 | -632.4 | |
| 3.99 | -9.00 | 2.58 | -9.00 | 15.64 | 24.95 | -35.03 | 59.53 | 0.6437 | -632.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 16.02 | 24.76 | -35.22 | 59.12 | 0.6482 | 715.0 | 603.9 | |
| 13.68 | 40.94 | 9.00 | 26.96 | 17.24 | 24.32 | -35.67 | 57.78 | 0.6606 | 943.2 | 346.2 | |
| 0.00 | 1.02 | 0.00 | 0.67 | 16.44 | 24.49 | -35.50 | 58.73 | 0.6539 | 777.0 | 587.3 | |
| 0.93 | 2.12 | 0.61 | 1.39 | 16.49 | 24.10 | -35.89 | 58.93 | 0.6585 | 739.4 | 522.1 | |
| 1.95 | 3.31 | 1.27 | 2.16 | 15.24 | 24.09 | -35.89 | 60.65 | 0.6513 | -635.7 | -459.2 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 16.81 | 23.42 | -36.57 | 58.95 | 0.6680 | 753.0 | 682.2 | |
| 0.00 | 1.19 | 0.00 | 0.79 | 17.32 | 23.26 | -36.72 | 58.37 | 0.6728 | 708.0 | 542.8 | |
| 0.00 | 2.89 | 0.00 | 1.93 | 17.27 | 22.96 | -37.02 | 58.63 | 0.6757 | 758.0 | 599.1 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 14.63 | 23.22 | -36.76 | 62.05 | 0.6579 | 563.0 | 445.0 | |
| 0.00 | 1.02 | 0.00 | 0.68 | 15.46 | 22.79 | -37.20 | 61.17 | 0.6675 | -425.0 | -285.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
