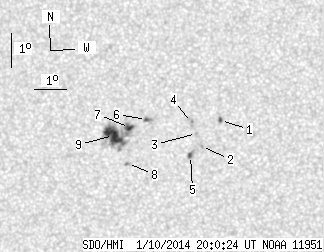

SDO HMI 2014-01-10 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.88 | 62.09 | 12.98 | 32.31 | -13.12 | 44.35 | -15.64 | 121.34 | 0.3086 | -367.4 | -251.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.93 | 2.04 | 0.48 | 1.05 | -12.75 | 47.09 | -12.89 | 124.97 | 0.2667 | 952.2 | 788.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -13.51 | 46.46 | -13.52 | 126.05 | 0.2825 | 945.0 | 715.9 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -13.12 | 46.33 | -13.66 | 124.64 | 0.2807 | 940.0 | 722.0 | |
| 0.00 | 3.48 | 0.00 | 1.80 | -12.79 | 46.19 | -13.79 | 123.38 | 0.2797 | 941.0 | 735.1 | |
| 1.44 | 3.48 | 0.75 | 1.80 | -13.77 | 46.10 | -13.88 | 126.13 | 0.2898 | 940.9 | 826.1 | |
| 1.02 | 4.08 | 0.53 | 2.11 | -12.67 | 44.79 | -15.19 | 120.67 | 0.2985 | -1082.2 | -826.6 | |
| 3.40 | 44.51 | 1.77 | 23.22 | -12.90 | 44.25 | -15.74 | 120.50 | 0.3082 | -1164.0 | -653.4 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -13.98 | 44.11 | -15.87 | 123.28 | 0.3189 | 879.0 | 698.8 | |
| 18.09 | -7.00 | 9.45 | -7.00 | -13.13 | 43.73 | -16.26 | 120.38 | 0.3174 | -1036.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
