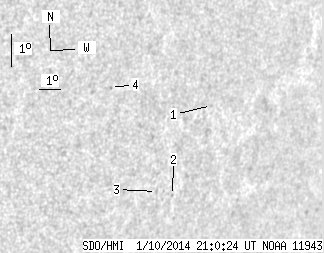

SDO HMI 2014-01-10 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.73 | 0.00 | 2.92 | -15.85 | 109.52 | 50.09 | 252.81 | 0.7744 | -496.5 | -448.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.55 | -14.41 | 111.53 | 52.10 | 254.94 | 0.7937 | -674.0 | -579.9 | |
| 0.00 | 0.93 | 0.00 | 0.75 | -17.19 | 110.59 | 51.16 | 251.29 | 0.7879 | -349.0 | -332.1 | |
| 0.00 | 1.10 | 0.00 | 0.87 | -17.11 | 109.78 | 50.35 | 251.24 | 0.7794 | -591.0 | -475.8 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -14.12 | 106.67 | 47.24 | 254.59 | 0.7410 | -372.0 | -436.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
