group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11944	466.28	2579.69	308.21	1689.73	-9.71	99.88	40.45	259.45	0.6505	543.4	186.1

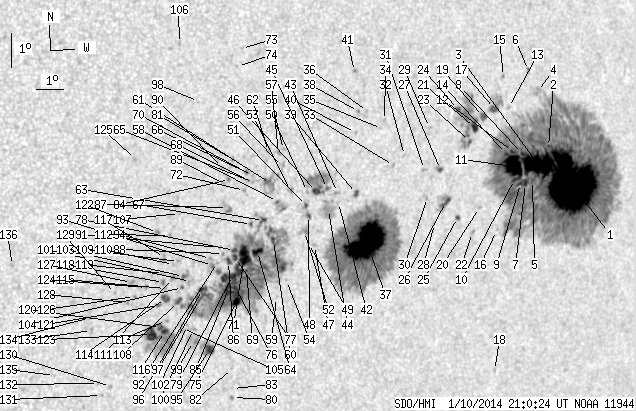

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-01-10 21:00:24 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	169.63	1273.21	119.87	889.66	-8.76	105.01	45.58	261.74	0.7157	1157.5	322.2
2	0.85	-1.00	0.59	-1.00	-7.72	103.89	44.46	263.15	0.7014	948.8	999999
3	47.57	-1.00	32.78	-1.00	-8.27	103.55	44.12	262.34	0.6974	1232.8	999999
4	0.00	5.86	0.00	4.01	-6.13	103.25	43.82	265.42	0.6929	697.0	470.1
5	1.78	-1.00	1.23	-1.00	-8.76	103.37	43.94	261.63	0.6955	792.0	999999
6	0.00	1.78	0.00	1.21	-5.52	102.82	43.39	266.30	0.6875	-455.0	-382.5
7	2.38	-1.00	1.63	-1.00	-8.86	103.09	43.66	261.46	0.6922	907.4	999999
8	1.10	-1.00	0.75	-1.00	-7.98	102.84	43.41	262.72	0.6885	1074.5	999999
9	1.36	-1.00	0.93	-1.00	-8.87	102.89	43.45	261.43	0.6896	900.7	999999
10	1.78	-1.00	1.21	-1.00	-8.76	102.62	43.19	261.56	0.6862	1018.0	999999
11	28.29	-1.00	19.17	-1.00	-8.38	102.53	43.10	262.11	0.6848	1293.9	999999
12	2.46	-1.00	1.67	-1.00	-7.94	102.43	43.00	262.75	0.6833	1139.2	999999
13	0.00	1.36	0.00	0.91	-6.65	102.12	42.68	264.63	0.6787	617.0	552.4
14	0.76	-1.00	0.52	-1.00	-8.01	102.19	42.76	262.63	0.6803	1283.1	999999
15	0.00	1.44	0.00	0.97	-5.75	101.82	42.39	265.96	0.6749	-380.0	-234.7
16	0.00	0.68	0.00	0.46	-10.30	102.12	42.69	259.25	0.6814	-402.0	-294.8
17	3.48	16.90	2.32	11.28	-6.71	101.56	42.13	264.53	0.6716	926.3	567.7
18	0.00	1.36	0.00	0.94	-14.46	102.89	43.46	253.39	0.6975	470.0	393.8
19	2.55	71.44	1.69	46.90	-6.96	101.14	41.71	264.13	0.6663	908.9	578.4
20	0.00	0.85	0.00	0.57	-9.65	101.33	41.90	260.11	0.6707	726.0	656.1
21	3.91	-19.00	2.58	-19.00	-7.30	100.82	41.39	263.60	0.6623	880.2	999999
22	0.00	2.21	0.00	1.47	-10.40	101.17	41.74	258.97	0.6694	-310.0	-261.0
23	0.93	-19.00	0.61	-19.00	-7.73	100.67	41.24	262.95	0.6606	725.3	999999
24	1.78	-19.00	1.16	-19.00	-6.80	100.14	40.71	264.33	0.6531	-414.6	999999
25	1.19	2.55	0.78	1.68	-9.99	100.50	41.07	259.50	0.6604	-524.6	-323.9
26	4.25	13.00	2.77	8.47	-9.57	99.96	40.53	260.07	0.6529	-356.5	-53.0
27	1.27	3.91	0.83	2.53	-8.60	99.64	40.21	261.52	0.6477	737.7	694.7
28	0.00	0.51	0.00	0.33	-10.21	99.62	40.19	259.04	0.6493	377.0	388.0
29	0.00	1.10	0.00	0.71	-7.38	99.07	39.64	263.37	0.6392	552.0	547.1
30	0.00	1.19	0.00	0.77	-9.45	99.24	39.81	260.16	0.6433	638.0	563.4
31	0.00	2.29	0.00	1.47	-8.63	99.02	39.59	261.41	0.6395	756.0	625.9
32	0.00	1.44	0.00	0.92	-8.25	98.20	38.77	261.92	0.6282	519.0	451.2
33	0.00	1.44	0.00	0.91	-8.56	97.82	38.39	261.38	0.6233	648.0	501.8
34	0.00	1.53	0.00	0.96	-7.25	97.33	37.90	263.46	0.6157	686.0	574.7
35	0.00	0.51	0.00	0.32	-7.49	97.24	37.81	263.06	0.6146	633.0	553.5
36	0.00	1.27	0.00	0.79	-7.01	96.67	37.24	263.80	0.6065	826.0	567.2
37	85.62	424.80	53.76	266.64	-10.85	97.09	37.66	257.58	0.6167	1340.9	356.5
38	0.00	1.02	0.00	0.63	-7.03	96.34	36.91	263.75	0.6018	-557.0	-445.8
39	1.70	3.23	1.06	2.01	-9.45	96.52	37.09	259.76	0.6068	858.5	695.6
40	0.00	0.93	0.00	0.58	-7.65	96.28	36.85	262.71	0.6016	525.0	528.1
41	0.00	1.44	0.00	0.89	-5.86	96.09	36.66	265.70	0.5979	-779.0	-652.6
42	0.00	1.10	0.00	0.68	-9.74	95.89	36.46	259.17	0.5985	698.0	621.2
43	0.00	2.29	0.00	1.41	-9.45	95.81	36.38	259.65	0.5971	764.0	628.5
44	0.00	21.15	0.00	13.00	-9.96	95.54	36.11	258.73	0.5942	437.0	331.3
45	0.59	39.67	0.36	24.21	-9.35	95.43	36.00	259.75	0.5916	-622.6	-438.9
46	3.74	-45.00	2.28	-45.00	-9.45	95.04	35.61	259.51	0.5863	-970.2	999999
47	0.00	2.12	0.00	1.30	-11.05	95.17	35.74	256.83	0.5910	258.0	220.1
48	1.02	2.04	0.62	1.24	-10.17	94.83	35.40	258.24	0.5846	889.4	707.2
49	0.00	0.85	0.00	0.52	-11.00	94.94	35.51	256.86	0.5877	593.0	492.6
50	0.00	1.10	0.00	0.67	-9.46	94.71	35.28	259.42	0.5817	-767.0	-627.9
51	0.85	2.63	0.52	1.60	-9.88	94.72	35.29	258.71	0.5826	-584.6	-269.4
52	0.00	6.80	0.00	4.14	-10.65	94.74	35.31	257.40	0.5844	877.0	605.2
53	0.00	3.48	0.00	2.10	-9.46	94.09	34.65	259.31	0.5730	-782.0	-615.9
54	0.00	0.68	0.00	0.41	-12.13	94.29	34.86	254.77	0.5814	680.0	540.6
55	0.00	1.53	0.00	0.92	-8.26	93.70	34.27	261.35	0.5659	-558.0	-433.9
56	0.00	3.82	0.00	2.29	-8.76	93.72	34.29	260.47	0.5668	-461.0	-480.2
57	0.00	2.04	0.00	1.22	-8.38	93.54	34.11	261.11	0.5637	-775.0	-564.6
58	0.34	11.13	0.20	6.69	-9.80	93.65	34.22	258.62	0.5675	-605.0	9.5
59	0.00	0.59	0.00	0.36	-12.65	94.00	34.57	253.79	0.5788	600.0	461.7
60	2.12	431.43	1.28	257.34	-10.96	93.65	34.22	256.60	0.5698	-867.0	-160.2
61	0.00	22.09	0.00	13.20	-9.28	93.34	33.91	259.48	0.5622	-827.0	-690.3
62	0.00	2.04	0.00	1.22	-8.34	93.17	33.74	261.13	0.5584	-522.0	-548.2
63	2.04	-60.00	1.22	-60.00	-10.38	93.22	33.78	257.50	0.5624	-850.3	999999
64	6.20	-60.00	3.71	-60.00	-11.31	93.12	33.69	255.84	0.5631	-850.8	999999
65	0.00	1.10	0.00	0.66	-9.27	92.73	33.30	259.37	0.5535	-859.0	-725.4
66	0.00	0.85	0.00	0.50	-9.07	92.67	33.24	259.73	0.5523	-737.0	-621.5
67	0.59	2.12	0.35	1.26	-10.52	92.80	33.37	257.15	0.5569	-741.6	-517.2
68	0.00	1.36	0.00	0.81	-9.22	92.55	33.11	259.43	0.5507	-766.0	-688.6
69	0.76	-60.00	0.46	-60.00	-11.89	92.80	33.37	254.72	0.5601	-458.7	999999
70	0.00	2.38	0.00	1.41	-8.99	92.45	33.02	259.83	0.5490	-927.0	-716.6
71	16.48	-60.00	9.81	-60.00	-11.45	92.66	33.23	255.47	0.5571	-972.1	999999
72	0.00	1.53	0.00	0.90	-9.52	92.43	33.00	258.86	0.5497	-909.0	-721.6
73	0.00	1.02	0.00	0.60	-5.34	91.98	32.55	266.50	0.5389	-421.0	-412.8
74	0.00	1.10	0.00	0.65	-5.87	91.87	32.44	265.50	0.5374	-671.0	-503.2
75	4.59	-60.00	2.74	-60.00	-12.82	92.57	33.14	253.00	0.5596	783.0	999999
76	1.36	-60.00	0.81	-60.00	-12.41	92.47	33.04	253.70	0.5570	-611.6	999999
77	2.46	-60.00	1.46	-60.00	-11.52	92.35	32.92	255.24	0.5529	-962.3	999999
78	1.87	-60.00	1.11	-60.00	-11.31	92.29	32.86	255.59	0.5515	-1006.0	999999
79	17.41	-60.00	10.34	-60.00	-12.05	92.31	32.88	254.27	0.5538	-806.6	999999
80	0.00	1.44	0.00	0.87	-15.69	92.90	33.47	248.20	0.5740	733.0	661.9
81	0.00	1.78	0.00	1.05	-8.62	91.92	32.49	260.40	0.5407	-807.0	-651.5
82	0.00	1.27	0.00	0.77	-14.82	92.74	33.31	249.60	0.5687	638.0	494.2
83	0.00	0.76	0.00	0.46	-15.42	92.85	33.42	248.63	0.5723	727.0	540.7
84	0.00	1.36	0.00	0.80	-9.22	91.87	32.44	259.29	0.5410	-823.0	-713.5
85	6.71	-60.00	3.98	-60.00	-12.45	92.23	32.79	253.54	0.5537	-520.2	999999
86	1.87	-60.00	1.11	-60.00	-11.64	92.12	32.69	254.94	0.5499	-929.2	999999
87	0.00	5.86	0.00	3.45	-10.05	91.89	32.46	257.77	0.5428	-699.0	-764.0
88	0.00	1.10	0.00	0.65	-11.41	91.91	32.48	255.29	0.5463	-892.0	-774.2
89	0.00	1.10	0.00	0.65	-9.34	91.67	32.24	259.01	0.5383	-826.0	-668.0
90	0.00	1.10	0.00	0.65	-8.87	91.59	32.16	259.87	0.5363	-817.0	-682.7
91	0.00	1.36	0.00	0.80	-11.24	91.74	32.31	255.55	0.5436	-546.0	-504.9
92	0.00	0.93	0.00	0.55	-11.69	91.73	32.30	254.73	0.5446	-827.0	-723.7
93	0.00	2.80	0.00	1.65	-11.78	91.56	32.13	254.50	0.5425	-943.0	-884.1
94	0.00	1.10	0.00	0.65	-11.58	91.47	32.03	254.84	0.5405	-795.0	-692.4
95	5.35	13.59	3.18	8.06	-14.29	91.82	32.39	250.13	0.5541	927.4	534.0
96	3.14	-60.00	1.85	-60.00	-12.51	91.30	31.87	253.09	0.5410	-919.2	999999
97	1.70	-60.00	1.00	-60.00	-12.81	91.24	31.81	252.52	0.5410	-714.1	999999
98	0.00	0.25	0.00	0.15	-6.95	90.58	31.15	263.34	0.5191	-676.0	-576.7
99	0.00	10.02	0.00	5.91	-14.07	91.21	31.78	250.24	0.5450	66.0	133.9
100	0.00	2.04	0.00	1.20	-13.71	91.16	31.72	250.86	0.5429	127.0	193.1
101	0.00	3.14	0.00	1.84	-12.29	90.85	31.42	253.32	0.5338	-805.0	-649.5
102	0.00	1.10	0.00	0.65	-13.60	90.92	31.49	250.96	0.5393	-343.0	-293.8
103	0.76	5.27	0.45	3.07	-12.15	90.58	31.15	253.48	0.5296	-910.9	-707.3
104	0.42	1.36	0.25	0.79	-12.47	90.59	31.16	252.87	0.5308	-884.2	-794.8
105	0.00	3.40	0.00	1.99	-13.70	90.76	31.33	250.71	0.5374	-500.0	-461.8
106	0.00	1.36	0.00	0.78	-5.27	89.82	30.39	266.58	0.5067	-774.0	-579.4
107	0.00	1.02	0.00	0.59	-10.28	90.22	30.79	256.86	0.5193	-687.0	-563.1
108	1.95	-60.00	1.14	-60.00	-12.90	90.51	31.07	252.06	0.5310	-881.2	999999
109	0.00	1.70	0.00	0.99	-11.71	90.35	30.92	254.21	0.5250	-884.0	-689.7
110	0.00	0.85	0.00	0.49	-11.80	90.19	30.76	253.97	0.5229	-763.0	-601.0
111	0.00	2.80	0.00	1.63	-12.22	90.20	30.77	253.19	0.5245	-928.0	-818.5
112	0.00	1.36	0.00	0.79	-10.95	89.95	30.51	255.50	0.5170	-622.0	-583.0
113	0.00	1.36	0.00	0.79	-13.48	90.16	30.73	250.84	0.5282	-851.0	-662.4
114	3.06	6.03	1.78	3.50	-12.82	90.04	30.61	252.00	0.5241	-929.1	-805.2
115	0.00	1.27	0.00	0.74	-12.53	90.00	30.57	252.54	0.5225	-894.0	-761.1
116	2.80	62.94	1.63	36.66	-13.81	90.14	30.71	250.22	0.5291	-726.5	-189.6
117	0.00	2.89	0.00	1.67	-11.61	89.85	30.42	254.21	0.5175	-817.0	-772.6
118	0.42	2.21	0.25	1.28	-12.35	89.90	30.47	252.83	0.5206	-916.8	-804.0
119	0.00	0.93	0.00	0.54	-12.08	89.87	30.44	253.32	0.5193	-769.0	-659.3
120	1.61	-116.00	0.94	-116.00	-13.69	89.98	30.55	250.36	0.5265	-993.8	999999
121	0.00	2.29	0.00	1.33	-13.04	89.82	30.39	251.50	0.5218	-865.0	-682.0
122	0.00	2.21	0.00	1.27	-10.87	89.52	30.09	255.50	0.5106	-843.0	-755.7
123	9.43	-116.00	5.47	-116.00	-13.91	89.70	30.26	249.82	0.5233	-984.4	999999
124	0.00	1.36	0.00	0.78	-12.52	89.33	29.90	252.26	0.5130	-914.0	-794.9
125	0.00	1.27	0.00	0.72	-8.74	88.55	29.12	259.43	0.4914	-847.0	-643.5
126	0.00	1.10	0.00	0.63	-12.80	88.95	29.52	251.55	0.5086	-877.0	-786.2
127	0.00	2.55	0.00	1.46	-12.39	88.79	29.36	252.28	0.5048	-891.0	-786.7
128	0.00	1.10	0.00	0.63	-12.99	88.73	29.30	251.09	0.5061	-744.0	-675.3
129	0.00	1.02	0.00	0.58	-12.73	88.28	28.85	251.37	0.4988	-761.0	-609.5
130	0.00	1.44	0.00	0.83	-15.52	88.49	29.06	246.19	0.5137	-656.0	-601.4
131	0.00	0.93	0.00	0.54	-15.80	88.22	28.79	245.50	0.5114	-707.0	-627.0
132	0.00	0.76	0.00	0.44	-15.44	88.06	28.63	246.07	0.5074	-633.0	-540.3
133	0.00	2.12	0.00	1.21	-13.86	87.60	28.17	248.80	0.4936	-691.0	-587.0
134	0.00	1.36	0.00	0.77	-13.48	87.51	28.08	249.51	0.4907	-889.0	-691.4
135	0.00	0.68	0.00	0.38	-15.25	86.51	27.08	245.43	0.4850	-538.0	-466.2
136	0.00	1.36	0.00	0.75	-12.01	84.71	25.28	250.95	0.4437	-859.0	-632.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
