SDO HMI 2014-01-10 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.40 | 77.45 | 11.12 | 40.23 | -13.08 | 44.29 | -15.14 | 121.99 | 0.3011 | -174.2 | -277.8 | |
|
previous
or next observation for the same group /

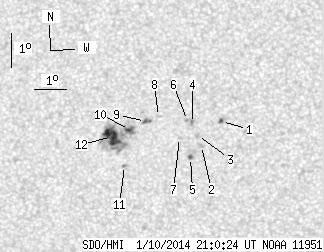

back to the solar disc SDO HMI 2014-01-10 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.93 | 2.21 | 0.48 | 1.13 | -12.73 | 47.13 | -12.30 | 126.12 | 0.2584 | 1033.5 | 772.6 | |
| 0.00 | 2.12 | 0.00 | 1.09 | -13.44 | 46.47 | -12.96 | 126.93 | 0.2741 | 934.0 | 744.3 | |
| 0.00 | 2.29 | 0.00 | 1.18 | -13.14 | 46.37 | -13.07 | 125.81 | 0.2727 | 848.0 | 691.2 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -12.78 | 46.23 | -13.20 | 124.43 | 0.2712 | 857.0 | 785.9 | |
| 0.76 | 1.78 | 0.39 | 0.92 | -13.79 | 46.11 | -13.32 | 127.25 | 0.2824 | 986.4 | 822.0 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -12.68 | 46.08 | -13.35 | 123.85 | 0.2725 | 894.0 | 700.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.19 | 45.80 | -13.63 | 124.87 | 0.2809 | 688.0 | 570.3 | |
| 0.00 | 2.12 | 0.00 | 1.10 | -12.55 | 45.19 | -14.25 | 121.82 | 0.2840 | -112.0 | -146.6 | |
| 1.02 | 3.91 | 0.53 | 2.02 | -12.69 | 44.77 | -14.66 | 121.55 | 0.2910 | -1050.2 | -824.6 | |
| 2.72 | 57.42 | 1.41 | 29.89 | -12.92 | 44.26 | -15.17 | 121.39 | 0.3002 | -1201.4 | -558.7 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -13.99 | 44.03 | -15.40 | 124.06 | 0.3125 | 827.0 | 714.8 | |
| 15.97 | -10.00 | 8.31 | -10.00 | -13.12 | 43.71 | -15.72 | 121.12 | 0.3096 | -1094.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
