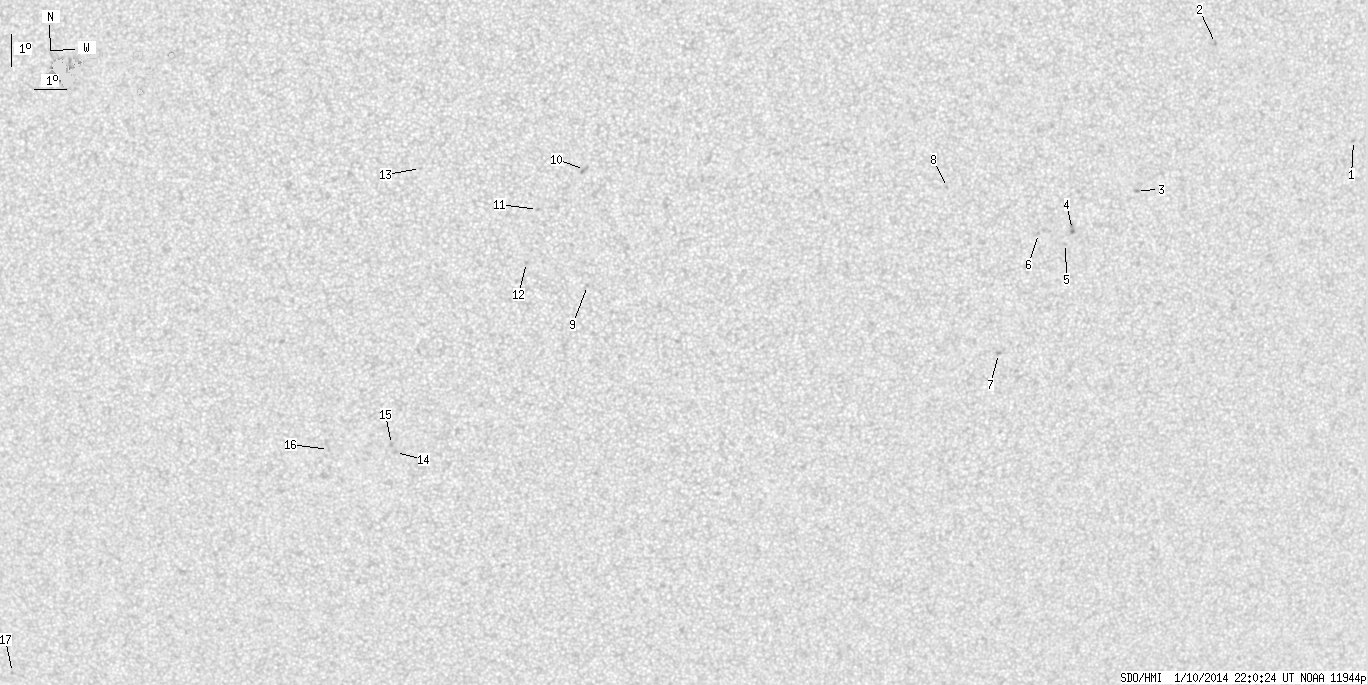

SDO HMI 2014-01-10 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.56 | 0.00 | 14.04 | -19.33 | 65.32 | 6.44 | 200.22 | 0.3394 | -256.6 | -128.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.85 | -15.01 | 83.99 | 25.11 | 244.49 | 0.4561 | 765.0 | 554.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -12.23 | 79.17 | 20.29 | 246.75 | 0.3705 | -915.0 | -750.2 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -16.69 | 77.01 | 18.14 | 233.43 | 0.3729 | 834.0 | 715.2 | |
| 0.00 | 3.65 | 0.00 | 1.94 | -17.91 | 75.06 | 16.18 | 227.72 | 0.3601 | 876.0 | 785.8 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -18.34 | 74.88 | 16.00 | 226.49 | 0.3623 | 639.0 | 587.6 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -18.05 | 73.98 | 15.10 | 225.53 | 0.3487 | 841.0 | 737.0 | |
| 0.00 | 1.87 | 0.00 | 1.00 | -21.74 | 73.03 | 14.15 | 216.68 | 0.3819 | 853.0 | 731.0 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -16.70 | 70.99 | 12.11 | 222.47 | 0.2989 | -793.0 | -688.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -19.75 | 59.84 | 0.96 | 183.34 | 0.2713 | -774.0 | -491.2 | |
| 0.00 | 3.31 | 0.00 | 1.68 | -16.23 | 59.73 | 0.85 | 183.88 | 0.2114 | -887.0 | -782.2 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -17.44 | 58.28 | -0.60 | 177.53 | 0.2318 | -879.0 | -707.8 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -19.05 | 57.93 | -0.95 | 176.53 | 0.2594 | -848.0 | -681.3 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -16.18 | 54.69 | -4.18 | 161.49 | 0.2218 | -986.0 | -777.7 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -24.91 | 53.62 | -5.26 | 166.84 | 0.3667 | -660.0 | -533.6 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -24.66 | 53.50 | -5.38 | 166.37 | 0.3631 | -947.0 | -783.5 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -24.80 | 51.44 | -7.44 | 161.62 | 0.3745 | -835.0 | -645.0 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -31.83 | 39.61 | -19.27 | 149.11 | 0.5482 | -647.0 | -573.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
