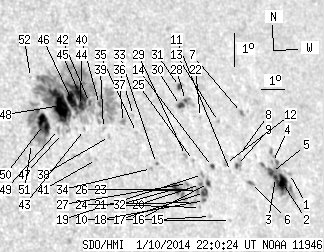

SDO HMI 2014-01-10 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.37 | 479.58 | 76.20 | 333.71 | 8.96 | 101.47 | 42.59 | 287.36 | 0.7018 | 185.3 | 90.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 1.40 | 7.92 | 108.58 | 49.70 | 283.64 | 0.7797 | 223.0 | 170.5 | |
| 10.53 | 50.54 | 8.22 | 39.35 | 7.63 | 108.21 | 49.33 | 283.37 | 0.7751 | -719.1 | -393.1 | |
| 1.27 | -2.00 | 0.99 | -2.00 | 7.76 | 107.91 | 49.03 | 283.62 | 0.7721 | -848.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.06 | 8.21 | 107.85 | 48.97 | 284.20 | 0.7725 | -514.0 | -435.3 | |
| 2.72 | -2.00 | 2.10 | -2.00 | 7.90 | 107.75 | 48.87 | 283.84 | 0.7708 | -779.5 | 999999 | |
| 1.10 | 2.80 | 0.84 | 2.12 | 7.52 | 106.75 | 47.87 | 283.62 | 0.7589 | -630.0 | -531.8 | |
| 0.76 | 2.38 | 0.58 | 1.82 | 9.66 | 106.71 | 47.83 | 286.38 | 0.7639 | -655.9 | -554.1 | |
| 0.00 | 0.59 | 0.00 | 0.45 | 8.37 | 106.39 | 47.51 | 284.82 | 0.7571 | -414.0 | -355.4 | |
| 1.02 | 6.29 | 0.77 | 4.73 | 8.03 | 106.21 | 47.33 | 284.44 | 0.7541 | -686.2 | -482.6 | |
| 0.00 | 0.51 | 0.00 | 0.38 | 6.35 | 105.71 | 46.83 | 282.38 | 0.7445 | -447.0 | -384.8 | |
| 0.00 | 0.59 | 0.00 | 0.44 | 7.83 | 105.91 | 47.03 | 284.27 | 0.7503 | -604.0 | -538.9 | |
| 0.00 | 2.21 | 0.00 | 1.64 | 8.06 | 105.73 | 46.85 | 284.62 | 0.7489 | -825.0 | -655.6 | |
| 0.00 | 0.93 | 0.00 | 0.70 | 9.33 | 105.63 | 46.75 | 286.29 | 0.7512 | -633.0 | -550.2 | |
| 1.19 | 2.29 | 0.88 | 1.69 | 7.94 | 105.14 | 46.27 | 284.64 | 0.7420 | -580.7 | -465.5 | |
| 0.00 | 1.19 | 0.00 | 0.86 | 6.43 | 104.86 | 45.98 | 282.71 | 0.7348 | -550.0 | -463.6 | |
| 1.61 | 3.48 | 1.18 | 2.55 | 7.42 | 104.90 | 46.02 | 284.02 | 0.7378 | -566.7 | -405.5 | |
| 3.74 | 10.96 | 2.72 | 7.96 | 7.14 | 104.69 | 45.81 | 283.71 | 0.7347 | -714.1 | -594.9 | |
| 0.68 | -17.00 | 0.49 | -17.00 | 6.90 | 104.66 | 45.78 | 283.39 | 0.7337 | -608.1 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.55 | 7.68 | 104.68 | 45.80 | 284.43 | 0.7359 | -519.0 | -424.0 | |
| 0.59 | 2.72 | 0.43 | 1.97 | 7.37 | 104.55 | 45.67 | 284.06 | 0.7337 | -802.3 | -613.2 | |
| 0.00 | 0.59 | 0.00 | 0.43 | 6.68 | 104.46 | 45.58 | 283.16 | 0.7309 | -556.0 | -493.9 | |
| 0.00 | 0.68 | 0.00 | 0.50 | 9.41 | 104.86 | 45.98 | 286.65 | 0.7429 | -729.0 | -637.9 | |
| 0.93 | -17.00 | 0.68 | -17.00 | 7.18 | 104.39 | 45.52 | 283.85 | 0.7314 | -852.6 | 999999 | |
| 0.00 | 3.74 | 0.00 | 2.69 | 6.81 | 104.18 | 45.30 | 283.42 | 0.7279 | -685.0 | -611.7 | |
| 0.00 | 1.02 | 0.00 | 0.74 | 8.08 | 104.35 | 45.47 | 285.07 | 0.7333 | -478.0 | -403.7 | |
| 0.00 | 2.29 | 0.00 | 1.65 | 7.20 | 104.18 | 45.31 | 283.94 | 0.7290 | -770.0 | -603.0 | |
| 0.00 | 1.78 | 0.00 | 1.28 | 7.37 | 104.00 | 45.12 | 284.23 | 0.7273 | -612.0 | -539.2 | |
| 0.85 | 10.96 | 0.62 | 8.01 | 9.89 | 104.30 | 45.42 | 287.48 | 0.7381 | 464.7 | 115.8 | |
| 0.00 | 1.78 | 0.00 | 1.29 | 8.22 | 104.03 | 45.15 | 285.35 | 0.7300 | -569.0 | -529.4 | |
| 2.63 | -28.00 | 1.92 | -28.00 | 9.73 | 104.06 | 45.18 | 287.34 | 0.7348 | 710.3 | 999999 | |
| 1.78 | 3.48 | 1.30 | 2.54 | 10.31 | 104.12 | 45.24 | 288.08 | 0.7373 | 583.3 | 455.9 | |
| 4.25 | 15.97 | 3.03 | 11.39 | 7.20 | 103.51 | 44.63 | 284.14 | 0.7211 | -849.8 | -651.9 | |
| 0.00 | 1.19 | 0.00 | 0.84 | 7.91 | 102.77 | 43.89 | 285.35 | 0.7145 | -571.0 | -549.9 | |
| 0.00 | 1.02 | 0.00 | 0.72 | 7.75 | 102.54 | 43.66 | 285.20 | 0.7113 | -719.0 | -656.6 | |
| 0.00 | 1.19 | 0.00 | 0.83 | 8.81 | 102.07 | 43.19 | 286.82 | 0.7090 | -605.0 | -458.3 | |
| 0.00 | 1.10 | 0.00 | 0.77 | 9.32 | 102.03 | 43.15 | 287.53 | 0.7101 | -592.0 | -448.1 | |
| 0.00 | 2.72 | 0.00 | 1.89 | 9.09 | 101.58 | 42.70 | 287.38 | 0.7041 | -286.0 | -225.5 | |
| 0.00 | 1.70 | 0.00 | 1.17 | 8.64 | 100.95 | 42.07 | 286.99 | 0.6950 | 391.0 | 311.6 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 8.87 | 100.74 | 41.86 | 287.39 | 0.6933 | 469.0 | 377.7 | |
| 0.93 | 45.45 | 0.64 | 31.36 | 9.59 | 100.69 | 41.81 | 288.42 | 0.6952 | 531.2 | 60.1 | |
| 0.00 | 0.76 | 0.00 | 0.52 | 7.91 | 100.33 | 41.45 | 286.20 | 0.6852 | 478.0 | 367.0 | |
| 0.93 | 226.22 | 0.64 | 152.69 | 9.63 | 100.29 | 41.41 | 288.63 | 0.6906 | 550.6 | 331.3 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 8.80 | 99.97 | 41.09 | 287.60 | 0.6838 | 497.0 | 426.8 | |
| 2.21 | -42.00 | 1.50 | -42.00 | 9.52 | 99.92 | 41.04 | 288.64 | 0.6857 | 748.3 | 999999 | |
| 10.53 | -42.00 | 7.16 | -42.00 | 9.89 | 99.93 | 41.05 | 289.14 | 0.6872 | 718.1 | 999999 | |
| 9.00 | -42.00 | 6.08 | -42.00 | 9.69 | 99.58 | 40.71 | 289.01 | 0.6823 | 842.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 8.64 | 99.08 | 40.20 | 287.72 | 0.6723 | 178.0 | 199.9 | |
| 33.30 | -42.00 | 22.31 | -42.00 | 9.49 | 99.12 | 40.24 | 288.92 | 0.6759 | 980.4 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.36 | 8.75 | 98.94 | 40.06 | 287.94 | 0.6710 | 743.0 | 572.6 | |
| 16.82 | 55.47 | 11.12 | 36.56 | 8.88 | 98.37 | 39.49 | 288.36 | 0.6645 | 952.0 | 561.3 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 8.28 | 97.84 | 38.96 | 287.72 | 0.6555 | 226.0 | 191.3 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 10.29 | 98.07 | 39.19 | 290.53 | 0.6662 | -461.0 | -378.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
