SDO HMI 2014-01-10 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.88 | 395.17 | 42.38 | 281.00 | -16.13 | 13.95 | -44.93 | 108.61 | 0.7181 | 959.1 | 282.0 | |
|
previous
or next observation for the same group /

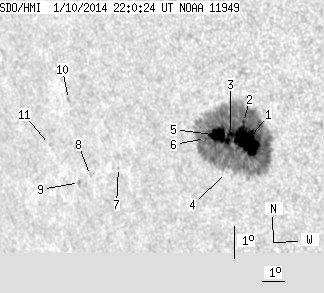

back to the solar disc SDO HMI 2014-01-10 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.97 | 388.21 | 26.70 | 275.41 | -16.22 | 14.46 | -44.42 | 108.85 | 0.7125 | 1266.1 | 297.7 | |
| 1.44 | -1.00 | 1.01 | -1.00 | -15.65 | 14.49 | -44.39 | 108.06 | 0.7109 | 1003.8 | 999999 | |
| 1.95 | -1.00 | 1.39 | -1.00 | -15.98 | 13.83 | -45.05 | 108.37 | 0.7192 | 1051.7 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -17.11 | 13.31 | -45.56 | 109.78 | 0.7276 | 314.0 | 238.6 | |
| 17.50 | -1.00 | 12.54 | -1.00 | -15.98 | 13.35 | -45.53 | 108.26 | 0.7248 | 961.1 | 999999 | |
| 1.02 | -1.00 | 0.74 | -1.00 | -16.04 | 12.71 | -46.17 | 108.20 | 0.7321 | 285.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.80 | -16.70 | 8.46 | -50.42 | 108.21 | 0.7795 | -436.0 | -396.8 | |
| 0.00 | 1.02 | 0.00 | 0.83 | -16.86 | 7.01 | -51.87 | 108.17 | 0.7945 | -425.0 | -400.2 | |
| 0.00 | 1.78 | 0.00 | 1.47 | -17.04 | 6.38 | -52.49 | 108.28 | 0.8011 | -584.0 | -458.9 | |
| 0.00 | 1.44 | 0.00 | 1.17 | -14.54 | 6.76 | -52.12 | 105.22 | 0.7941 | -619.0 | -574.8 | |
| 0.00 | 0.85 | 0.00 | 0.71 | -15.82 | 5.32 | -53.55 | 106.62 | 0.8099 | -395.0 | -318.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
