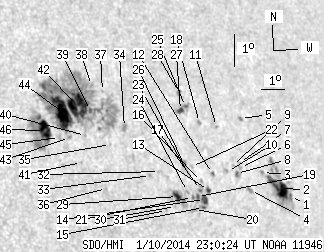

SDO HMI 2014-01-10 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.11 | 443.32 | 81.94 | 311.82 | 8.93 | 101.52 | 43.19 | 287.11 | 0.7087 | 153.4 | 104.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.93 | 54.88 | 0.74 | 43.31 | 7.43 | 108.61 | 50.28 | 282.89 | 0.7848 | -201.1 | -272.1 | |
| 19.71 | -1.00 | 15.54 | -1.00 | 7.65 | 108.13 | 49.80 | 283.28 | 0.7802 | -683.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.06 | 8.09 | 107.42 | 49.09 | 284.03 | 0.7736 | -665.0 | -553.5 | |
| 0.00 | 3.06 | 0.00 | 2.34 | 7.51 | 106.79 | 48.46 | 283.46 | 0.7653 | -578.0 | -490.7 | |
| 0.59 | 1.95 | 0.46 | 1.51 | 9.68 | 106.71 | 48.38 | 286.25 | 0.7699 | -608.6 | -481.6 | |
| 0.00 | 1.70 | 0.00 | 1.30 | 8.19 | 106.44 | 48.11 | 284.42 | 0.7632 | -473.0 | -431.8 | |
| 0.00 | 1.02 | 0.00 | 0.78 | 8.34 | 106.42 | 48.09 | 284.62 | 0.7634 | -473.0 | -403.0 | |
| 0.59 | 3.23 | 0.45 | 2.45 | 8.00 | 106.23 | 47.91 | 284.23 | 0.7604 | -724.0 | -554.0 | |
| 0.00 | 0.93 | 0.00 | 0.71 | 8.23 | 106.09 | 47.76 | 284.57 | 0.7595 | -563.0 | -510.7 | |
| 0.00 | 0.85 | 0.00 | 0.64 | 8.03 | 105.84 | 47.51 | 284.40 | 0.7562 | -690.0 | -621.0 | |
| 0.00 | 1.19 | 0.00 | 0.90 | 9.38 | 105.58 | 47.25 | 286.21 | 0.7569 | -616.0 | -524.3 | |
| 0.59 | 1.61 | 0.44 | 1.20 | 7.94 | 105.16 | 46.84 | 284.47 | 0.7484 | -674.9 | -614.2 | |
| 1.53 | 2.72 | 1.13 | 2.01 | 7.41 | 104.91 | 46.59 | 283.85 | 0.7443 | -534.9 | -417.7 | |
| 3.99 | 11.55 | 2.93 | 8.47 | 7.13 | 104.70 | 46.37 | 283.54 | 0.7412 | -693.6 | -582.2 | |
| 0.85 | -14.00 | 0.62 | -14.00 | 6.89 | 104.63 | 46.30 | 283.24 | 0.7397 | -594.0 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.81 | 7.67 | 104.65 | 46.32 | 284.27 | 0.7419 | -512.0 | -443.4 | |
| 0.00 | 2.29 | 0.00 | 1.68 | 7.43 | 104.57 | 46.24 | 283.97 | 0.7404 | -800.0 | -678.6 | |
| 0.00 | 1.53 | 0.00 | 1.14 | 9.46 | 104.85 | 46.52 | 286.55 | 0.7490 | -776.0 | -657.1 | |
| 1.36 | -14.00 | 0.99 | -14.00 | 7.21 | 104.41 | 46.08 | 283.73 | 0.7380 | -796.9 | 999999 | |
| 0.00 | 2.80 | 0.00 | 2.04 | 6.81 | 104.23 | 45.90 | 283.25 | 0.7349 | -682.0 | -618.2 | |
| 0.51 | 1.61 | 0.37 | 1.18 | 7.17 | 104.19 | 45.86 | 283.74 | 0.7354 | -695.5 | -585.2 | |
| 0.00 | 1.27 | 0.00 | 0.93 | 8.10 | 104.28 | 45.95 | 284.95 | 0.7389 | -429.0 | -350.3 | |
| 0.00 | 1.02 | 0.00 | 0.74 | 7.88 | 104.12 | 45.79 | 284.71 | 0.7364 | -449.0 | -395.9 | |
| 0.00 | 1.44 | 0.00 | 1.05 | 7.34 | 104.00 | 45.67 | 284.02 | 0.7336 | -620.0 | -565.4 | |
| 0.85 | 7.22 | 0.63 | 5.32 | 9.92 | 104.32 | 46.00 | 287.32 | 0.7445 | 426.0 | 430.7 | |
| 0.00 | 4.84 | 0.00 | 3.53 | 8.15 | 103.99 | 45.66 | 285.10 | 0.7356 | -580.0 | -476.2 | |
| 2.29 | -25.00 | 1.69 | -25.00 | 9.78 | 104.08 | 45.76 | 287.22 | 0.7415 | 715.5 | 999999 | |
| 0.68 | 2.63 | 0.50 | 1.94 | 10.33 | 104.14 | 45.81 | 287.92 | 0.7438 | 671.0 | 531.9 | |
| 3.91 | 12.49 | 2.81 | 9.00 | 7.16 | 103.55 | 45.22 | 283.92 | 0.7280 | -833.8 | -678.2 | |
| 0.00 | 0.68 | 0.00 | 0.49 | 6.86 | 103.43 | 45.10 | 283.54 | 0.7257 | -548.0 | -468.9 | |
| 0.00 | 1.02 | 0.00 | 0.73 | 6.72 | 103.03 | 44.70 | 283.47 | 0.7207 | -592.0 | -536.8 | |
| 0.00 | 1.87 | 0.00 | 1.33 | 7.88 | 102.89 | 44.56 | 285.09 | 0.7222 | -679.0 | -531.6 | |
| 0.00 | 1.44 | 0.00 | 1.02 | 7.74 | 102.49 | 44.16 | 285.03 | 0.7172 | -711.0 | -610.1 | |
| 0.00 | 3.82 | 0.00 | 2.68 | 9.14 | 101.62 | 43.29 | 287.24 | 0.7112 | -229.0 | -219.9 | |
| 0.00 | 0.59 | 0.00 | 0.41 | 8.60 | 100.97 | 42.64 | 286.73 | 0.7017 | 378.0 | 310.0 | |
| 0.00 | 0.93 | 0.00 | 0.64 | 7.26 | 100.63 | 42.30 | 284.98 | 0.6935 | -583.0 | -454.2 | |
| 0.00 | 0.85 | 0.00 | 0.59 | 10.20 | 100.89 | 42.56 | 288.96 | 0.7062 | 236.0 | 201.1 | |
| 0.00 | 1.53 | 0.00 | 1.06 | 10.36 | 100.47 | 42.14 | 289.35 | 0.7019 | -137.0 | -85.7 | |
| 1.10 | 244.84 | 0.76 | 167.27 | 9.59 | 100.30 | 41.98 | 288.36 | 0.6972 | 570.3 | 281.6 | |
| 0.00 | 0.76 | 0.00 | 0.52 | 8.82 | 99.99 | 41.66 | 287.41 | 0.6908 | 479.0 | 375.0 | |
| 0.00 | 0.59 | 0.00 | 0.40 | 8.00 | 99.72 | 41.39 | 286.35 | 0.6847 | 577.0 | 522.0 | |
| 29.82 | -39.00 | 20.39 | -39.00 | 9.72 | 99.80 | 41.47 | 288.74 | 0.6917 | 744.4 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.15 | 8.73 | 99.34 | 41.01 | 287.54 | 0.6826 | 541.0 | 399.3 | |
| 31.26 | -39.00 | 21.13 | -39.00 | 9.48 | 99.17 | 40.84 | 288.66 | 0.6832 | 970.9 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.65 | 8.71 | 98.94 | 40.61 | 287.67 | 0.6776 | 635.0 | 510.6 | |
| 15.55 | 53.95 | 10.36 | 35.84 | 8.90 | 98.38 | 40.05 | 288.17 | 0.6714 | 951.1 | 581.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
