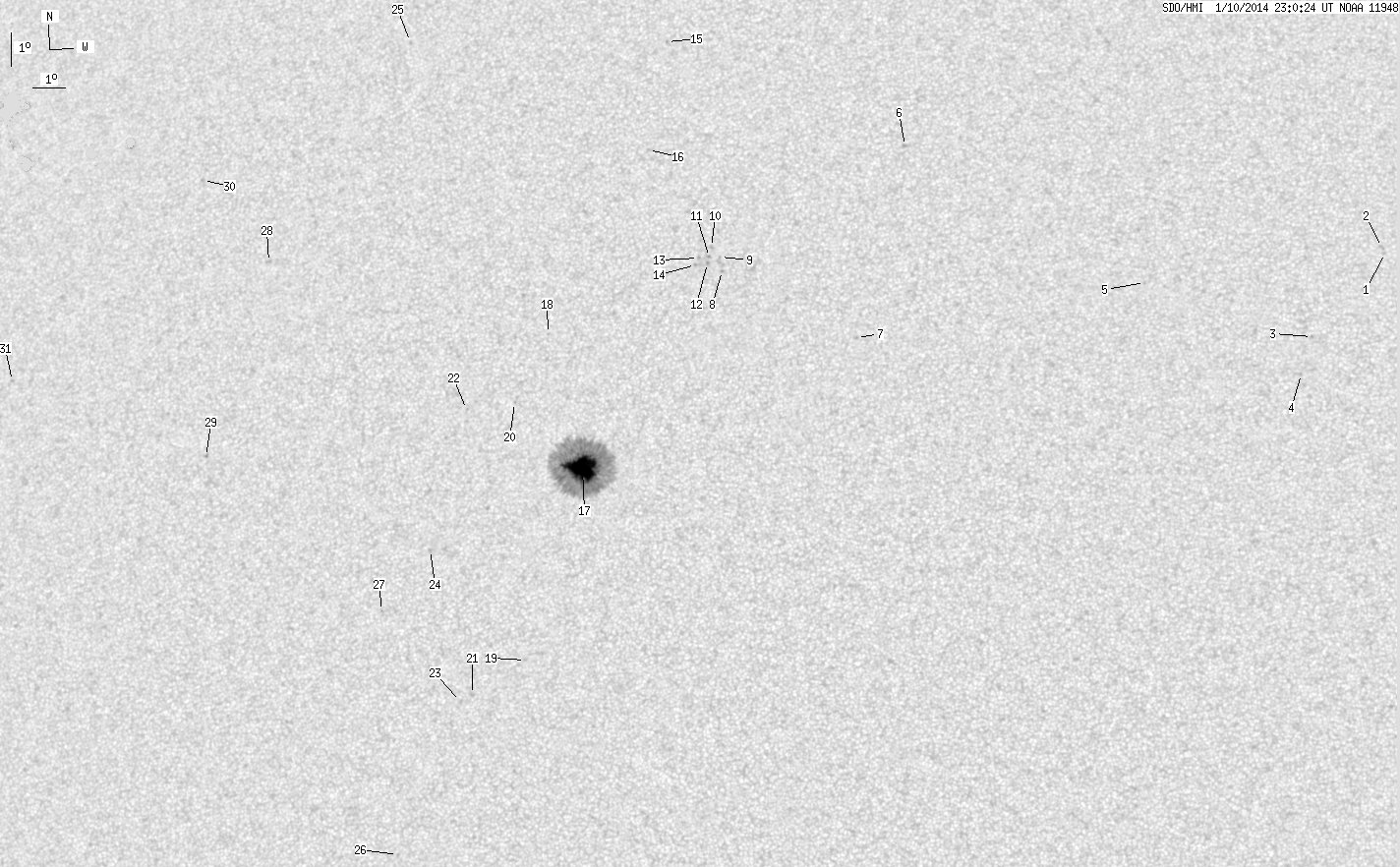

SDO HMI 2014-01-10 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.91 | 334.48 | 24.77 | 173.65 | 5.92 | 44.96 | -13.37 | 78.37 | 0.2966 | -850.2 | -400.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-10 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.76 | 11.97 | 69.27 | 10.94 | 326.05 | 0.3340 | -786.0 | -540.3 | |
| 0.00 | 2.12 | 0.00 | 1.12 | 12.15 | 69.18 | 10.86 | 326.57 | 0.3357 | -709.0 | -580.0 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 9.35 | 66.93 | 8.60 | 327.56 | 0.2763 | -829.0 | -645.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.20 | 66.57 | 8.24 | 326.28 | 0.2567 | -829.0 | -695.9 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 10.99 | 61.84 | 3.51 | 347.00 | 0.2686 | -729.0 | -580.1 | |
| 0.00 | 1.87 | 0.00 | 0.98 | 15.29 | 54.45 | -3.88 | 11.11 | 0.3400 | -859.0 | -635.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 9.31 | 53.06 | -5.27 | 21.34 | 0.2501 | -979.0 | -695.9 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 11.42 | 48.88 | -9.45 | 31.09 | 0.3131 | -895.0 | -710.9 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 11.85 | 48.80 | -9.53 | 30.58 | 0.3199 | -842.0 | -650.9 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 12.16 | 48.51 | -9.81 | 30.82 | 0.3267 | -812.0 | -637.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.86 | 48.46 | -9.87 | 31.45 | 0.3228 | -871.0 | -751.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.67 | 48.41 | -9.92 | 31.90 | 0.3207 | -1084.0 | -873.7 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 11.83 | 48.13 | -10.20 | 32.35 | 0.3254 | -808.0 | -689.7 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 11.62 | 48.04 | -10.28 | 32.93 | 0.3232 | -815.0 | -638.4 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 18.73 | 46.77 | -11.55 | 26.12 | 0.4328 | -788.0 | -564.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 15.26 | 46.39 | -11.94 | 31.13 | 0.3876 | -709.0 | -460.5 | |
| 47.91 | 293.35 | 24.77 | 151.65 | 5.42 | 44.73 | -13.60 | 55.05 | 0.2870 | -1495.1 | -435.0 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 9.56 | 43.52 | -14.81 | 47.11 | 0.3456 | -716.0 | -562.9 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -0.34 | 43.02 | -15.31 | 76.50 | 0.2728 | 798.0 | 600.5 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 7.47 | 42.55 | -15.78 | 53.68 | 0.3361 | 755.0 | 610.0 | |
| 0.00 | 2.12 | 0.00 | 1.10 | -1.33 | 41.35 | -16.98 | 81.15 | 0.2967 | 723.0 | 586.8 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 7.29 | 41.04 | -17.29 | 56.57 | 0.3548 | -763.0 | -530.7 | |
| 0.00 | 2.12 | 0.00 | 1.10 | -1.53 | 40.98 | -17.35 | 82.01 | 0.3024 | 607.0 | 472.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 3.05 | 40.01 | -18.32 | 68.91 | 0.3380 | 891.0 | 724.5 | |
| 0.00 | 1.87 | 0.00 | 1.07 | 18.91 | 38.30 | -20.03 | 39.93 | 0.5069 | 615.0 | 503.0 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -6.08 | 38.88 | -19.45 | 96.60 | 0.3348 | 822.0 | 558.9 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 1.25 | 38.50 | -19.83 | 75.26 | 0.3523 | 811.0 | 626.2 | |
| 0.00 | 2.21 | 0.00 | 1.25 | 12.03 | 34.30 | -24.03 | 55.67 | 0.4842 | 570.0 | 498.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 6.09 | 32.63 | -25.70 | 68.47 | 0.4655 | -951.0 | -773.9 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 14.67 | 31.76 | -26.57 | 53.97 | 0.5372 | 398.0 | 410.0 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 8.66 | 25.72 | -32.61 | 68.49 | 0.5748 | -748.0 | -589.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
