SDO HMI 2014-01-10 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.70 | 95.72 | 18.23 | 60.95 | 16.53 | 25.02 | -33.31 | 57.02 | 0.6296 | 185.1 | 78.4 | |
|
previous
or next observation for the same group /

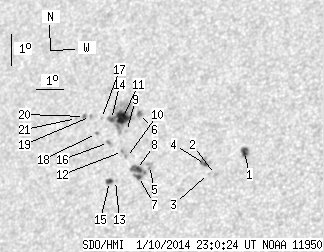

back to the solar disc SDO HMI 2014-01-10 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.74 | 5.35 | 2.27 | 3.25 | 15.96 | 29.01 | -29.32 | 54.62 | 0.5797 | -941.8 | -735.1 | |
| 0.00 | 2.21 | 0.00 | 1.35 | 15.27 | 28.09 | -30.24 | 56.41 | 0.5854 | -829.0 | -652.0 | |
| 0.00 | 0.59 | 0.00 | 0.36 | 15.31 | 27.84 | -30.49 | 56.56 | 0.5887 | -800.0 | -680.6 | |
| 0.93 | 6.54 | 0.57 | 4.02 | 15.60 | 27.69 | -30.64 | 56.27 | 0.5925 | -953.9 | -645.8 | |
| 0.00 | 3.57 | 0.00 | 2.24 | 15.65 | 25.66 | -32.67 | 57.80 | 0.6165 | 200.0 | 112.1 | |
| 1.10 | 48.51 | 0.71 | 31.26 | 17.31 | 24.97 | -33.36 | 56.00 | 0.6355 | 846.3 | 351.5 | |
| 2.04 | 13.42 | 1.28 | 8.45 | 15.32 | 25.32 | -33.01 | 58.53 | 0.6184 | -828.6 | -666.8 | |
| 4.50 | -7.00 | 2.84 | -7.00 | 15.55 | 25.20 | -33.13 | 58.29 | 0.6212 | -760.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 16.76 | 24.60 | -33.73 | 57.03 | 0.6360 | 672.0 | 641.8 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 15.94 | 24.76 | -33.57 | 58.06 | 0.6288 | 496.0 | 425.3 | |
| 11.38 | -6.00 | 7.33 | -6.00 | 17.21 | 24.36 | -33.97 | 56.59 | 0.6417 | 986.4 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 16.14 | 24.58 | -33.75 | 57.92 | 0.6322 | 794.0 | 653.4 | |
| 0.00 | 1.78 | 0.00 | 1.13 | 15.23 | 24.49 | -33.84 | 59.25 | 0.6275 | -603.0 | -465.6 | |
| 1.53 | -6.00 | 0.99 | -6.00 | 17.17 | 23.96 | -34.37 | 56.94 | 0.6459 | 649.4 | 999999 | |
| 2.29 | 3.74 | 1.46 | 2.38 | 15.21 | 24.27 | -34.06 | 59.44 | 0.6299 | -747.9 | -546.8 | |
| 0.51 | 1.44 | 0.33 | 0.93 | 16.44 | 24.00 | -34.33 | 57.91 | 0.6408 | 725.3 | 660.5 | |
| 0.00 | 0.59 | 0.00 | 0.39 | 17.22 | 23.57 | -34.76 | 57.15 | 0.6505 | 316.0 | 246.7 | |
| 0.00 | 1.10 | 0.00 | 0.72 | 16.75 | 23.48 | -34.84 | 57.85 | 0.6485 | 792.0 | 692.0 | |
| 0.00 | 1.19 | 0.00 | 0.78 | 17.30 | 23.14 | -35.19 | 57.34 | 0.6558 | 713.0 | 592.1 | |
| 0.68 | 2.04 | 0.45 | 1.34 | 17.31 | 22.91 | -35.42 | 57.49 | 0.6585 | 750.8 | 566.1 | |
| 0.00 | 0.93 | 0.00 | 0.62 | 17.26 | 22.62 | -35.71 | 57.76 | 0.6614 | 496.0 | 427.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
