SDO HMI 2014-01-11 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.95 | 72.21 | 8.24 | 37.24 | -13.01 | 44.17 | -13.60 | 124.39 | 0.2789 | -507.8 | -430.0 | |
|
previous
or next observation for the same group /

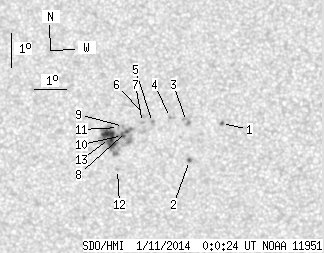

back to the solar disc SDO HMI 2014-01-11 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.42 | 1.36 | 0.22 | 0.69 | -12.72 | 47.18 | -10.60 | 130.01 | 0.2354 | 859.0 | 703.2 | |
| 0.59 | 1.70 | 0.30 | 0.87 | -13.81 | 46.14 | -11.64 | 130.88 | 0.2604 | 926.7 | 746.9 | |
| 0.00 | 4.50 | 0.00 | 2.30 | -12.64 | 46.10 | -11.68 | 127.14 | 0.2489 | 477.0 | 772.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -12.52 | 45.61 | -12.16 | 125.64 | 0.2543 | 799.0 | 585.1 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -12.66 | 45.05 | -12.73 | 124.92 | 0.2634 | -924.0 | -820.3 | |
| 0.00 | 2.72 | 0.00 | 1.40 | -12.45 | 44.84 | -12.93 | 123.83 | 0.2643 | -766.0 | -664.4 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -12.65 | 44.74 | -13.04 | 124.29 | 0.2676 | -928.0 | -738.4 | |
| 0.76 | 53.70 | 0.39 | 27.73 | -12.91 | 44.23 | -13.55 | 124.11 | 0.2771 | -1284.4 | -629.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -12.76 | 44.14 | -13.63 | 123.49 | 0.2769 | -850.0 | -720.1 | |
| 1.10 | -8.00 | 0.57 | -8.00 | -13.03 | 44.10 | -13.68 | 124.23 | 0.2799 | -1204.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -12.79 | 43.99 | -13.79 | 123.29 | 0.2794 | -731.0 | -578.5 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -14.04 | 43.88 | -13.90 | 126.79 | 0.2923 | 799.0 | 631.7 | |
| 13.08 | -8.00 | 6.76 | -8.00 | -13.11 | 43.69 | -14.09 | 123.73 | 0.2864 | -1098.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
