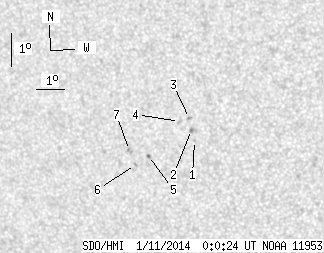

SDO HMI 2014-01-11 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 10.53 | 0.30 | 6.12 | -18.06 | 28.92 | -28.85 | 118.52 | 0.5242 | 134.3 | 196.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.76 | 0.00 | 0.44 | -18.18 | 29.87 | -27.91 | 119.41 | 0.5126 | 677.0 | 599.9 | |
| 0.00 | 1.87 | 0.00 | 1.08 | -17.84 | 29.82 | -27.95 | 118.77 | 0.5112 | 883.0 | 809.9 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -17.50 | 29.81 | -27.97 | 118.16 | 0.5094 | 907.0 | 760.2 | |
| 0.00 | 2.21 | 0.00 | 1.27 | -17.58 | 29.45 | -28.33 | 118.04 | 0.5146 | 777.0 | 539.1 | |
| 0.51 | 1.36 | 0.30 | 0.80 | -18.57 | 28.17 | -29.61 | 118.89 | 0.5371 | -838.7 | -735.8 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -18.83 | 27.65 | -30.13 | 118.97 | 0.5452 | -504.0 | -389.5 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -18.40 | 27.52 | -30.26 | 118.15 | 0.5445 | -669.0 | -744.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
