SDO HMI 2014-01-11 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.38 | 89.30 | 15.12 | 55.57 | 16.44 | 25.39 | -31.30 | 55.53 | 0.6061 | 68.9 | 48.9 | |
|
previous
or next observation for the same group /

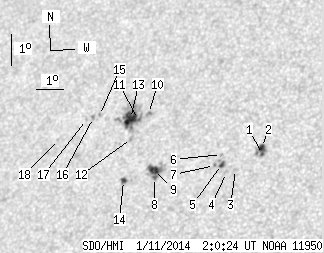

back to the solar disc SDO HMI 2014-01-11 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.68 | 9.77 | 0.40 | 5.83 | 15.84 | 29.22 | -27.46 | 53.03 | 0.5574 | -987.9 | -719.7 | |
| 2.46 | -1.00 | 1.47 | -1.00 | 16.06 | 29.16 | -27.53 | 52.77 | 0.5600 | -905.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 15.40 | 28.35 | -28.33 | 54.51 | 0.5641 | -616.0 | -437.9 | |
| 0.00 | 1.70 | 0.00 | 1.02 | 15.32 | 28.05 | -28.63 | 54.91 | 0.5670 | -707.0 | -642.5 | |
| 1.53 | 3.99 | 0.92 | 2.41 | 15.58 | 27.84 | -28.85 | 54.72 | 0.5715 | -889.9 | -715.9 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 15.89 | 27.79 | -28.89 | 54.30 | 0.5745 | -579.0 | -483.4 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 15.56 | 27.60 | -29.09 | 54.97 | 0.5741 | -592.0 | -458.8 | |
| 0.85 | 17.93 | 0.52 | 11.05 | 15.26 | 25.52 | -31.17 | 57.17 | 0.5964 | -882.2 | -388.8 | |
| 5.69 | -8.00 | 3.51 | -8.00 | 15.48 | 25.44 | -31.24 | 56.90 | 0.5988 | -878.1 | 999999 | |
| 0.00 | 2.55 | 0.00 | 1.60 | 17.29 | 24.94 | -31.74 | 54.74 | 0.6175 | 916.0 | 697.8 | |
| 0.51 | 40.20 | 0.32 | 25.42 | 17.12 | 24.61 | -32.07 | 55.25 | 0.6199 | 967.8 | 387.8 | |
| 0.00 | 2.04 | 0.00 | 1.28 | 16.53 | 24.46 | -32.22 | 56.19 | 0.6174 | 860.0 | 741.4 | |
| 10.79 | -11.00 | 6.82 | -11.00 | 17.16 | 24.31 | -32.38 | 55.43 | 0.6236 | 958.6 | 999999 | |
| 1.87 | 3.06 | 1.16 | 1.91 | 15.21 | 24.41 | -32.27 | 58.11 | 0.6091 | -755.0 | -551.9 | |
| 0.00 | 0.93 | 0.00 | 0.60 | 17.31 | 23.13 | -33.55 | 56.13 | 0.6378 | 744.0 | 596.3 | |
| 0.00 | 1.44 | 0.00 | 0.93 | 17.25 | 22.92 | -33.76 | 56.36 | 0.6398 | 784.0 | 694.6 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 17.20 | 22.67 | -34.01 | 56.62 | 0.6422 | 550.0 | 444.4 | |
| 0.00 | 0.93 | 0.00 | 0.61 | 16.61 | 21.75 | -34.94 | 58.08 | 0.6489 | 644.0 | 587.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
