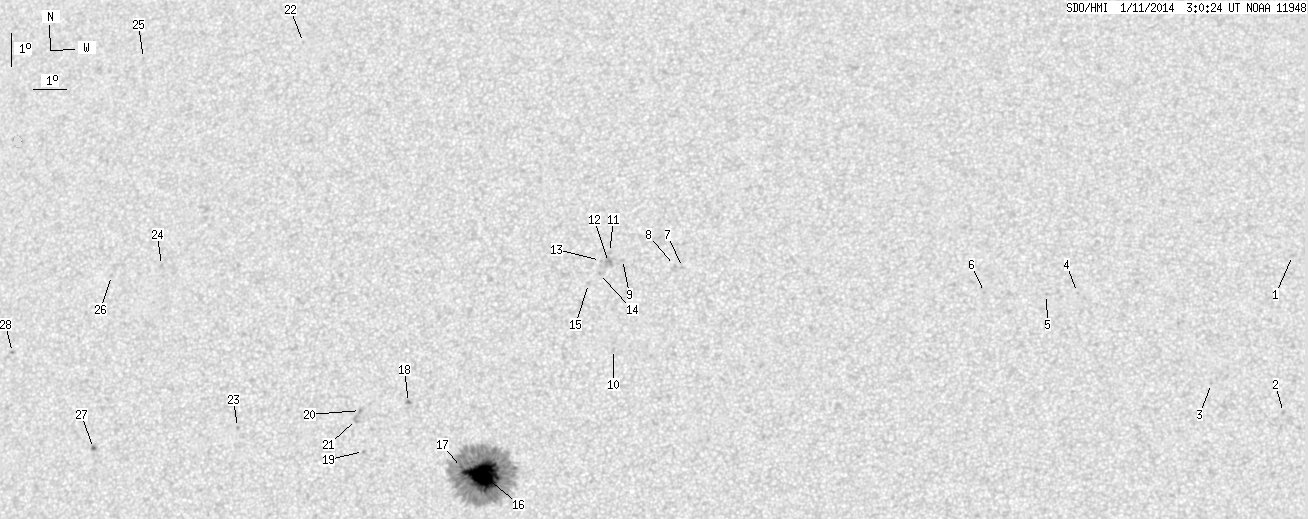

SDO HMI 2014-01-11 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.21 | 344.75 | 31.90 | 177.25 | 5.98 | 45.02 | -11.11 | 72.48 | 0.2664 | -918.5 | -377.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | 12.06 | 69.18 | 13.04 | 321.49 | 0.3560 | -806.0 | -615.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.29 | 68.71 | 12.57 | 312.31 | 0.2933 | -850.0 | -687.0 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 8.13 | 66.55 | 10.41 | 319.78 | 0.2783 | -888.0 | -750.2 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 10.86 | 62.57 | 6.43 | 336.94 | 0.2821 | -678.0 | -482.2 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 10.79 | 61.63 | 5.50 | 339.92 | 0.2753 | -421.0 | -298.1 | |
| 0.00 | 0.93 | 0.00 | 0.48 | 10.84 | 59.77 | 3.63 | 346.47 | 0.2671 | -849.0 | -700.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 11.63 | 50.68 | -5.46 | 18.93 | 0.2884 | -834.0 | -619.0 | |
| 0.00 | 0.93 | 0.00 | 0.48 | 11.69 | 50.44 | -5.70 | 19.64 | 0.2907 | -729.0 | -588.1 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 11.89 | 48.86 | -7.28 | 24.22 | 0.3037 | -658.0 | -595.6 | |
| 0.00 | 0.93 | 0.00 | 0.48 | 9.15 | 48.65 | -7.49 | 29.29 | 0.2642 | -896.0 | -711.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 12.11 | 48.46 | -7.68 | 25.07 | 0.3098 | -671.0 | -507.3 | |
| 0.00 | 6.54 | 0.00 | 3.40 | 11.80 | 48.43 | -7.70 | 25.57 | 0.3053 | -886.0 | -779.6 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 11.87 | 48.19 | -7.95 | 26.18 | 0.3080 | -625.0 | -508.4 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 11.47 | 48.17 | -7.97 | 26.83 | 0.3023 | -902.0 | -695.0 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 11.17 | 47.84 | -8.29 | 28.25 | 0.3003 | -720.0 | -528.8 | |
| 59.92 | 305.88 | 30.70 | 156.74 | 5.41 | 44.80 | -11.33 | 49.91 | 0.2569 | -1451.5 | -382.5 | |
| 1.70 | -16.00 | 0.87 | -16.00 | 5.66 | 44.13 | -12.00 | 50.80 | 0.2683 | -745.3 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 7.64 | 42.47 | -13.67 | 49.18 | 0.3108 | 1019.0 | 864.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 6.20 | 41.13 | -15.00 | 55.47 | 0.3138 | 917.0 | 642.9 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 7.43 | 41.00 | -15.13 | 52.56 | 0.3275 | -859.0 | -720.2 | |
| 0.00 | 3.74 | 0.00 | 1.96 | 7.16 | 40.89 | -15.25 | 53.43 | 0.3263 | -780.0 | -741.0 | |
| 0.00 | 0.93 | 0.00 | 0.53 | 18.86 | 38.41 | -17.72 | 36.61 | 0.4850 | 603.0 | 523.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 7.01 | 37.19 | -18.94 | 59.53 | 0.3754 | 825.0 | 671.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 11.99 | 34.46 | -21.67 | 52.92 | 0.4547 | 799.0 | 652.7 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 18.50 | 33.14 | -22.99 | 44.30 | 0.5325 | 622.0 | 529.9 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 11.73 | 32.85 | -23.28 | 55.31 | 0.4726 | 684.0 | 526.3 | |
| 0.59 | 1.95 | 0.33 | 1.08 | 6.50 | 32.63 | -23.51 | 65.71 | 0.4367 | -878.6 | -761.4 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 9.49 | 29.77 | -26.36 | 62.47 | 0.4960 | 779.0 | 632.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
