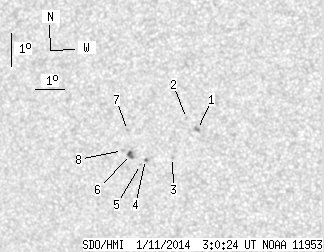

SDO HMI 2014-01-11 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.46 | 12.22 | 1.43 | 7.04 | -18.39 | 28.31 | -27.83 | 119.85 | 0.5126 | -176.5 | -6.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.35 | -17.92 | 29.97 | -26.16 | 120.30 | 0.4879 | 1043.0 | 827.6 | |
| 0.00 | 0.76 | 0.00 | 0.43 | -17.57 | 29.65 | -26.49 | 119.39 | 0.4900 | 805.0 | 646.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -18.74 | 28.96 | -27.17 | 120.97 | 0.5064 | 723.0 | 524.0 | |
| 0.34 | 1.19 | 0.20 | 0.69 | -18.77 | 28.01 | -28.13 | 120.27 | 0.5189 | -858.8 | -811.5 | |
| 0.00 | 0.76 | 0.00 | 0.44 | -18.92 | 27.80 | -28.33 | 120.38 | 0.5225 | -748.0 | -598.2 | |
| 2.12 | 3.91 | 1.23 | 2.27 | -18.60 | 27.51 | -28.63 | 119.60 | 0.5244 | -802.3 | -581.2 | |
| 0.00 | 0.93 | 0.00 | 0.54 | -17.87 | 27.54 | -28.60 | 118.33 | 0.5197 | -653.0 | -476.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -18.47 | 27.25 | -28.89 | 119.18 | 0.5269 | -641.0 | -491.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
